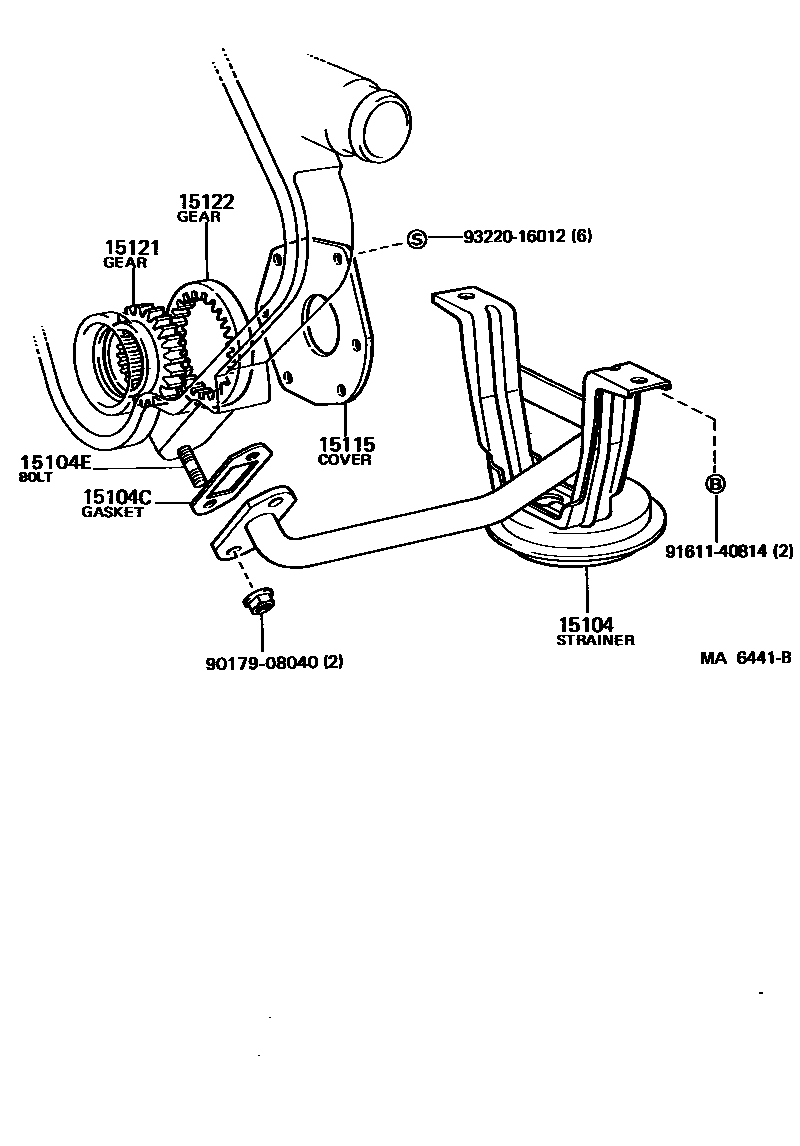

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-54023i2L..LH56,66198608-198708

sub15104-54140

main15104-54042iL..LH50,60,70198212-198308

sub15104-54043

main15104-54043iL,2L..LH5#,6#,7#198308-198602

sub15104-54044

main15104-54044i2L..LH51,61,71198602-198708

main15104-71010i2Y#,3Y,4Y..YH5#,6#,71198212-198807

15104CGASKET(FOR OIL STRAINER)

main15149-54011iL,2L..LH5#,6#,7#198212-198708

sub15149-54012

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816iL,2L..LH5#,6#,7#198212-198708

15115COVER, OIL PUMP

main15115-54011iL,2L..LH5#,6#,7#198212-198504

sub15115-54012

main15115-54012i2L..LH5#,6#,71198504-198708

main15115-71015i2Y#,3Y,4Y..YH5#,6#,71198212-198807

15121GEAR, OIL PUMP DRIVE

main15121-54010iL,2L..LH5#,6#,7#198212-198708

15122GEAR, OIL PUMP DRIVEN

main15122-54010iL,2L..LH5#,6#,7#198212-198708

N=31

9017908040

main90179-08040

9161140814

main91611-40814

9322016012

main93220-16012

9 parts on this diagram · 2 diagrams in section
