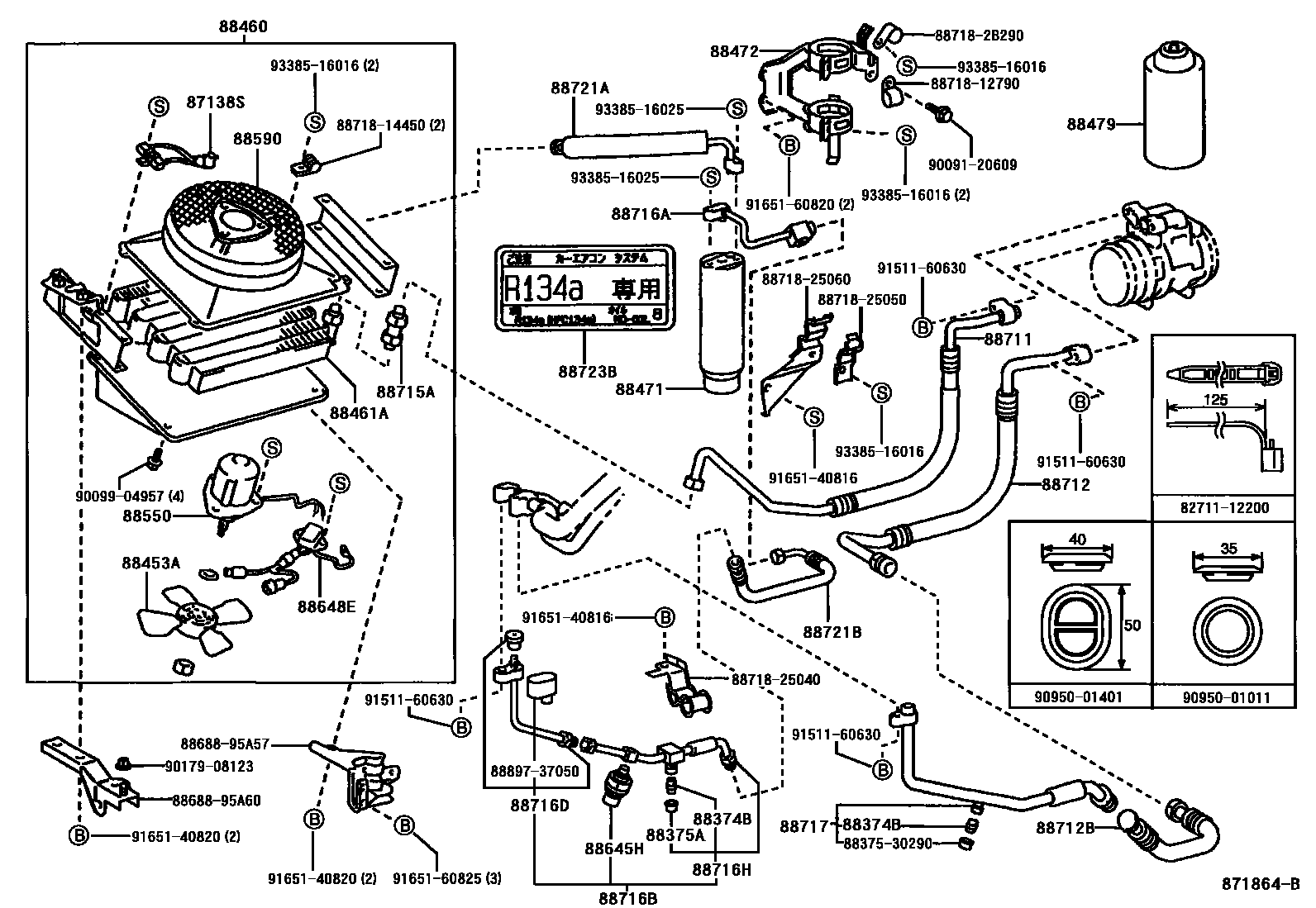

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

87138SRESISTOR, BLOWER

main87138-37020iLY100,YY100..RHD..IV199510-199905

88374BVALVE, SERVICE, NO.1

main88374-30010iYY100..IV199510-199905

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iYY100..IV199510-199905

88453AFAN, COOLING

main88453-95010iLY100..RHD..IV199708

88460CONDENSER ASSY, COOLER

main88460-25090iYY100..IV199510-199905

88461ACORE, COOLER CONDENSER

main88461-25030iLY100..RHD..IV199708

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iLY100,YY100..RHD..IV199510-199905

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88472-25060iLY100,YY100..RHD..IV199510-199905

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02007iLY100,YY100..RHD..IV199510-199905

250G

main90986-02008iLY100,YY100..RHD..IV199510-199905

200G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-25620iLY100..RHD..IV199708

88590BLOWER ASSY, W/SHROUD

main88590-25020iYY100..IV199510-199905

88645HSWITCH, PRESSURE NO.1

main88645-60030iYY100..IV199510-199905

88648EWIRING, COOLER

main88648-37090iYY100..IV199510-199905

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-25150iYY100..IV199510-199905

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-25210iYY100..IV199510-199905

88712BHOSE, COOLER REFRIGERANT SUCTION

main88712-25190iYY100..IV199510-199905

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-26190iYY100..IV199510-199905

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-25160iYY100..IV199510-199905

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-25150iYY100..IV199510-199905

88716DPIPE, COOLER REFRIGERANT LIQUID, D

main88716-37300iYY100..IV199510-199905

88716HPIPE, COOLER REFRIGERANT LIQUID, H

main88716-37290iYY100..IV199510-199905

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-25170iYY100..IV199510-199905

88721AHOSE, LIQUID, A

main88721-25090iYY100..IV199510-199905

88721BHOSE, LIQUID, B

main88721-25070iYY100..IV199510-199905

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iYY100..IV199510-199905

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8868895A57BRACKET, COOLER DIAPHRAGM

main88688-95A57

8868895A60BRACKET, COOLER DIAPHRAGM

main88688-95A60

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8871825040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25040

8871825050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25050

8871825060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25060

887182B290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B290

8889737050VALVE, COOLER MAGNET

main88897-37050

9009120609

main90091-20609

9009904957

main90099-04957

9017908123

main90179-08123

9095001011

main90950-01011

9095001401

main90950-01401

9151160630

main91511-60630

9165140816

main91651-40816

9165140820

main91651-40820

9165160820

main91651-60820

9165160825

main91651-60825

9338516016

main93385-16016

9338516025

main93385-16025

48 parts on this diagram · 2 diagrams in section
