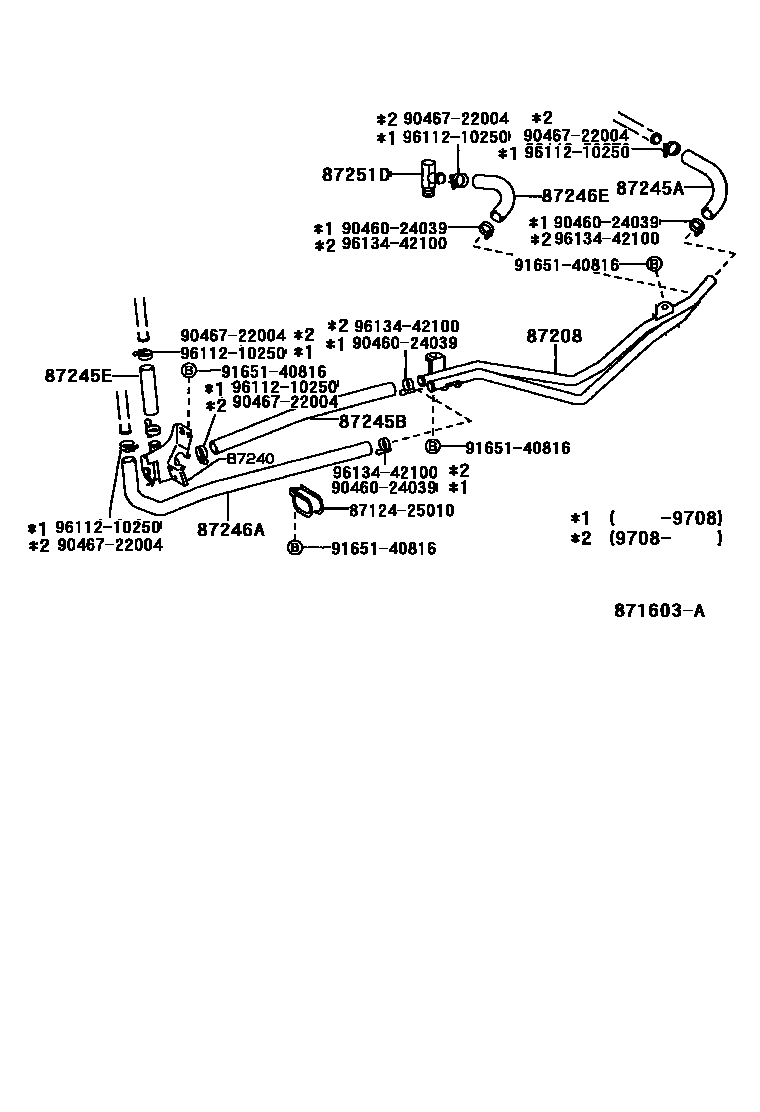

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1W(REAR HEATER) 0003 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-25090iLY100199505-199610

main87208-25100iLY100..TW2199505

W(RR HEATER)

main87208-25170iLY100199610

87245AHOSE, HEATER WATER, INLET A

main87245-25220iLY100..TW2199505

W(RR HEATER)

main99556-30300iLY100199505

*H,L=250

main99556-30300iLY100199505

*H,L=280

87245BHOSE, HEATER WATER, INLET B

main87245-25390iLY100..LHD199708-199710

L=390

sub99556-30390

main87245-25410iLY100..TW2199708-199710

L=700

sub99556-30700

main99556-30500iLY100199505-199710

*H,L=390

main99556-30500iYY100199505

*H,L=380

main99556-30700iLY100..TW2199505-199708

L=700,W(RR HEATER)

sub99556-31000

main99556-30700iLY100..TW2199710

L=700

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30100iLY100,YY100199505

*H,L=90

87246AHOSE, HEATER WATER, OUTLET A

main87245-25080iLY100..TW2199505-199508

L=740,W(RR HEATER)

sub99556-30740

main87245-25080iYY100199505-199508

L=740

sub99556-30740

main87245-25400iLY100..LHD199708-199710

L=480

sub99556-30480

main87245-25420iLY100..TW2199708-199710

L=740

sub99556-30740

main99556-30500iLY100199505-199710

*H,L=480

main99556-31000iLY100..TW2199508-199708

*H,L=740,W(RR HEATER)

main99556-31000iYY100199508-199710

*H,L=740

87246EHOSE, HEATER WATER, OUTLET E

main87245-25090iYY100199505

main87245-25230iLY100..TW2199710

main87245-25230iLY100..TW2199505-199708

W(RR HEATER)

main87245-25380iLY100..LHD199708-199710

L=250

sub99556-30250

main87245-25430iLY100..TW2199708-199710

sub87245-25230

main99556-30300iLY100..RHD199505-199710

*H,L=250

87251DJOINT, WATER, NO.1

main87251-89113iLY100..GEN199505

8712425010CLAMP, HEATER

main87124-25010

9046024039

main90460-24039

9046722004

main90467-22004

9165140816

main91651-40816

9611210250

main96112-10250

9613442100

main96134-42100

13 parts on this diagram · 3 diagrams in section
