HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

55076ANET SUB-ASSY, AIR DUCT

main55076-37010iLY100,YY100..RHD..(ARL,EUR)199505

main55076-37020iLY100..LHD..EUR199505

main55076-37030iLY100..RHD..GEN199505

main55076-37040iLY100,YY100..LHD..GEN199505

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-37070iLY100,YY100199505

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iLY100,YY100..LHD199505

main87105-14030iLY100,YY100..RHD199505-199705

main87105-37010iLY100..GEN199705-199708

87116SPRING, HEATER CASE FASTENING

main87116-37010iLY100,YY100199505

87130BLOWER ASSY, HEATER, FRONT

main87130-37030iLY100,YY100..LHD199505

main87130-37060iLY100,YY100..RHD199505-199705

sub87130-37061

main87130-37061iLY100..GEN199705-199708

87138RESISTOR, HEATER BLOWER

main87138-37080iLY100,YY100199505

87150RADIATOR ASSY, HEATER

main87150-37030iLY100,YY100..RHD..(ARL,EUR)199505-199708

W(FR HEATER)

main87150-37031iLY100..RHD..GEN199708

W(FR HEATER)

main87150-37050iLY100..RHD199505-199708

W(HEAVY HEATER)

main87150-37051iLY100..RHD199708

W(HEAVY HEATER)

main87150-37060iLY100,YY100..LHD199505-199708

main87150-37150iLY100,YY100..LHD199708

8712837010GROMMET, HEATER

main87128-37010

8712837020GROMMET, HEATER

main87128-37020

9017908057

main90179-08057

9017908123

main90179-08123

9033325001

main90333-25001

9033335002

main90333-35002

9165160618

main91651-60618

9165160820

main91651-60820

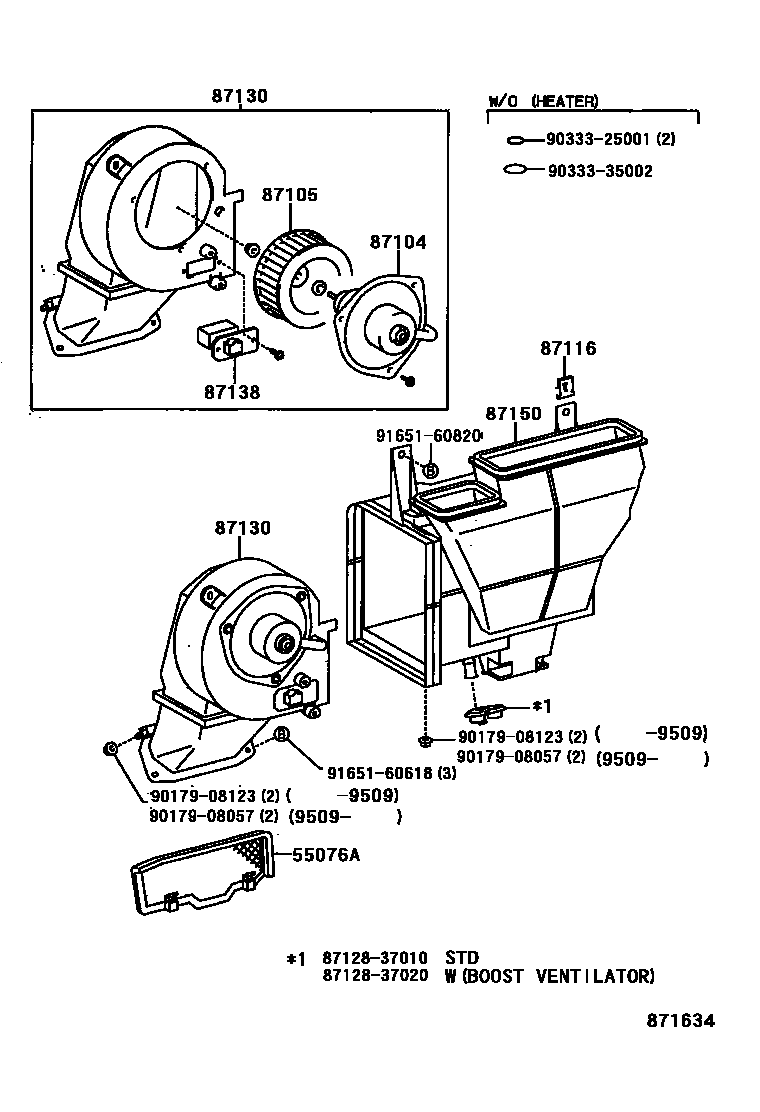

15 parts on this diagram · 3 diagrams in section
