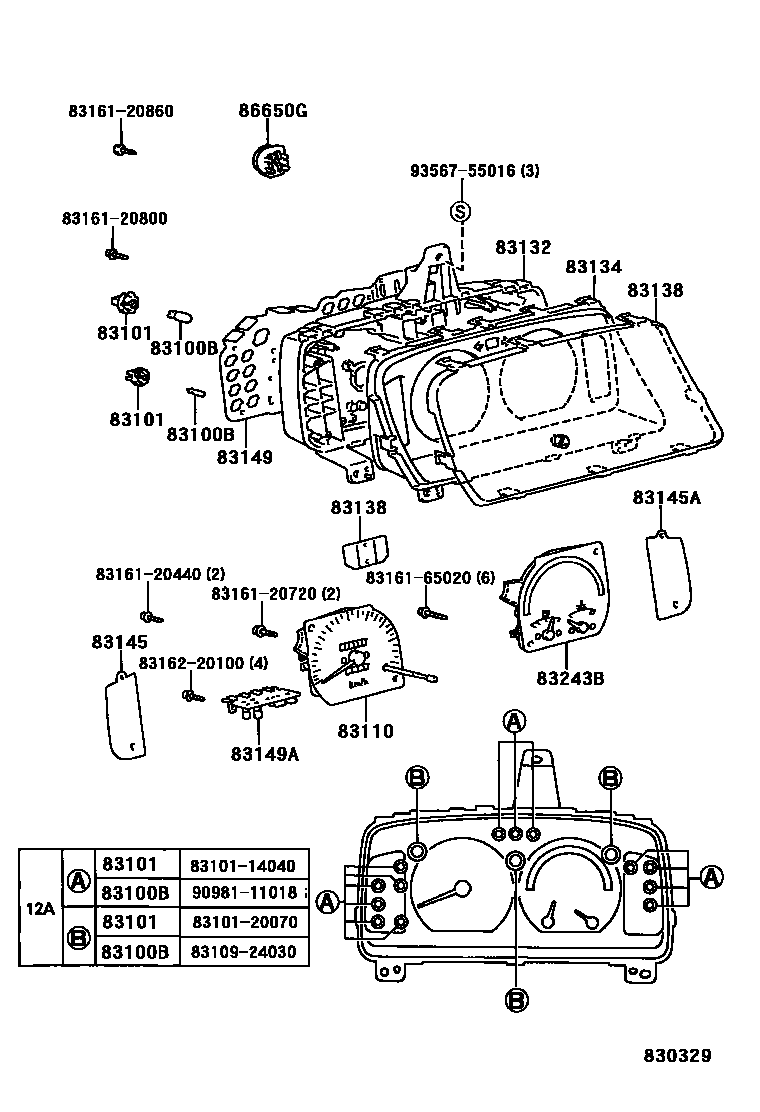

METER
83100BBULB, COMBINATION METER, NO.1
12V3.4W W(GREEN CAP)
12V 1.4W,W(SOCKET)
12V3.4W,W(GREEN CAP)
83101SOCKET SUB-ASSY, COMBINATION METER BULB
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
83110SPEEDOMETER ASSY
MILE/KM SPEEDOMETER
MILE/KM SPEEDOMETER
MILE/KM SPEEDOMETER
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
MILE/KM SPEEDOMETER
MILE/KM SPEEDOMETER
83145ALENS, METER, NO.2
83149PLATE, METER CIRCUIT
MILE/KM SPEEDOMETER
MILE/KM SPEEDOMETER
W(TACHOMETER)
83149APLATE, METER CIRCUIT, NO.2
83243BGAUGE ASSY, COMBINATION
86650GBUZZER ASSY
8310114040SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14040
8310120070SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-20070
8310924030BULB, COMBINATION METER, NO.2
main83109-24030
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
8316120800CASE, COMBINATION METER MIRROR, NO.1
main83161-20800
8316120860CASE, COMBINATION METER MIRROR, NO.1
main83161-20860
8316165020CASE, COMBINATION METER MIRROR, NO.1
main83161-65020
8316220100CASE, COMBINATION METER MIRROR, NO.2
main83162-20100
9098111018
main90981-11018
9356755016
main93567-55016
23 parts on this diagram · 4 diagrams in section
