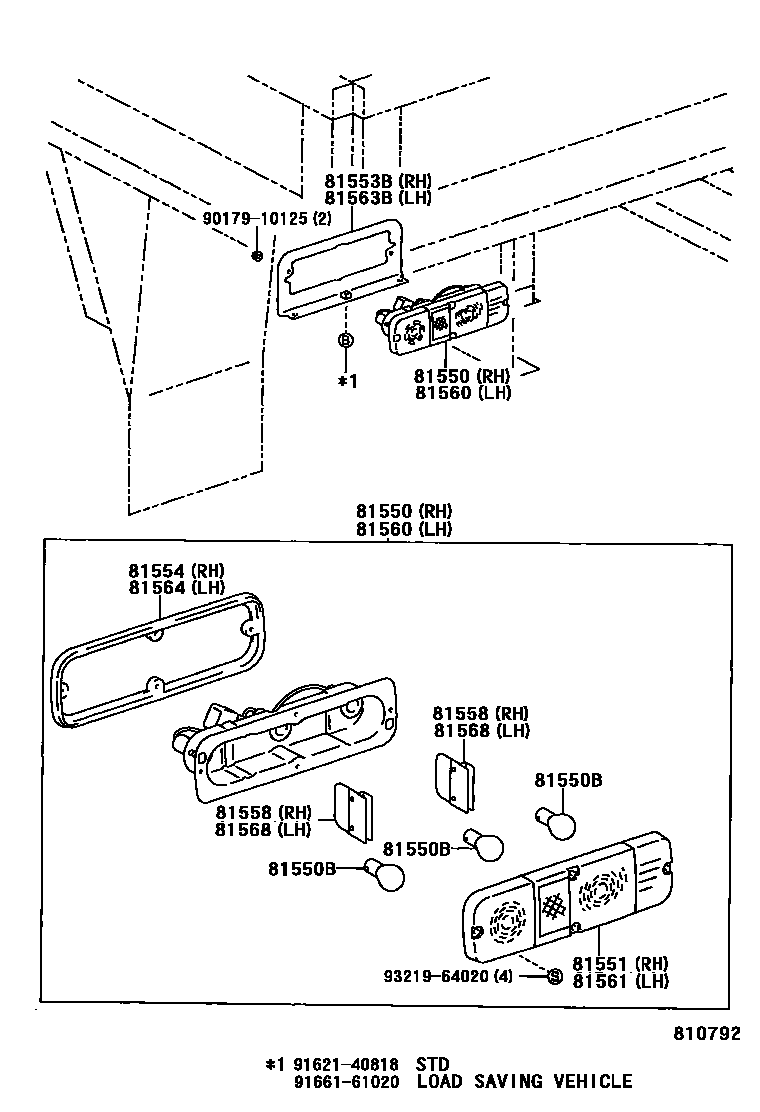

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25100iLY100,YY100..GEN199505

main81550-25110iLY100,YY100..ARL,EUR199505

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iYY100;LY100..RHD;LY100..LHD..EUR199505

12V 21W,TURN & BACK UP

main99132-11210iLY100..LHD..GEN199712

12V 21W

main99132-21210iYY100;LY100..RHD;LY100..LHD..EUR199505

12V 21/5W,TAIL & STOP

main99132-21210iLY100..LHD..GEN199712

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY100,YY100..GEN199505

main81551-35061iLY100,YY100..ARL,EUR199505

81553BBRACKET SUB-ASSY, RR COMB LAMP, RH

main75103-25011iLY100,YY100..IV199505

main75135-95A00iLY100..T3..EUR..CBU199505

main75135-95A01iLY100..TW2..CBU199505

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLY100,YY100..GEN199505

main81552-26040iLY100,YY100..ARL,EUR199505

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLY100,YY100..GEN199505

main81557-26040iLY100,YY100..ARL,EUR199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25090iLY100,YY100..GEN199505

main81560-25100iLY100,YY100..ARL,EUR199505

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY100,YY100..GEN199505

main81561-35061iLY100,YY100..ARL,EUR199505

81563BBRACKET SUB-ASSY, RR COMB LAMP, LH

main75104-25011iLY100,YY100..IV199505

main75135-95A00iLY100..T3..EUR..CBU199505

main75135-95A01iLY100..TW2..CBU199505

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLY100,YY100..GEN199505

main81562-26040iLY100,YY100..ARL,EUR199505

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLY100,YY100..GEN199505

main81557-26040iLY100,YY100..ARL,EUR199505

9017910125

main90179-10125

9162140818

main91621-40818

9166161020

main91661-61020

9321964020

main93219-64020

15 parts on this diagram · 1 diagram in section
