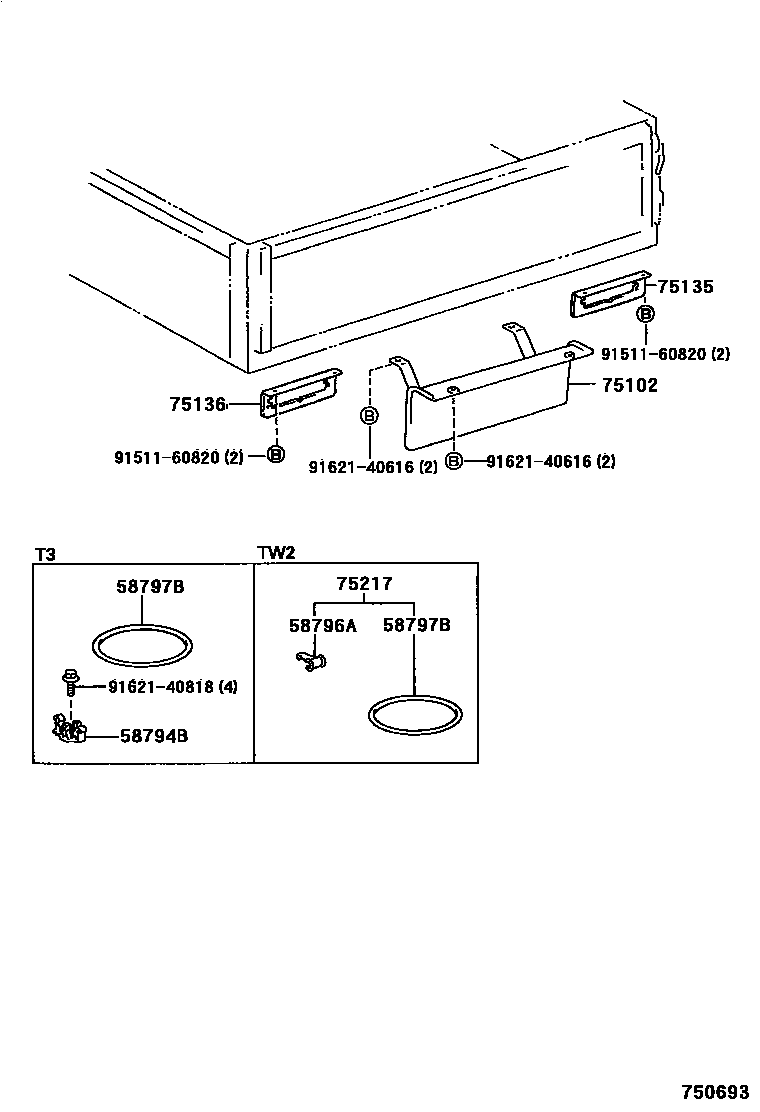

TOOL BOX & LICENSE PLATE BRACKET

58794BSUPPORT, JACK HANDLE

main58794-37020iLY100,YY100..T3199505

58796AHOOK, JACK CLAMP

main58796-20012iLY100..TW2199505

58797BBAND, JACK CLAMP

main58705-95A01iLY100..TW2199505

main58797-37020iLY100,YY100..T3199505

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95A05iLY100..TW2..CBU199505

main66490-95A07iLY100,YY100..T3..CBU199505

75135BRACKET, COMBINATION REAR LAMP, RH

main75135-95A02iLY100,YY100..GEN..CBU199505

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main75135-95A02iLY100,YY100..GEN..CBU199505

sub75136-25010

75217BAND, TOOL BAG

main58705-95A01iLY100..TW2199505

9151160820

main91511-60820

9162140616

main91621-40616

9162140818

main91621-40818

10 parts on this diagram · 1 diagram in section
