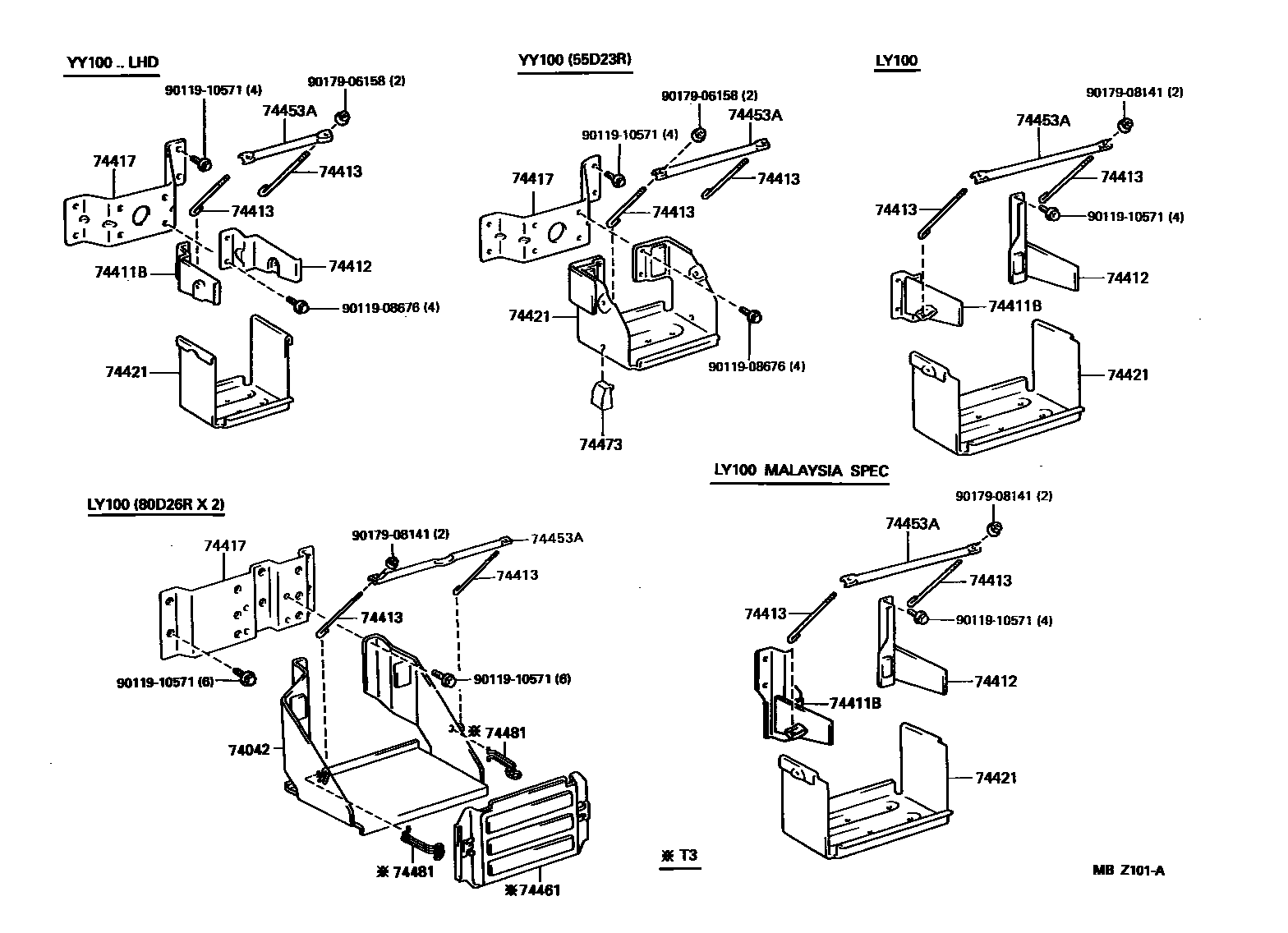

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-26010iLY100..EUR199505

74411BBRACKET, BATTERY, FRONT

main74401-26040iLY100..RHD;LY100..LHD..T3..EUR199505

main74401-26080iLY100..RHD..IV199505

MALAYSIA PACKAGE

main74411-25011iYY100..CBU199505

74412BRACKET, BATTERY, REAR

main74402-25130iLY100..RHD..IV199505

MALAYSIA PACKAGE

main74402-25130iLY100..LHD..GEN199712

main74402-26040iLY100..RHD;LY100..LHD..T3..EUR199505

main74402-26060iLY100..TW2199505

main74412-25011iYY100..CBU199505

74413BOLT, BATTERY CLAMP

main74451-25020iYY100199505

main74451-36070iLY100199505

74417BRACKET, BATTERY CARRIER

main74417-26050iYY100199505

main74417-26090iLY100..T3..EUR199505

main74417-26101iLY100..TW2199505

74421HANGER, BATTERY

main74421-26010iYY100..CBU199505

main74421-26020iYY100..IV199505

W(BATTERY=55D23R)

main74421-36091iLY100199505

74453ABAR, BATTERY SET PLATE

main74453-25080iYY100..CBU199505

main74453-25090iYY100..IV199505

W(BATTERY=55D23R)

main74453-25100iLY100199505

main74453-36070iLY100..EUR199505

W(BATTERY=80D26R X2)

sub74453-37130

74461COVER, BATTERY

main74461-36100iLY100..T3..EUR199505

74473SPACER, BATTERY

main74473-36050iYY100199505

74481CLAMP, BATTERY HOLD DOWN

main74481-36030iLY100..T3..EUR199505

9011908676

main90119-08676

9011910571

main90119-10571

9017906158

main90179-06158

9017908141

main90179-08141

14 parts on this diagram · 1 diagram in section
