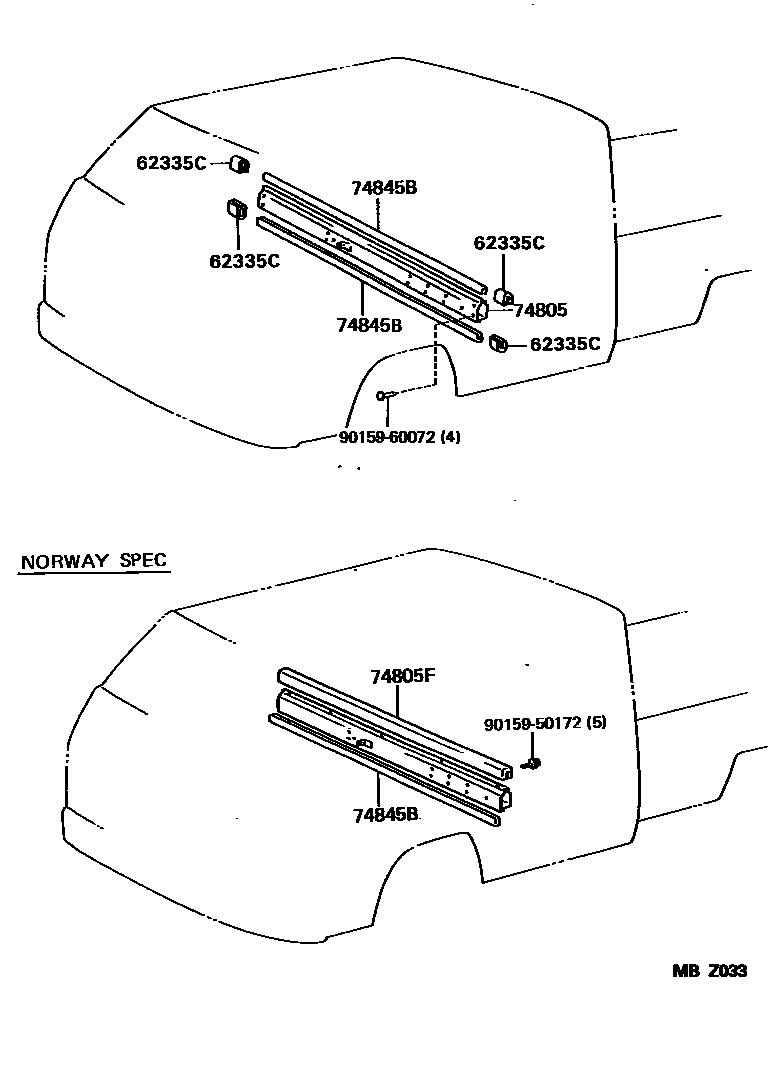

SEPARATOR & SEPARATOR CURTAIN

62335CCOVER, SEPARATOR BAR

main62335-92600-B0iLY100..TW2..CBU199505

NORWAY SPEC,GRAY,TRIM1#

sub62335-92600

main62335-92600-B0iLY100..TW2..CBU199505

GRAY,TRIM1#

sub62335-92600

74805SEPARATOR SUB-ASSY

main74805-95403iLY100..TW2199505

main74805-95A08iLY100..TW2..CBU199505

NORWAY SPEC

74805FBAR SUB-ASSY, SEPARATOR, A

main74810-95A00-B0iLY100..TW2..CBU199505

NORWAY SPEC,GRAY,TRIM1#

sub74810-95A00

74845BORNAMENT, FRONT SEATBACK PANEL, C

main74845-95400-B0iLY100..TW2..CBU199505

NORWAY SPEC,GRAY,TRIM1#

main74845-95400-B0iLY100..TW2..CBU199505

GRAY,TRIM1#

9015950172

main90159-50172

9015960072

main90159-60072

6 parts on this diagram · 1 diagram in section
