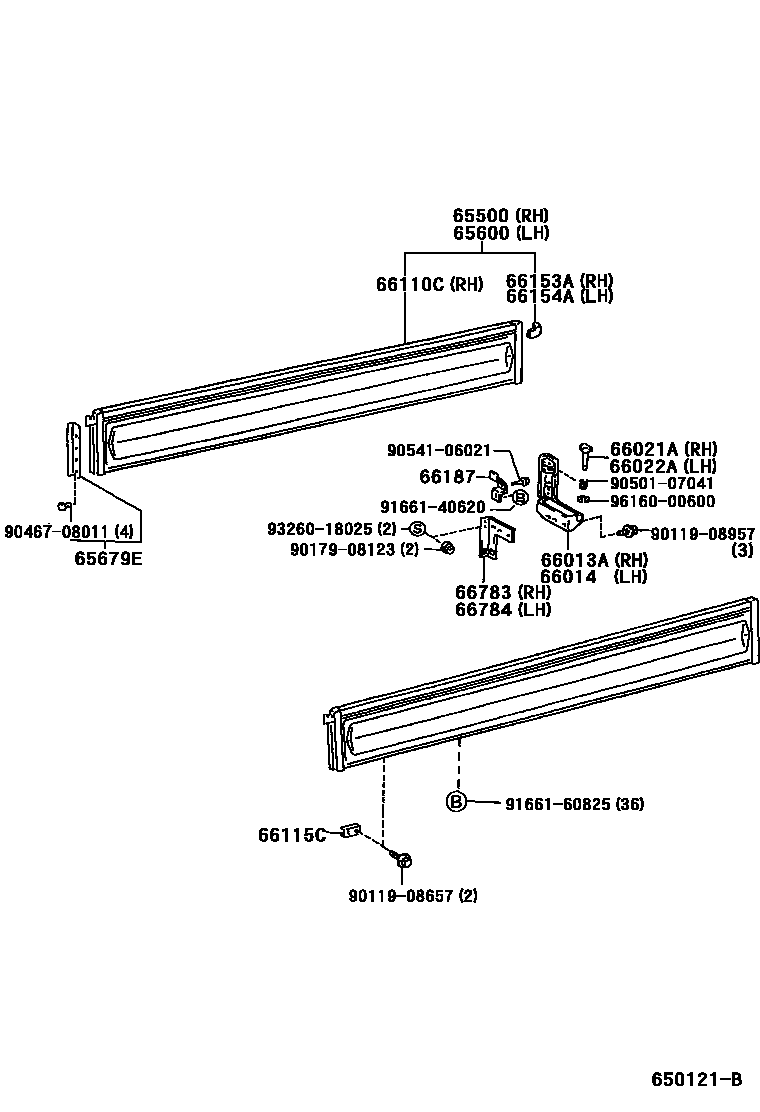

REAR BODY SIDE PANEL
65679ESEAL, SIDE GATE
LH
RH
66013ASUPPORT SUB-ASSY, SIDE GATE, RH
66014SUPPORT SUB-ASSY, CORNER, LH
66021AHANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, RH
66022AHANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, LH
66110CHINGE ASSY, SIDE GATE, NO.1 RH
sub66110-95018
66115CRETAINER, GATE HINGE
66153ALATCH, TAIL GATE FEMALE, RH
66154ALATCH, TAIL GATE FEMALE, LH
66187HANDLE, SIDE GATE LATCH, CENTER NO.2
66783BRACKET, SIDE GATE SUPPORT, RH
66784BRACKET, SIDE GATE SUPPORT, LH
9011908657
main90119-08657
9011908957
main90119-08957
9017908123
main90179-08123
9046708011
main90467-08011
9050107041
main90501-07041
9054106021
main90541-06021
9166140620
main91661-40620
9166160825
main91661-60825
9326018025
main93260-18025
9616000600
main96160-00600
24 parts on this diagram · 2 diagrams in section
