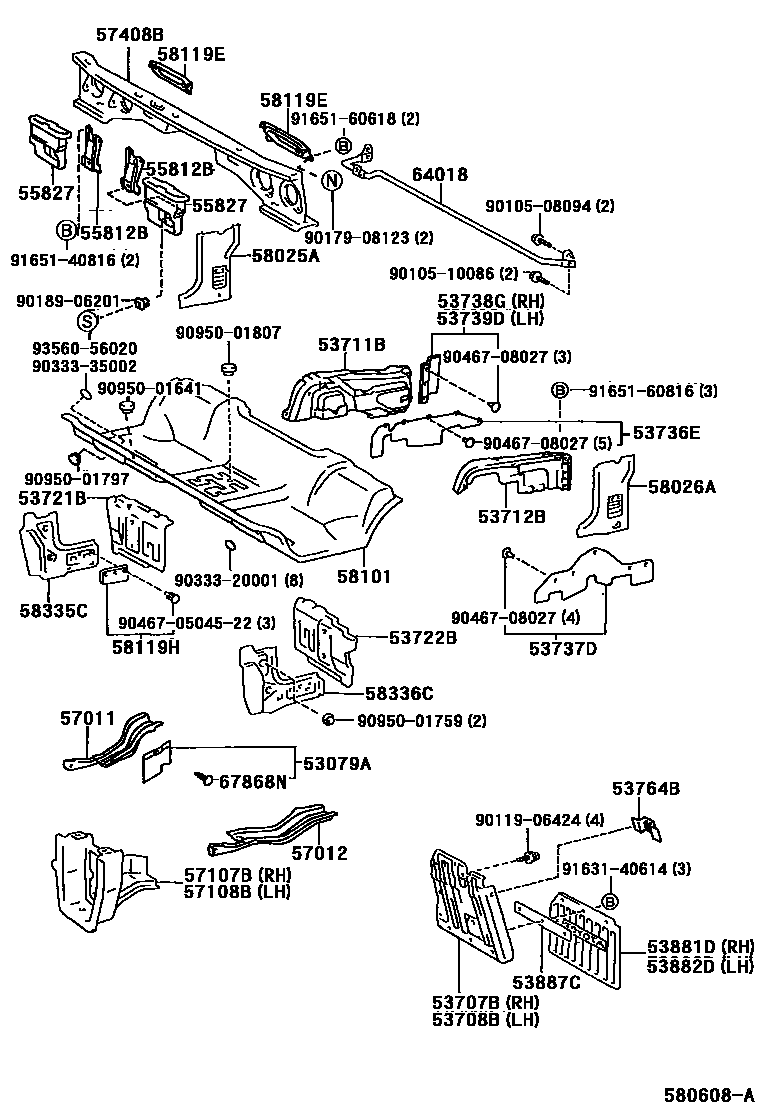

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53079ASEAL SUB-ASSY, FRONT FENDER APRON, LOWER

main53079-25010iLY100,YY100¥1,020199505

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53715-95405iLY100..TW2¥6,100199505

main53715-95A01iLY100,YY100..T3¥6,100199505

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53716-25010iLY100..TW2¥5,100199505

main53716-25030iLY100..RHD..IV¥6,100199505-199812

MALAYSIA PACKAGE

sub53716-95A02¥6,100

main53716-25030iLY100..LHD..GEN¥6,100199712-199812

sub53716-95A02¥6,100

main53716-95A02iYY100;LY100..RHD;LY100..LHD..T3..EUR¥6,100199505-199812

53711BAPRON, FRONT FENDER, FRONT RH

main53711-25010iLY100,YY100¥6,100199505

53712BAPRON, FRONT FENDER, FRONT LH

main53712-25010iLY100,YY100¥6,100199505

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37010iLY100,YY100..RHD¥3,400199505

main53721-37030iLY100,YY100..LHD¥2,180199505

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37010iLY100,YY100..LHD¥3,400199505

main53722-37020iLY100,YY100..RHD¥2,180199505

53736ESEAL, FRONT FENDER APRON, RH

main53736-25010iLY100,YY100¥1,780199505-199508

main53736-25040iLY100,YY100¥2,100199508

53737DSEAL, FRONT FENDER APRON, LH

main53737-25010iLY100,YY100¥2,290199505-199508

main53737-25050iLY100,YY100¥3,070199508

53738GSEAL, FRONT FENDER APRON, REAR RH

main53738-25010iYY100¥820199505

53739DSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-25010iYY100¥1,020199505

53764BBRACKET, AIR CLEANER INLET, NO.3

main53764-25020iLY100..RHD..IV¥920199505

MALAYSIA SPEC

main53764-25020iLY100..LHD..GEN¥920199712

53881DMUDGUARD, FRONT RH

main53881-25010iLY100,YY100..T3¥1,920199505

main53881-95401iLY100..TW2¥2,760199505

53882DMUDGUARD, FRONT LH

main53881-25010iLY100,YY100..T3¥1,920199505

main53881-95401iLY100..TW2¥2,760199505

53887CPLATE, FRONT MUDGUARD

main53887-95010iLY100,YY100..T3¥640199505

55812BBRACKET, VENTILATOR DUCT

main55812-37010iLY100..LHD;LY100,YY100..GEN¥550199505-199708

55827DUCT, VENTILATOR AIR GUIDE

main55827-37010iLY100..LHD;LY100,YY100..GEN¥2,260199505-199708

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-25010iLY100,YY100¥9,100199505

sub57011-25030¥9,200

57012MENBER SUB-ASSY

main57012-25010iLY100,YY100¥9,100199505

sub57012-25030¥9,200

57107BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH

main57107-25010iLY100,YY100¥5,700199505

57108BBRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main57108-25010iLY100,YY100¥5,700199505

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25030iLY100..RHD..EUR¥28,700199505-199610

sub57408-25031¥28,700

sub91651-40616¥60

main57408-25050iYY100..IV¥28,400199505-199610

main57408-25060iLY100..GEN¥28,400199505-199610

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-25070iLY100..GEN¥28,400199505-199610

main57408-25080iLY100..RHD..EUR¥28,700199610-199901

sub57408-25081¥28,700

sub91651-40616¥60

main57408-25081iLY100..RHD..EUR¥28,700199901

sub57408-25221¥28,700

sub90333-25001¥140

main57408-25110iLY100..LHD..EUR¥28,700199505

sub57408-25140¥28,700

main57408-25120iLY100..LHD¥28,600199505-199708

W/O(FRONT HEATER)

sub57408-25150¥28,600

main57408-25140iLY100..LHD..EUR¥28,700199505

W(HEADLAMP LEVELING)

main57408-25150iLY100..T3..EUR..IV¥28,600199505-199610

W/O(FRONT HEATOR) & W(HEADLAMP LEVELING)

main57408-25150iLY100..T3..EUR..IV¥28,600199505-199708

W/O(FRONT HEATER) & W(HEADLAMP LEVELING)

main57408-25170iYY100..CBU¥28,700199505

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-25180iYY100..CBU¥28,700199505

main57408-25220iYY100..IV199610-199901

sub57408-25221¥28,700

sub91651-40616¥60

main57408-25221iYY100..IV¥28,700199901

main57408-25230iLY100..RHD..GEN¥28,700199610-199901

W(FRONT HEATOR OR BOOSTVENTILATOR)

sub57408-25231¥28,700

sub91651-40616¥60

main57408-25231iLY100..RHD..GEN¥28,700199901

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-25240iLY100..RHD..GEN¥28,700199610-199901

sub57408-25241¥28,700

sub91651-40616¥60

main57408-25241iLY100..RHD..GEN¥28,700199901

main57408-25320iLY100..LHD..GEN¥28,700199712

W/O(FRONT HEATER)

sub57408-25180¥28,700

sub90333-25001¥140

main57408-25330iLY100..LHD..GEN¥28,700199712

W(FRONT HEATOR OR BOOSTVENTILATOR)

sub57408-25170¥28,700

sub90333-25001¥140

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-37011iLY100..TW2¥7,800199505

main58271-37011iLY100,YY100..T3¥3,500199505

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iLY100..TW2¥7,800199505

main58272-37010iLY100,YY100..T3¥3,500199505

58101PAN SUB-ASSY, FRONT FLOOR

main58101-25010iLY100,YY100..RHD¥44,500199505-199610

sub58101-25011¥44,500

sub55352-37010¥1,060

main58101-25011iLY100,YY100..RHD¥44,500199610-199708

sub58101-25014¥44,700

main58101-25014iLY100,YY100..RHD¥44,700199708

sub58111-25150¥40,700

sub53724-95010¥240

sub58239-25010¥930

sub58249-95A00¥780

sub58251-37011¥2,370

sub58252-37011¥2,370

sub58295-95A00¥1,400

sub82715-95J04¥220

sub90174-06002¥70

sub90174-08008¥160

main58101-25020iLY100,YY100..LHD¥44,500199505-199610

sub58101-25021¥44,500

sub55352-37010¥1,060

main58101-25021iLY100,YY100..LHD¥44,500199610-199708

sub58101-25024¥44,700

main58101-25024iLY100,YY100..LHD¥44,700199708

sub58111-25024¥40,500

sub53724-95010¥240

sub58239-25010¥930

sub58249-95A00¥780

sub58251-37011¥2,370

sub58252-37011¥2,370

sub58295-95A01¥1,400

sub82715-95J04¥220

sub90174-06002¥70

sub90174-08008¥160

58119ECOVER, FRONT FLOOR SIDE, FRONT

main50819-37010iLY100..RHD..GEN¥1,800199505

main50819-37020iLY100,YY100..LHD¥1,800199505-199708

58119HCOVER, FRONT FLOOR SIDE, FRONT

main58119-95400iLY100,YY100¥620199505

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37010iLY100,YY100¥3,880199505

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37010iLY100,YY100¥3,880199505

64018BAR SUB-ASSY, BODY

main64018-37040iLY100..LHD..EUR¥7,900199505

main64018-95413iYY100..IV¥14,800199505

main64018-95A02iLY100..RHD..EUR¥7,900199505

67868NCLIP, DOOR WEATHERSTRIP, RH

main67868-95401iLY100,YY100¥90199505

9010508094

main90105-08094¥170

9010510086

main90105-10086¥280

9011906424

main90119-06424¥70

9017908123

main90179-08123¥160

9018906201

main90189-06201¥120

9033320001

main90333-20001¥70

9033335002

main90333-35002¥80

904670504522

main90467-0504522

9046708027

main90467-08027¥160

9095001641

main90950-01641¥200

9095001759

main90950-01759¥120

9095001797

main90950-01797¥260

9095001807

main90950-01807¥180

9163140614

main91631-40614¥80

9165140816

main91651-40816¥80

9165160618

main91651-60618¥90

9165160816

main91651-60816¥100

9356056020

main93560-56020¥140

49 parts on this diagram · 3 diagrams in section
