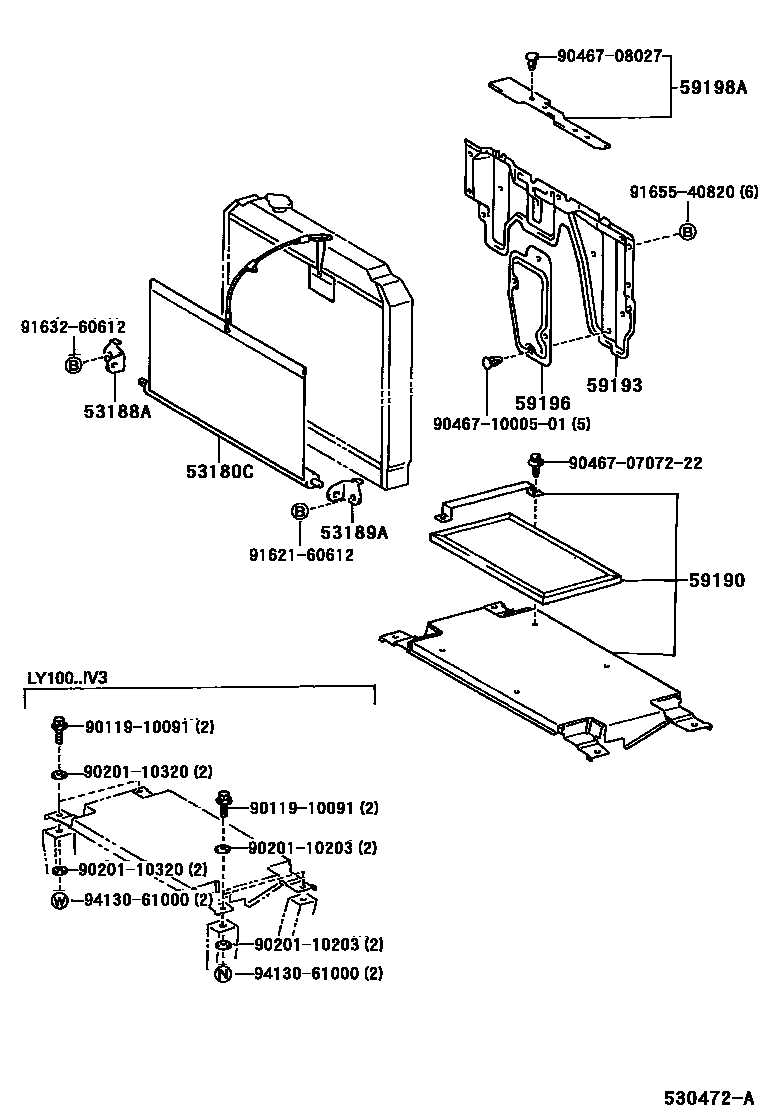

RADIATOR SUPPORT & WIND GUIDE
53180CSHUTTER ASSY, RADIATOR
53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH
53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH
59190GUARD ASSY, NOISE SHUTTER
59193GUARD, NOISE SHUTTER
59196SEAL, NOISE SHUTTER, UPPER NO.1
59198ASEAL, NOISE SHUTTER
9011910091
main90119-10091
9020110203
main90201-10203
9020110320
main90201-10320
904670707222
main90467-0707222
9046708027
main90467-08027
904671000501
main90467-1000501
9162160612
main91621-60612
9163260612
main91632-60612
9165540820
main91655-40820
9413061000
main94130-61000
17 parts on this diagram · 1 diagram in section
