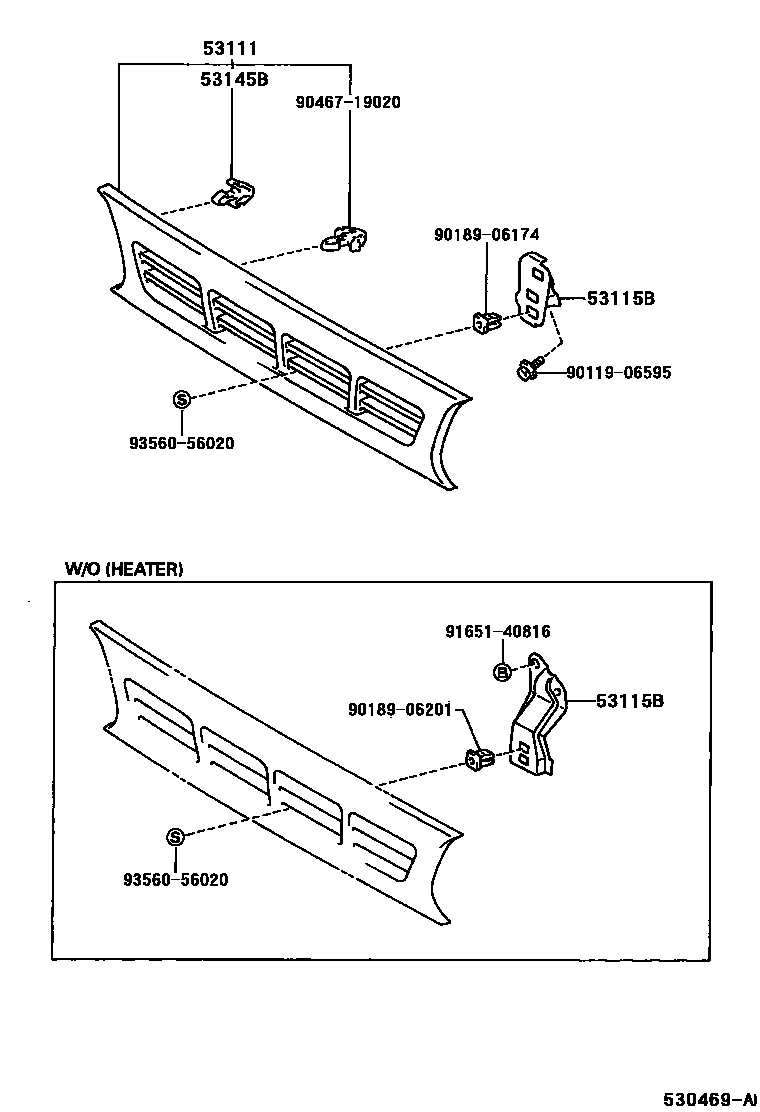

RADIATOR GRILLE

0001 1 0002 1W(SNORKEL AIR CLEANER)

53111GRILLE, RADIATOR

main53101-25020-B0iLY100,YY100..ARL,EUR199505

LT.GRAY,048 ,058 ,8E5 ,8P0

sub53101-25020

main53101-37070-A0iLY100..GEN200002

GRAY,058 ,8P0

sub53101-37070

main53101-37070-B0iLY100,YY100..GEN199505-199905

LT. GRAY,048 ,8E5

sub53101-37070

main53101-37070-B0iLY100..GEN199905-200002

LT. GRAY,058 ,8P0

sub53101-37070

main53101-37150-B0iYY100..CBU199505-199905

W(*STAC),LT. GRAY,048 ,8E5

sub53101-37150

53115BBRACKET, RADIATOR GRILLE

main53115-37020iLY100,YY100199505

W(FRONT HEATER)

main53115-37030iLY100,YY100..GEN199505-199508

W/O FRONT HEATER

main53115-37030iLY100..LHD199505-199508

W/O(FRONT HEATER)

main53115-37030iLY100..LHD..GEN199712

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-26010iLY100,YY100..ARL,EUR199505

9011906595

main90119-06595

9018906174

main90189-06174

9018906201

main90189-06201

9046719020

main90467-19020

9165140816

main91651-40816

9356056020

main93560-56020

9 parts on this diagram · 2 diagrams in section
