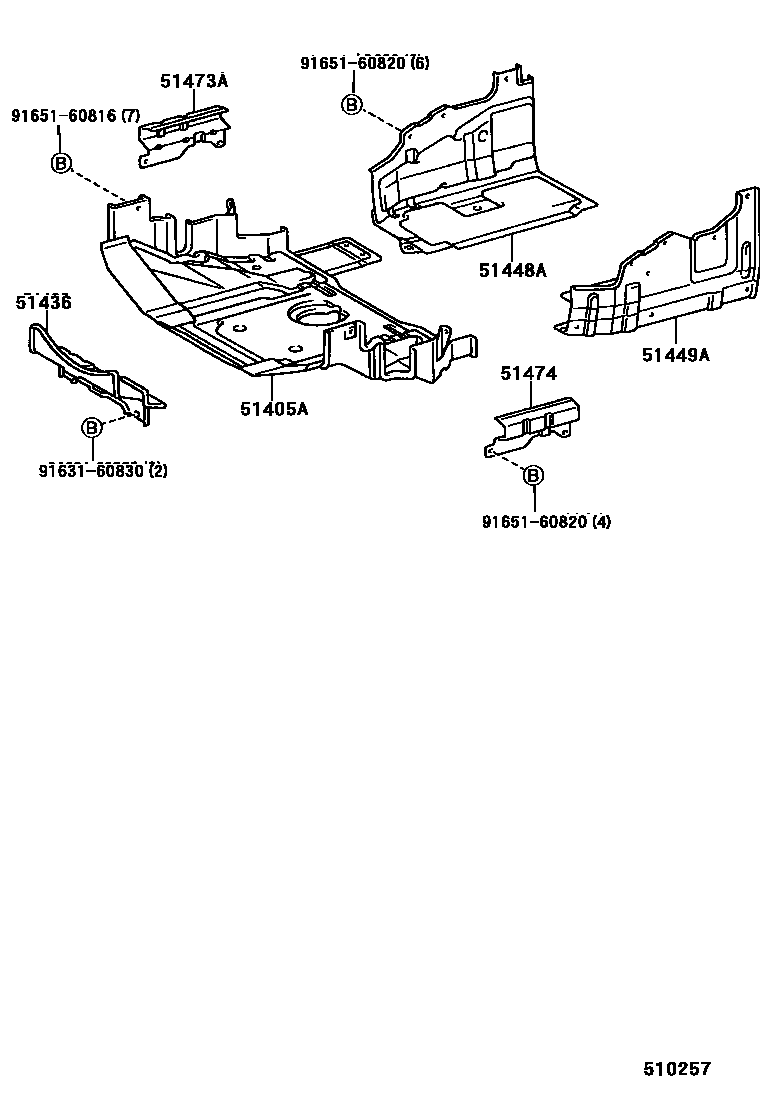

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-25070iLY100..EUR199505-199708

51436PROTECTOR, ENGINE FRONT SUPPORT

main51436-25020iLY100199505

main51436-26010iYY100199505

51448ACOVER, ENGINE SIDE UNDER, RH

main51460-25030iLY100..EUR199505-199708

51449ACOVER, ENGINE SIDE UNDER, LH

main51470-25030iLY100..EUR199505-199708

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-25030iLY100,YY100199505

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-25030iLY100,YY100199505

9163160830

main91631-60830

9165160816

main91651-60816

9165160820

main91651-60820

9 parts on this diagram · 1 diagram in section
