FRAME

0001 1 0002 1 0003 1 0004 1

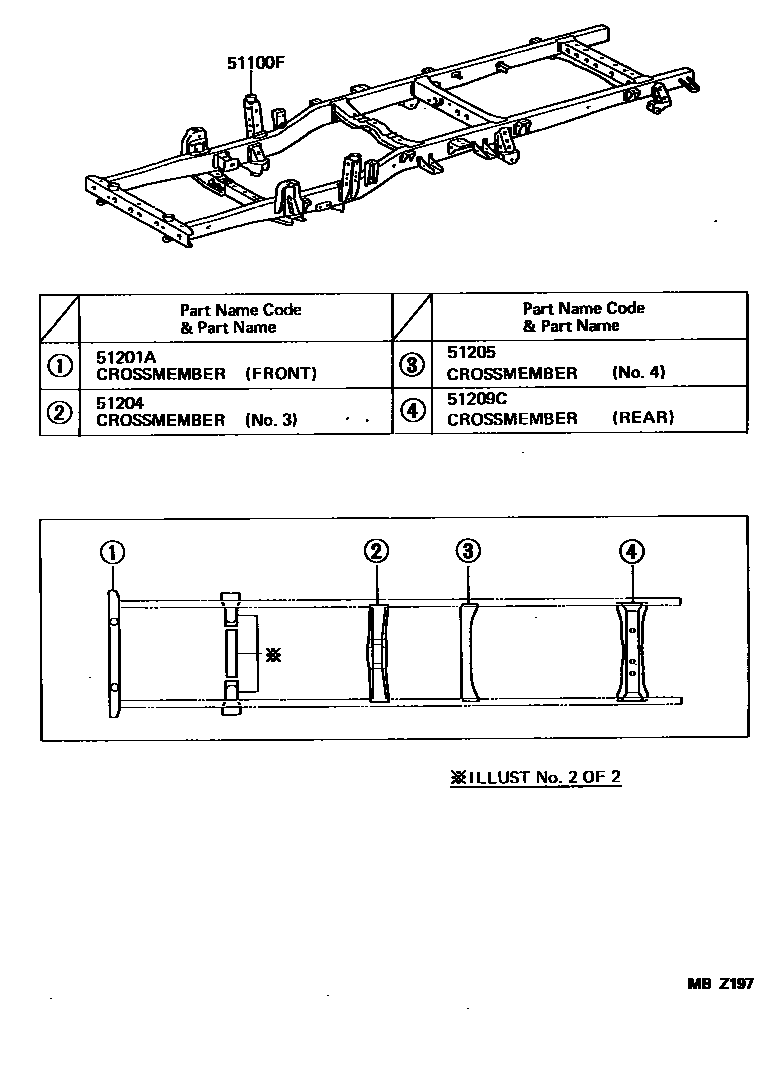

51100FFRAME SUB-ASSY

main51001-26303iLY100..RHD..EUR199505

main51001-26323iLY100..LHD..T3199505-199708

main51001-26324iLY100..LHD..T3..EUR199708

main51001-26363iLY100..TW2199505-199708

main51001-26364iLY100..TW2199708

main51001-26413iYY100..IV199505

main51001-26423iLY100..RHD..GEN199505

main51001-26433iYY100..CBU199505-199905

main51003-25360iLY100..LHD..GEN199712

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-25090iLY100,YY100199505

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-26120iLY100,YY100199505

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-26030iLY100,YY100199505-199606

main51204-26031iLY100,YY100199606

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-26030iLY100,YY100199505

5 parts on this diagram · 4 diagrams in section
