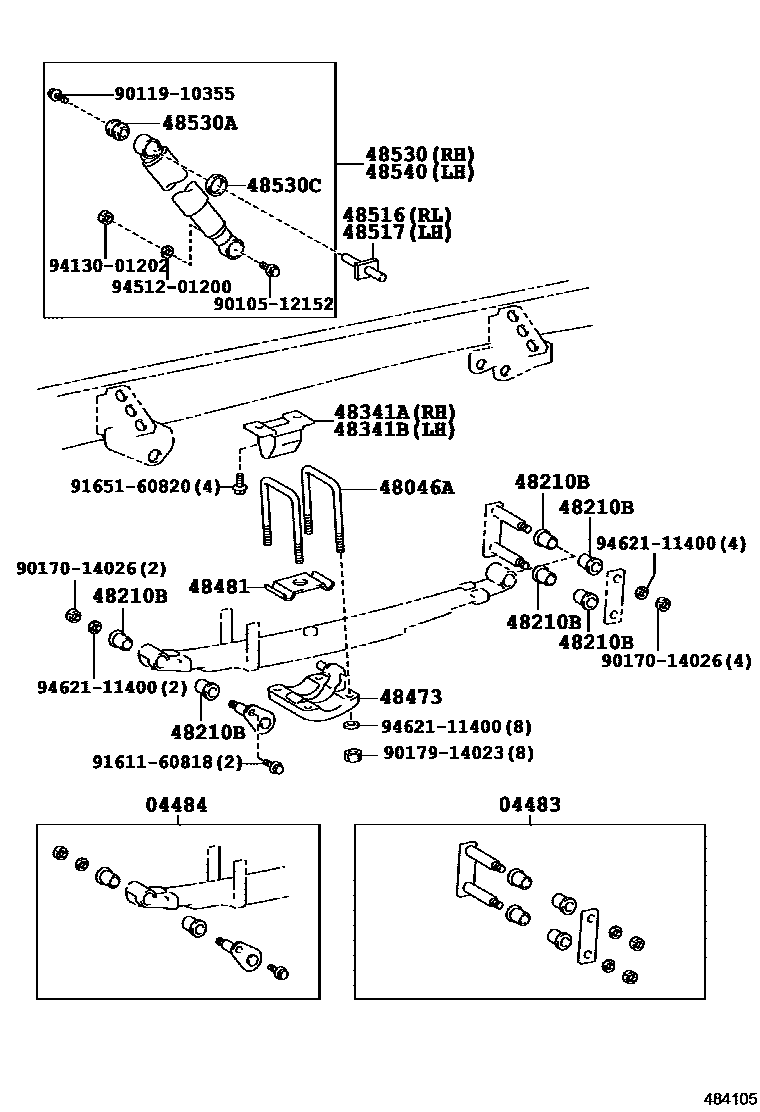

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
sub04483-35040
04484PIN KIT, REAR SPRING
48046ABOLT, U(FOR REAR SPRING)
L=185
L=165
48210SPRING ASSY, REAR RH
6-LEAF
4-LEAF
48210BBUSH(FOR REAR SPRING PIN)
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48473SEAT, REAR SPRING U BOLT
48481SEAT, REAR SPRING, UPPER
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
9010512152
main90105-12152
9011910355
main90119-10355
9017014026
main90170-14026
9017914023
main90179-14023
9161160818
main91611-60818
9165160820
main91651-60820
9413001202
main94130-01202
9451201200
main94512-01200
9462111400
main94621-11400
24 parts on this diagram · 4 diagrams in section
