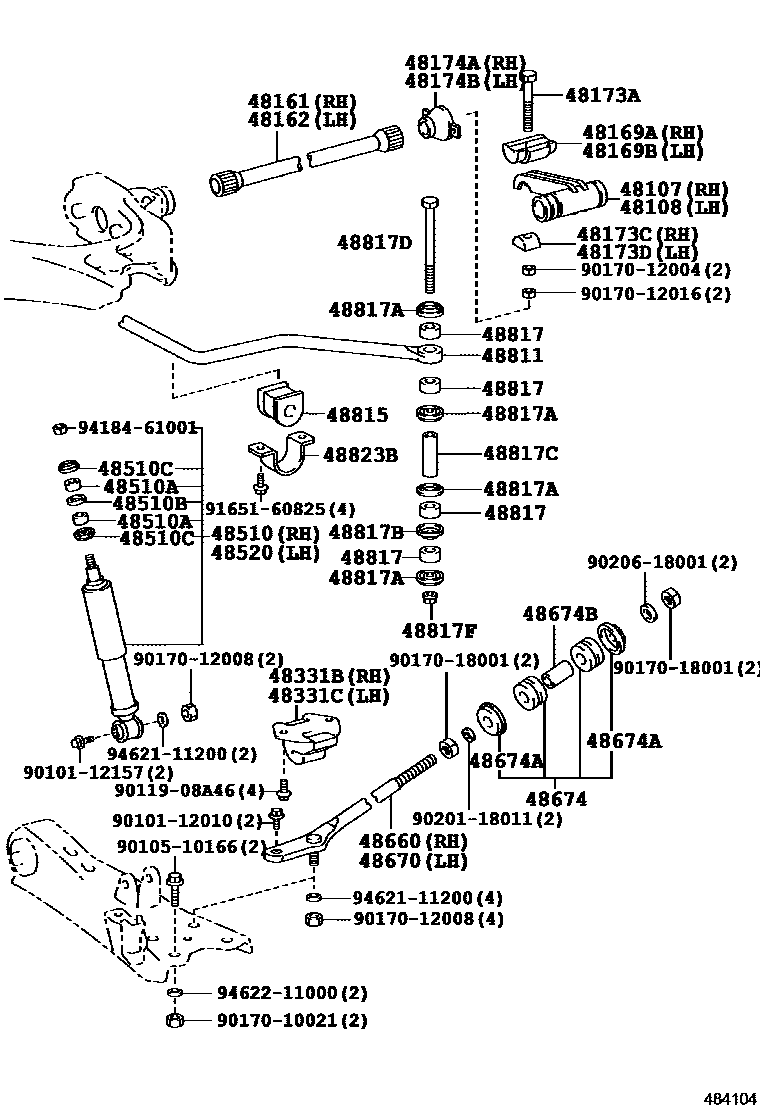

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174ACOVER, TORSION BAR DUST, RH
48174BCOVER, TORSION BAR DUST, LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48817FNUT(FOR FRONT STABILIZER BAR)
48823BCOVER, FRONT STABILIZER BRACKET
sub48823-26120
9010112010
main90101-12010
9010112157
main90101-12157
9010510166
main90105-10166
9011908A46
main90119-08A46
9017010021
main90170-10021
9017012004
main90170-12004
9017012008
main90170-12008
9017012016
main90170-12016
9017018001
main90170-18001
9020118011
main90201-18011
9020618001
main90206-18001
9165160825
main91651-60825
9418461001
main94184-61001
9462111200
main94621-11200
9462211000
main94622-11000
47 parts on this diagram · 1 diagram in section
