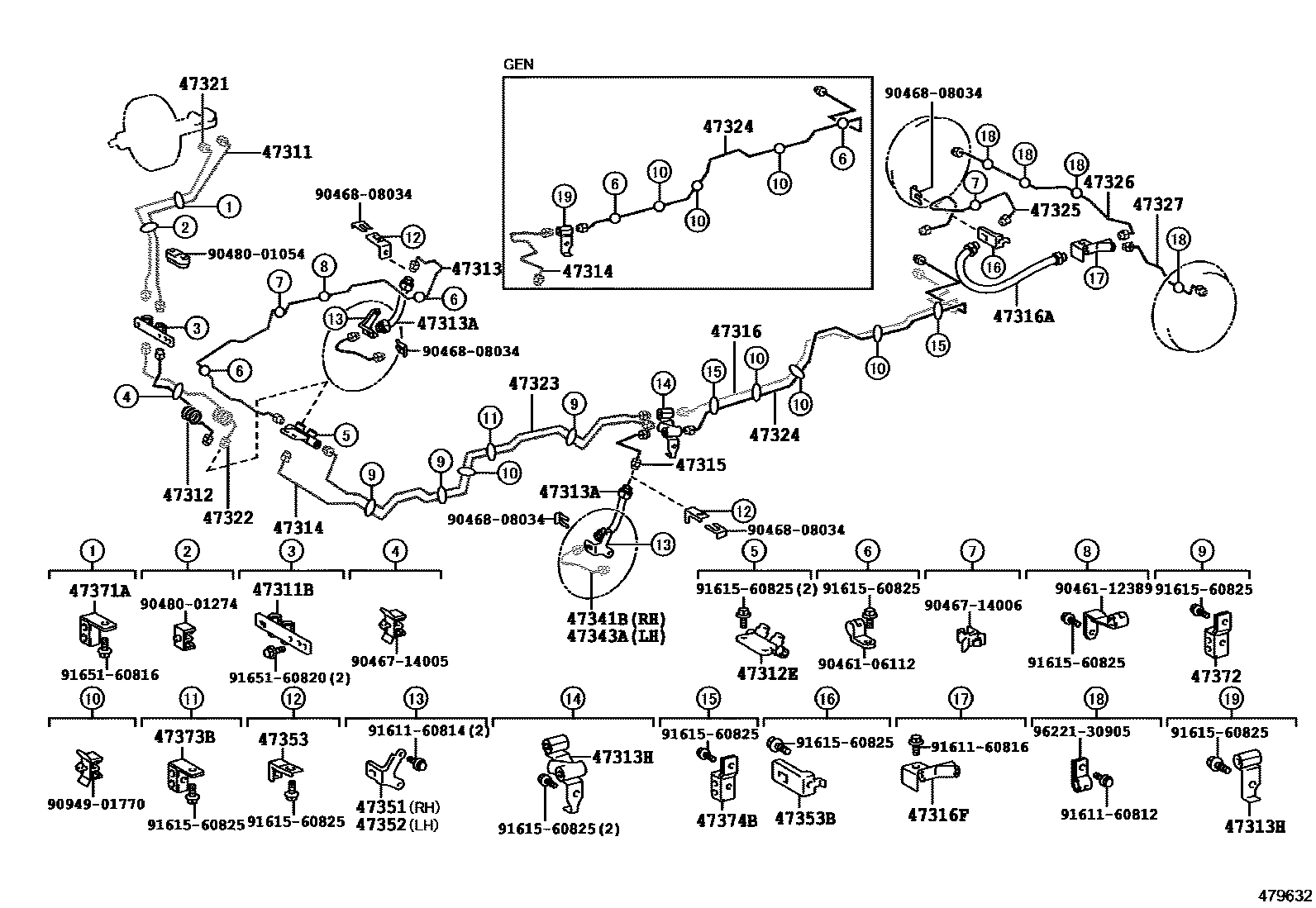

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-25250iLY100,YY100..LHD199505-199905

main47311-25270iLY100,YY100..RHD199505-199610

main47311-25300iLY100,YY100..RHD199610-199905

main47311-25310iLY100..LHD..EUR199610-199905

SWITZERLAND SPEC

main47311-25361iLY100..LHD199905

main47311-25381iLY100,YY100..RHD199905

main47311-25391iLY100..LHD..EUR199905

SWITZERLAND SPEC

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10221iLY100,YY100199505-199905

main90904-12044iLY100,YY100..RHD199610-199905

47312TUBE, FRONT BRAKE, NO.2

main47312-25130iLY100,YY100..RHD199505-199610

main47312-25150iLY100,YY100..LHD199505-199905

main47312-25160iLY100,YY100..RHD199610-199905

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10187iLY100,YY100199505-199905

main90904-13058iLY100,YY100..RHD199905

main90904-13059iLY100..LHD199905

47313TUBE, FRONT BRAKE, NO.3

main47313-25130iLY100,YY100199505-199905

main47313-25161iLY100,YY100..RHD199905

main47313-25181iLY100..LHD199905

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02477iLY100,YY100199505-199905

main90947-02E77iLY100,YY100199905

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90412-10134iLY100,YY100..GEN199505

main90904-13023iLY100,YY100..ARL,EUR199505

47314TUBE, FRONT BRAKE, NO.4

main47314-25160iLY100,YY100..ARL,EUR199505-199905

main47314-25170iLY100,YY100..GEN199505-199905

main47314-25201iLY100,YY100..RHD..(ARL,EUR)199905

main47314-25211iLY100..RHD..GEN199905

main47314-25231iLY100..LHD..EUR199905

main47314-25241iLY100..LHD..GEN199905

47315TUBE, FRONT BRAKE, NO.5

main47315-25100iLY100,YY100..ARL,EUR199505

47316TUBE, FRONT BRAKE, NO.6

main47316-25170iLY100,YY100..ARL,EUR199505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02555iLY100,YY100199505-199905

main90947-02F55iLY100,YY100199905

47316FWAY, 3(FOR REAR BRAKE TUBE)

main90413-10216iLY100,YY100199505

47321TUBE, REAR BRAKE, NO.1

main47321-25110iLY100,YY100..LHD199505-199905

main47321-25130iLY100,YY100..RHD199505-199610

main47321-25160iLY100,YY100..RHD199610-199905

main47321-25170iLY100..LHD..EUR199610-199905

SWITZERLAND SPEC

main47321-25221iLY100..LHD199905

main47321-25241iLY100,YY100..RHD199905

main47321-25251iLY100..LHD..EUR199905

SWITZERLAND SPEC

47322TUBE, REAR BRAKE, NO.2

main47322-25110iLY100,YY100..RHD199505-199610

main47322-25130iLY100,YY100..LHD199505-199905

main47322-25140iLY100,YY100..RHD199610-199905

47323TUBE, REAR BRAKE, NO.3

main47323-25130iLY100,YY100199505-199905

main47323-25161iLY100,YY100..RHD199905

main47323-25181iLY100..LHD199905

47324TUBE, REAR BRAKE, NO.4

main47324-25290iLY100,YY100199505

47325TUBE, REAR BRAKE, NO.5

main47325-26281iLY100,YY100199505

47326TUBE, REAR BRAKE, NO.6

main47326-25240iLY100..EUR199505

main47326-25250iLY100,YY100..ARL,GEN199505

47327TUBE, REAR BRAKE, NO.7

main47327-25200iLY100..EUR199505

main47327-25210iLY100,YY100..ARL,GEN199505

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26060iLY100,YY100199505

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26060iLY100,YY100199505

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26070iLY100,YY100199505

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26070iLY100,YY100199505

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-26030iLY100,YY100199505

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-26050iLY100,YY100199505

47371ACLAMP, BRAKE TUBE, NO.1

main47373-25010iLY100,YY100199505

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010iLY100,YY100199505

47373BCLAMP, BRAKE TUBE, NO.3

main47373-26010iLY100,YY100199505

47374BCLAMP, BRAKE TUBE, NO.4

main47372-25010iLY100,YY100..ARL,EUR199505

9046106112

main90461-06112

9046112389

main90461-12389

9046714005

main90467-14005

9046714006

main90467-14006

9046808034

main90468-08034

9048001054

main90480-01054

9048001274

main90480-01274

9094901770

main90949-01770

9161160812

main91611-60812

9161160814

main91611-60814

9161160816

main91611-60816

9161560825

main91615-60825

9165160816

main91651-60816

9165160820

main91651-60820

9622130905

main96221-30905

44 parts on this diagram · 6 diagrams in section
