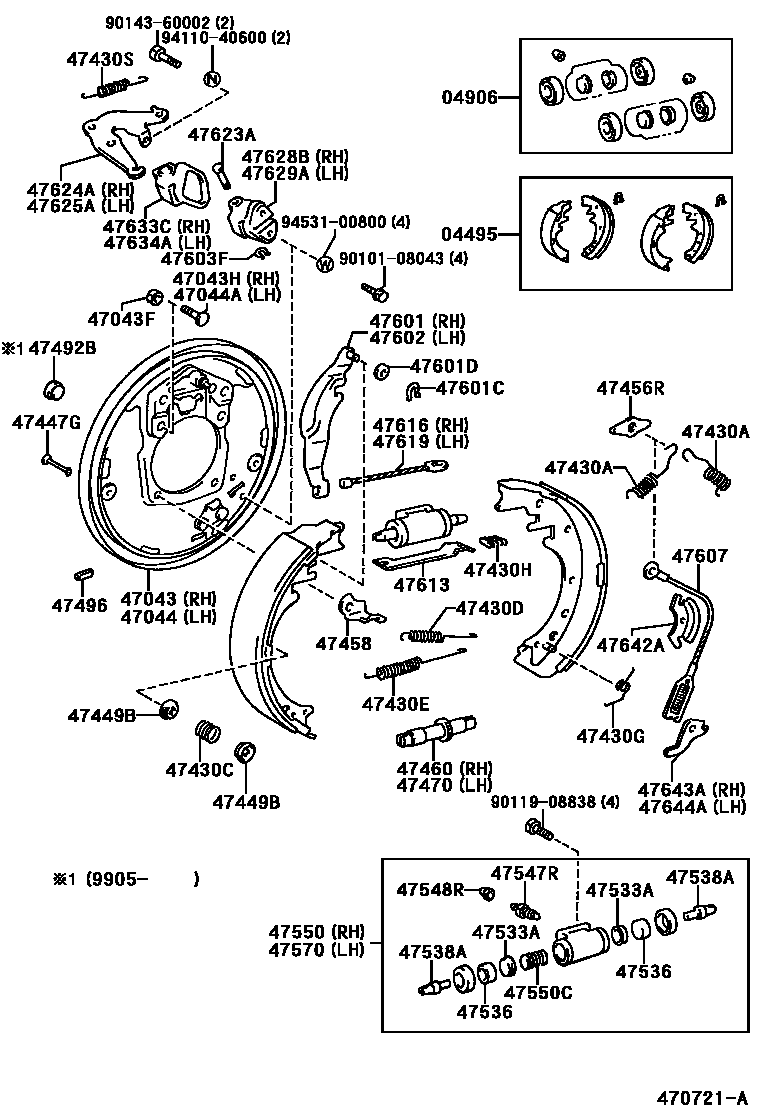

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
NO.1
NO.2
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
NO.1
NO.2
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
RH
LH
RH
LH
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47456RPLATE, REAR BRAKE SHOE GUIDE
47458BRACKET, REAR BRAKE SHOE RETURN SPRING
RH
LH
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47538ALINK, WHEEL CYLINDER CONNECTING
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601CWASHER, C(FOR REAR BRAKE)
T=1.6
47601DWASHER, WAVE(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)
47607CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST
47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
RH
LH
47616WIRE, PARKING BRAKE, RH
47619WIRE, PARKING BRAKE, LH
47623APIN(FOR PARKING BRAKE BELL CRANK)
47624ACRANK, PARKING BRAKE BELL, RH
47625ACRANK, PARKING BRAKE BELL, LH
47628BBRACKET, REAR BRAKE BELLCRANK, RH
47629ABRACKET, REAR BRAKE BELLCRANK, LH
47633CBOOT, REAR BRAKE BELLCRANK, RH
47634ABOOT, REAR BRAKE BELLCRANK, LH
47642AGUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9010108043
main90101-08043
9011908838
main90119-08838
9014360002
main90143-60002
9411040600
main94110-40600
9453100800
main94531-00800
54 parts on this diagram · 2 diagrams in section
