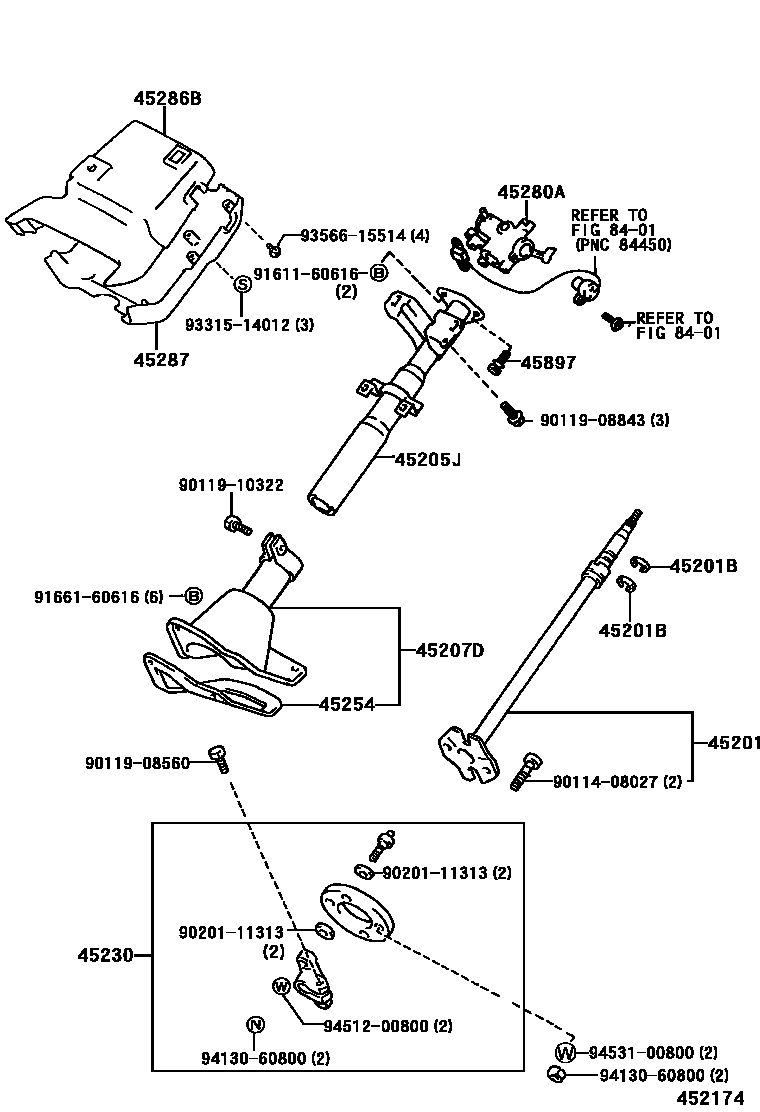

STEERING COLUMN & SHAFT

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-25090iYY100;LY100..RHD..GEN199505

main45201-26080iLY100..EUR;LY100..LHD..GEN199505

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLY100,YY100199505

T=1.20,UPPER

main90520-17269iLY100,YY100199505

T=1.20,LOWER

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-25122iLY100,YY100199505

45207DCOVER SUB-ASSY, MAIN SHAFT JOINT

main45207-25022iLY100,YY100..RHD199505

main45207-25032iLY100,YY100..LHD199505

45230COUPLING ASSY, FLEXIBLE

main45230-25022iLY100,YY100199505

45254SHIELD, STEERING COLUMN HOLE

main45254-36090iLY100,YY100..RHD199505

main45254-36100iLY100,YY100..LHD199505

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45307-36210iLY100,YY100199505

45286BCOVER, STEERING COLUMN, UPR

main45286-37030-B0iLY100,YY100..RHD..(ARL,GEN)199505

BLUISH GRAY,TRIM1#

sub45286-37040

main45286-37050-B0iLY100..EUR;LY100,YY100..LHD..GEN199505

BLUISH GRAY,TRIM1#

sub45286-37060

45287COVER, STEERING COLUMN, LWR

main45287-37040-B0iLY100,YY100..RHD..(ARL,GEN)199505

BLUISH GRAY,TRIM1#

sub45287-37030

main45287-37050-B0iLY100..EUR;LY100,YY100..LHD..GEN199505

BLUISH GRAY,TRIM1#

sub45287-37060

45897BOLT, STEERING LOCK SET

main45897-12030iLY100,YY100199505

8401

9011408027

main90114-08027

9011908560

main90119-08560

9011908843

main90119-08843

9011910322

main90119-10322

9020111313

main90201-11313

9161160616

main91611-60616

9166160616

main91661-60616

9331514012

main93315-14012

9356615514

main93566-15514

9413060800

main94130-60800

9451200800

main94512-00800

9453100800

main94531-00800

23 parts on this diagram · 1 diagram in section
