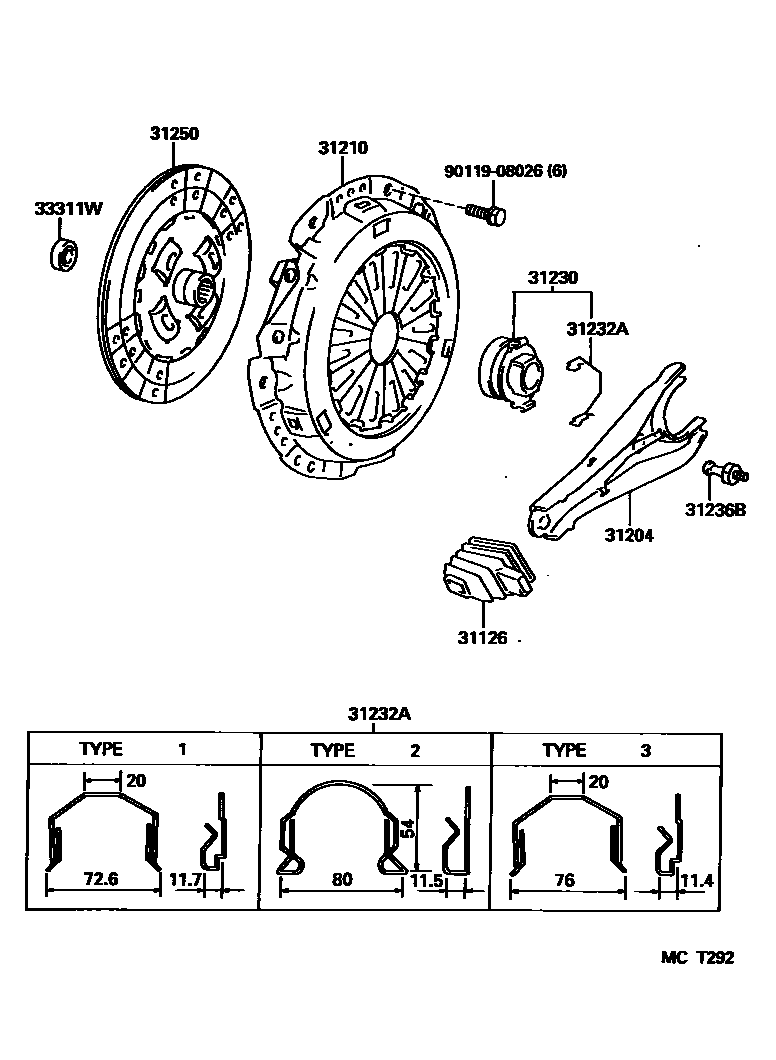

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0W010iLY100..GEN..IV199608-199609

(L)

sub31126-20070

main31126-20060iYY100199505-199905

main31126-20070iLY100..CBU;LY100..EUR..IV199608-199609

(J)

main31126-20070iLY100199505-199608

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYY100199505-199905

main31204-35050iLY100199505

31210COVER ASSY, CLUTCH

main31210-30251iLY100199905

sub31210-35340

main31210-35090iLY100,YY100199505-199905

sub31210-22100

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLY100199505

sub31230-35071

main31230-35090iYY100199505-199905

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLY100,YY100199505-199905

TYPE 1

main31232-35030iLY100199505

TYPE 2

main31232-35040iYY100199505-199905

TYPE 3

31236BSUPPORT, RELEASE FORK

main31236-30060iLY100,YY100199505-199905

31250DISC ASSY, CLUTCH

main31250-20240iYY100199604-199702

sub31250-20241

main31250-20241iYY100199702

sub31250-20242

main31250-25122iYY100199505-199604

sub31250-20240

main31250-26052iLY100..RHD..GEN199505-199906

sub31250-26053

main31250-26053iLY100..GEN199906-199911

sub31250-35410

main31250-35221iLY100..EUR;LY100..LHD..GEN199505-199906

sub31250-35222

main31250-35222iLY100..EUR;LY100..LHD..GEN199906-199911

main31250-35410iLY100..EUR199911

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLY100,YY100199505

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
