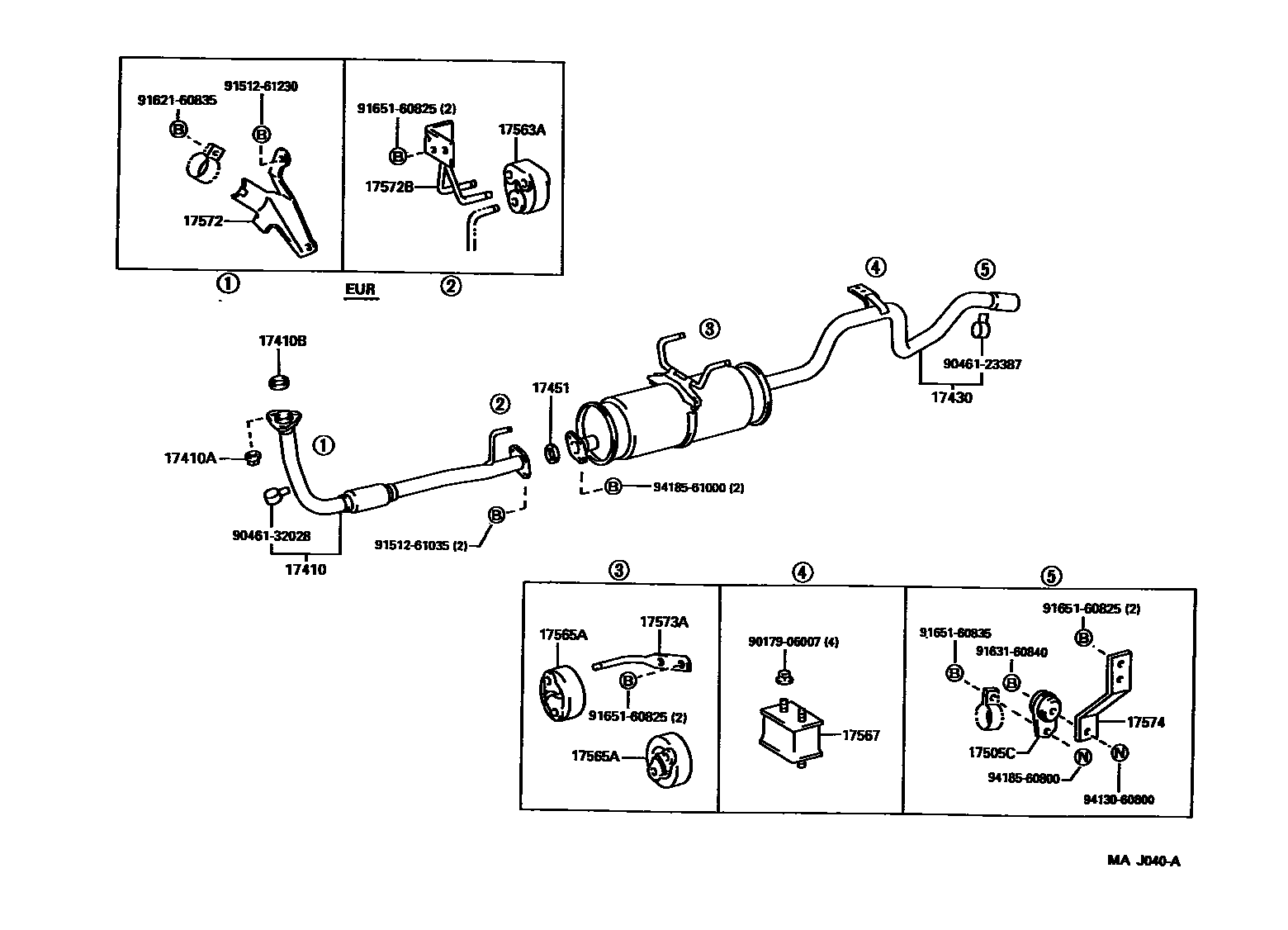

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-5B140i2L..LY100..EUR199505-199905

main17410-5B200i2L..LY100..GEN199505

main17410-5B390i2L..LY100..EUR199905

main17410-72220i2Y..YY100199505

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i2L,2Y..LY100,YY100199505

17410BGASKET, EXHAUST PIPE

main90917-06064i2Y..YY100199505

main90917-06066i2L..LY100199505

17430PIPE ASSY, EXHAUST, TAIL

main17430-5B650i2L..LY100..GEN199505-200103

sub17430-5B651

main17430-5B651i2L..LY100..GEN200103

main17430-5B660i2L..LY100..EUR199505-200103

sub17430-5B661

main17430-5B661i2L..LY100..EUR200103

main17430-72280i2Y..YY100199505

17451GASKET, EXHAUST PIPE

main90917-06039i2Y..YY100199505-200107

main90917-06045i2L..LY100199505-200108

17505CCUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)

main90917-08009i2L,2Y..LY100,YY100199505

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-54030i2L..LY100..EUR199505

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-63030i2L,2Y..LY100,YY100199505

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-61010i2L,2Y..LY100,YY100199505

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-54270i2L..LY100199505

main17571-71040i2Y..YY100199505

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-54200i2L..LY100..EUR199505

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17575-71050i2L,2Y..LY100,YY100199505

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-54060i2L,2Y..LY100,YY100199505

9017906007

main90179-06007

9046123387

main90461-23387

9046132028

main90461-32028

9151261035

main91512-61035

9151261230

main91512-61230

9162160835

main91621-60835

9163160840

main91631-60840

9165160825

main91651-60825

9165160835

main91651-60835

9413060800

main94130-60800

9418560800

main94185-60800

9418561000

main94185-61000

25 parts on this diagram · 2 diagrams in section
