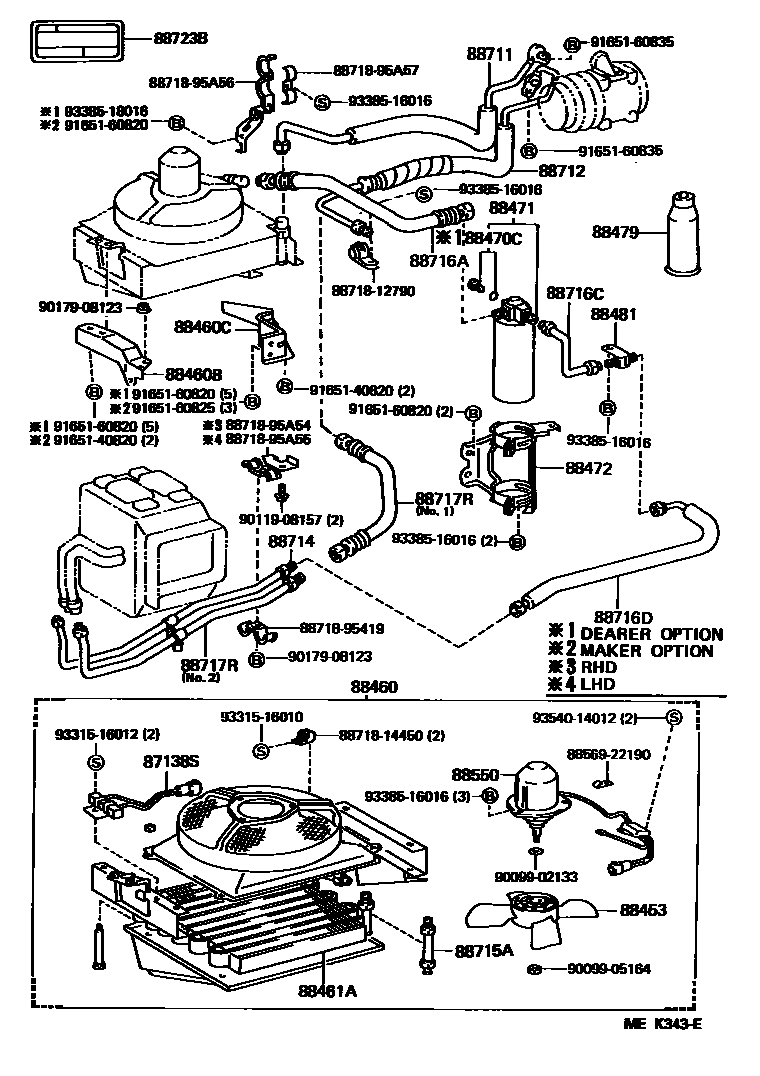

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

87138SRESISTOR, BLOWER

main87138-95410iLH80,YH81..ARL,GEN198708-199505

88453FAN, COOLING (FOR CONDENSER)

main88453-95A01iLH80,YH81..ARL,GEN198708-199309

88460CONDENSER ASSY, COOLER

main88460-26040iLH80,YH81..RHD..GEN¥59,400199108-199309

W(FRONT HEATER & AIR CONDITIONER)

main88460-26170iLH80,YH81..ARL,GEN¥65,200199309-199505

main88460-95A15iYH81..LHD..GEN¥60,000199108-199309

W(FRONT HEATER & FOOT VENTILATOR)

sub88460-26040¥59,400

main88460-95A15iLH80,YH81..ARL,GEN¥60,000198708-199108

sub88460-26040¥59,400

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95A60iLH80,YH81..ARL,GEN198708-199505

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95A57iLH80,YH81..ARL,GEN198708-199505

88461ACORE, COOLER CONDENSER

main88461-26030iLH80,YH81..ARL,GEN¥44,100199309-199505

main88461-95A04iLH80,YH81..ARL,GEN¥38,700198708-199309

88470CBOLT, FUSE

main88475-12020iLH80..ARL;YH81..ARL,GEN198708-199309

88471TANK, RECEIVER AIR CONDITIONER

main88471-16010iLH80,YH81..ARL¥7,100198708-199309

DEALER OPTION

main88471-20050iLH80,YH81..ARL,GEN¥6,500199309-199505

sub88471-34010¥4,790

main88471-95400iLH80,YH81..RHD..GEN¥6,600198708-199309

MAKER OPTION

sub88471-16010¥7,100

88472BRACKET, RECEIVER TANK, NO.1

main88472-26070iLH80,YH81..ARL,GEN199309-199505

main88472-95A10iLH80,YH81..ARL,GEN198708-199309

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iYH81..GEN198708-199109

400G

sub90986-02004

sub90986-02005

main90986-02002iYH81..ARL199102-199309

300G

sub90986-02004

main90986-02004iYH81..LHD..GEN198708-199309

250G

main90986-02007iLH80,YH81..ARL,GEN¥1,870199309-199505

250G

main90986-02008iLH80,YH81..ARL,GEN¥1,500199309-199505

200G

88481GLASS, SIGHT

main88407-95A01iYH81..LHD..GEN198708-198808

MAKER OPTION

sub88481-87002

main88481-87002iLH80,YH81..RHD..GEN198708-198808

DEALER OPTION

main88481-87002iLH80,YH81..ARL,GEN198808-199309

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iLH80,YH81..ARL,GEN¥21,900198708-199505

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-26380iYH81..ARL,GEN¥13,200199309-199505

main88711-26390iLH80..GEN¥13,300199309-199505

main88711-95A21iYH81..ARL,GEN¥13,300198708-199309

main88711-95A23iLH80..RHD¥14,000198708-198808

sub88711-26640¥7,300

main88711-95A25iLH80..RHD¥14,000198808-199309

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-26330iYH81..ARL,GEN¥13,300199309-199505

main88712-26340iLH80..GEN¥14,700199309-199505

main88712-95A25iLH80..RHD¥14,000198708-198808

sub88712-26520¥6,800

main88712-95A26iYH81..ARL,GEN¥14,000198708-199309

main88712-95A29iLH80..RHD¥13,000198808-199309

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88716-26410iLH80,YH81..RHD¥4,670199309-199505

main88716-26420iYH81..LHD..GEN¥4,640199309-199505

main88716-95A80iLH80,YH81..RHD¥4,710198708-199309

main88716-95A81iYH81..LHD..GEN¥4,600198708-199309

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-26190iLH80,YH81..ARL,GEN¥1,740199309-199505

main88715-95A03iLH80,YH81..ARL,GEN¥1,800198708-199309

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88721-26120iLH80,YH81..ARL,GEN¥9,300199309-199505

main88721-95A05iLH80,YH81..ARL,GEN¥8,100198708-199309

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-26390iLH80,YH81..ARL,GEN¥3,960199309-199505

main88716-95A82iLH80,YH81..ARL,GEN¥1,900198708-199309

88716DPIPE, COOLER REFRIGERANT LIQUID, D

main88721-26140iLH80,YH81..RHD¥11,600199309-199505

main88721-26150iYH81..LHD..GEN¥10,600199309-199505

main88721-95A06iLH80,YH81..RHD¥11,200198708-199309

main88721-95A07iYH81..LHD..GEN¥10,100198708-199309

88717RPIPE, COOLER REFRIGERANT SUCTION, R

main88712-26320iLH80,YH81..ARL,GEN¥11,600199309-199505

NO.1

main88712-95A27iLH80,YH81..ARL,GEN¥11,500198708-199309

NO.1

main88717-26350iLH80,YH81..RHD¥9,300199309-199505

NO.2

main88717-26360iYH81..LHD..GEN¥9,300199309-199505

NO.2

main88717-95A40iLH80,YH81..RHD¥9,200198708-199309

NO.2

main88717-95A53iYH81..LHD..GEN¥9,200198708-199309

NO.2

88723BLABEL, COOLER SERVICE CAUTION

main88723-12030iYH81..RHD199102-199309

main88723-12040iLH80..GEN199102-199309

main88723-20040iLH80,YH81..ARL,GEN199309-199505

8856922190CLAMP (FOR COOLER RELAY)

main88569-22190

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8871895419PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95419

8871895A55PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A55

8871895A56PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A56

8871895A57PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A57

8871896A54PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-96A54

9009902133

main90099-02133

9009905164

main90099-05164¥0

9011908157

main90119-08157¥140

9017908123

main90179-08123¥160

9165140820

main91651-40820¥90

9165160820

main91651-60820¥130

9165160825

main91651-60825¥140

9165160835

main91651-60835¥90

9331516010

main93315-16010¥130

9331516012

main93315-16012¥210

9338516016

main93385-16016¥80

9338518016

main93385-18016¥160

9354014012

main93540-14012¥120

42 parts on this diagram · 3 diagrams in section
