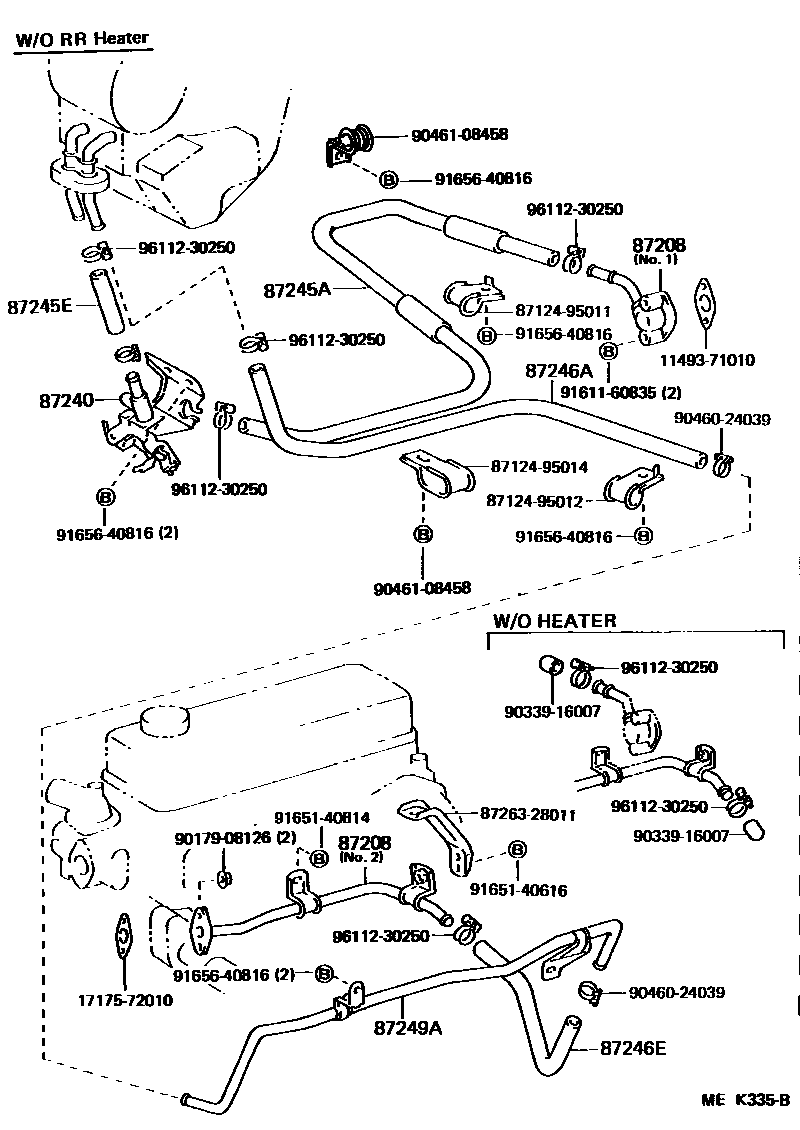

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-28010iYH81198708-199201

NO.1

main87208-28021iYH81198708-199505

NO.2

main87208-28500iYH81199201-199505

NO.1

main87208-95A03iLH80198708-198808

main87208-95A05iLH80..TW198708-198808

W(REAR HEATER)

main87208-95A11iYH81..TW..(ARL,EUR)198708-199203

W(REAR HEATER)

main87208-95A14iLH80..IV;LH80..EUR..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

main87208-95A14iLH80198808-199404

main87208-95A15iLH80..TW198808-199505

W(REAR HEATER)

87240VALVE ASSY, HEATER WATER

main87240-95407iLH80,YH81..RHD198708-198808

main87240-95408iLH80,YH81..LHD198708-198808

main87240-95409iLH80..GEN..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

main87240-95409iLH80,YH81..RHD198808-199404

main87240-95410iLH80,YH81..LHD198808-199505

87245AHOSE, HEATER WATER, INLET A

main87245-95039iLH80198708-198808

main87245-95045iYH81198708-199505

main87245-95056iLH80..IV;LH80..EUR..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

main87245-95056iLH80198808-199404

87245EHOSE, HEATER WATER, INLET E

main99556-30100iLH80,YH81198708-198808

*H,L=60

main99556-30135iLH80,YH81198808-199505

*H,L=135

sub99556-30200

main99556-30135iYH81;LH80..IV;LH80..EUR..CBU199404-199505

*H,L=135,IRELAND SPEC OR W(STD HEATER)

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30740iLH80..GEN..CBU199404-199505

*H,L=740,IRELAND SPEC OR W(STD HEATER)

sub99556-31000

main99556-30740iLH80,YH81..RHD198808-199505

*H,L=740

sub99556-31000

main99556-30980iLH80,YH81..LHD198708-199505

*H,L=980

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95051iYH81198708-199505

main87245-95053iLH80198708-198808

main87245-95056iLH80198808-199404

main87245-95056iLH80..IV;LH80..EUR..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

87249APIPE, HEATER WATER OUTLET, A

main87208-95A10iYH81198708-199505

1149371010GASKET, WATER SEAL PLATE

main11493-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712495011CLAMP, HEATER

main87124-95011

8712495012CLAMP, HEATER

main87124-95012

8712495014CLAMP, HEATER

main87124-95014

8726328011BRACKET, HEATER WATER PIPE, NO.1

main87263-28011

9017908126

main90179-08126

9033916007

main90339-16007

9046024039

main90460-24039

9046108458

main90461-08458

9161160835

main91611-60835

9165140616

main91651-40616

9165140814

main91651-40814

9165640816

main91656-40816

9611230250

main96112-30250

22 parts on this diagram · 4 diagrams in section
