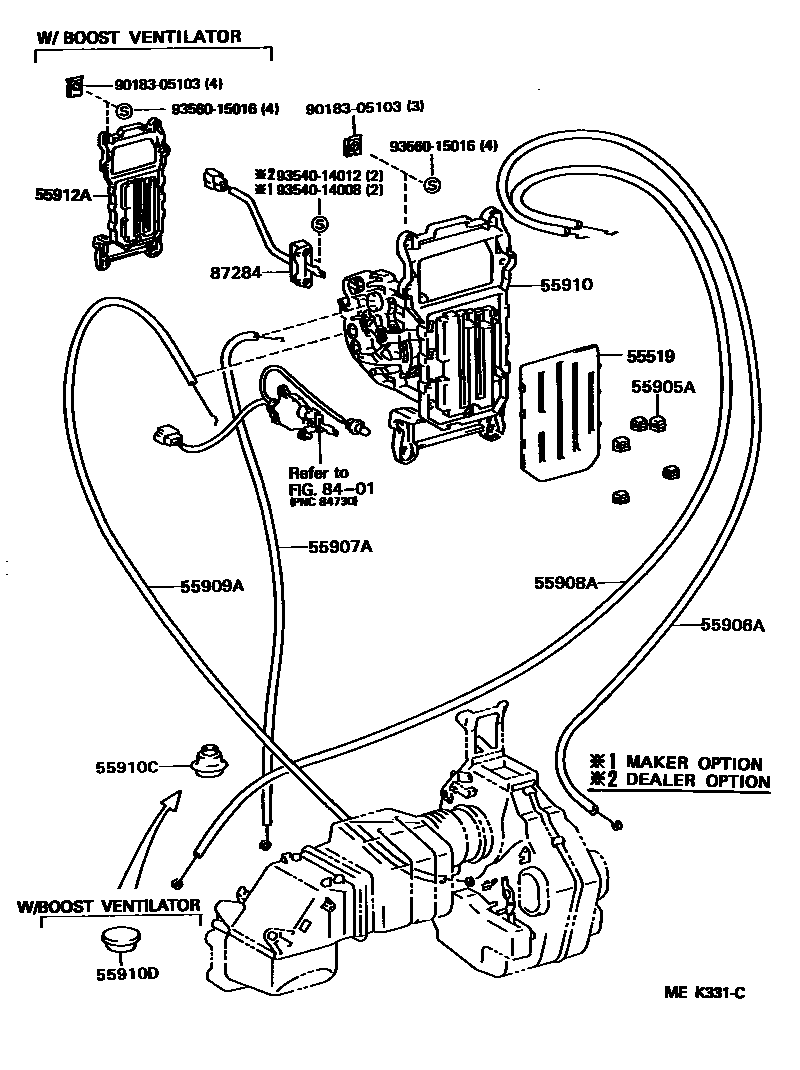

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55519PLATE, HEATER CONTROL NAME

main55519-95403iLH80,YH81..EUR,GEN198708-199505

W(BOOST VENTILATOR)

main55519-95404iLH80,YH81..GEN198708-199309

W(FOOT VENTILATOR)

main55519-95406iLH80..GEN..IV;YH81..RHD..GEN198708-199505

W(STD HEATER)

main55519-95406iLH80..GEN..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

main55519-95406iYH81..LHD..GEN198708-199505

W(STD HEATER) OR W(HEAVY HEATER)

55905AKNOB, HEATER CONTROL

main55905-10110iYH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN)198708-199505

WHITE

main55905-10110iYH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN)198708-199505

W(STD HEATER) OR W(HEAVY HEATER),WHITE

main55905-10110iLH80,YH81..GEN198708-199309

W(FOOT VENTILATOR),WHITE

main55905-10110iLH80,YH81..RHD..GEN198708-199404

W(STD HEATER),WHITE

main55905-95707iYH81..LHD..GEN198708-199505

W(HEATER) OR W(BOOST VENTILATOR),BLUE

main55905-95707iYH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR)198708-199505

BLUE

main55905-95707iLH80,YH81..RHD..GEN198708-199404

W(BOOST VENTILATOR) OR W(STD HEATER),BLUE

main55905-95707iYH81..LHD..GEN198708-199505

W(HEATER & AIR CONDITIONER) OR W(BOOST VENTILATOR & AIR CONDITIONER),BLUE

main55905-95707iYH81..LHD..GEN198708-199505

W(FRONT HEATER & AIR CONDITIONER),BLUE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36030iLH80..GEN..CBU199404-199505

IRELAND SPEC OR W(BOOST VENTILATOR) OR W(STD HEATER)

main55906-36030iLH80,YH81..RHD199110-199404

main55906-36050iLH80,YH81..LHD199110-199505

main55906-95404iLH80,YH81..RHD198708-199110

main55906-95406iLH80,YH81..LHD198708-199110

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36010iLH80..GEN..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

main55907-36010iLH80,YH81..RHD199110-199404

main55907-36030iLH80,YH81..LHD199110-199505

main55907-95404iLH80,YH81..RHD198708-199110

main55907-95406iLH80,YH81..LHD198708-199110

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55906-36090iLH80,YH81..GEN199111-199309

W(FOOT VENTILATOR)

main55908-95402iLH80,YH81..ARL,EUR198708-199309

W(BOOST VENTILATOR) OR W(STD HEATER)

main55908-95402iLH80,YH81..ARL,EUR198708-199309

W(BOOST VENTILATOR) OR W(STD HEATER) OR W(HEAVY HEATER)

main55908-95402iLH80,YH81199309-199404

main55908-95402iYH81;LH80..IV;LH80..EUR..CBU199404-199505

IRELAND SPEC OR W(BOOST VENTILATOR) OR W(STD HEATER)

main55908-95404iLH80,YH81..GEN198708-199111

W(FOOT VENTILATOR)

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iLH80,YH81..RHD198708-199404

main55909-95404iYH81..RHD;LH80..GEN..IV199404-199505

IRELAND SPEC OR W(STD HEATER)

main55909-95406iLH80,YH81..LHD198708-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36090iLH80..GEN..IV;YH81..RHD..GEN199404-199505

IRELAND SPEC OR W(STD HEATER)

main55910-36090iLH80..GEN..IV;YH81..RHD..GEN199110-199505

W(STD HEATER)

main55910-36090iYH81..LHD..GEN199110-199505

W(STD HEATER) OR W(HEAVY HEATER)

main55910-36100iLH80,YH81..EUR,GEN199110-199505

W(BOOST VENTILATOR)

main55910-36110iLH80,YH81..GEN199110-199309

W(FOOT VENTILATOR)

main55910-95409iLH80,YH81..RHD..GEN198708-199110

W(STD HEATER) OR W(HEAVY HEATER)

sub55910-36090

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

sub55907-36010

sub55907-36020

sub55907-36030

sub55907-36040

main55910-95409iYH81..LHD..GEN198708-199110

W(STD HEATER)

sub55910-36090

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

sub55907-36010

sub55907-36020

sub55907-36030

sub55907-36040

main55910-95410iLH80,YH81..EUR,GEN198708-199110

W(BOOST VENTILATOR)

sub55910-36100

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

main55910-95411iLH80,YH81..GEN198708-199110

W(FOOT VENTILATOR)

sub55910-36110

sub55906-36090

sub55906-36100

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-24215iLH80..GEN..CBU198708-199505

55910DPLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

main90950-01127iLH80,YH81..EUR,GEN198708-199505

55912AHOUSING, HEATER CONTROL

main55912-95404iLH80,YH81..EUR,GEN199309-199505

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iLH80,YH81..ARL,GEN198708-199505

9018305103

main90183-05103

9354014008

main93540-14008

9354014012

main93540-14012

9356015016

main93560-15016

16 parts on this diagram · 5 diagrams in section
