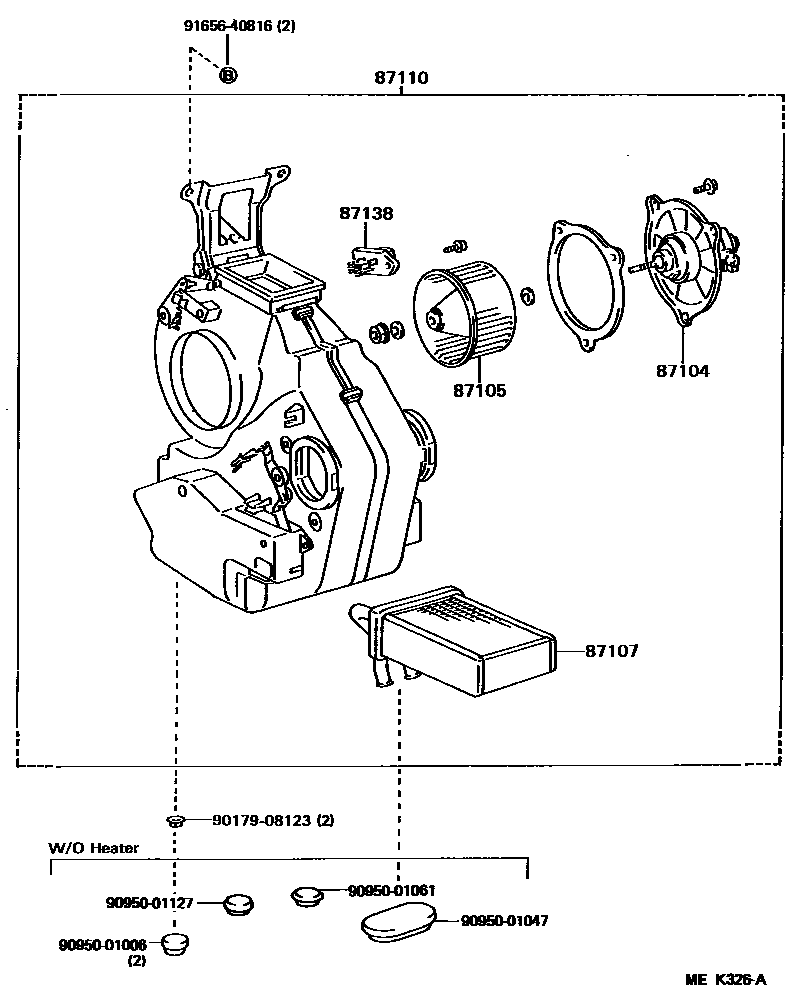

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95404iLH80,YH81198708-199505

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12060iLH80,YH81..LHD198708-199505

main87105-16020iYH81..RHD;LH80..GEN..IV199404-199505

IRELAND SPEC OR W(BOOST VENTILATOR) OR W(STD HEATER)

main87105-16020iLH80,YH81..RHD198708-199404

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95406iLH80;YH81..RHD;YH81..EUR198708-199404

main87107-95406iYH81..LHD..GEN198708-199505

W(STD HEATER)

main87107-95406iLH80..IV;YH81..RHD;YH81..EUR;LH80..EUR..CBU199404-199505

IRELAND SPEC OR W(STD HEATER)

main87107-95407iLH80,YH81..LHD198708-199505

W(HEAVY HEATER)

87110HEATER ASSY

main87110-95436iLH80,YH81..RHD198708-199404

main87110-95436iYH81..RHD;LH80..GEN..IV199404-199505

IRELAND SPEC OR W(STD HEATER)

main87110-95437iLH80,YH81..EUR198708-199505

W(STD HEATER)

sub87110-95442

main87110-95442iLH80,YH81..LHD198708-199505

W(HEAVY HEATER)

87138RESISTOR, HEATER BLOWER

main87138-26020iLH80..GEN..CBU199404-199505

IRELAND SPEC OR W(BOOST VENTILATOR) OR W(STD HEATER)

main87138-26020iLH80,YH81199110-199404

main87138-95409iLH80,YH81198708-199110

9017908123

main90179-08123

9095001006

main90950-01006

9095001047

main90950-01047

9095001061

main90950-01061

9095001127

main90950-01127

9165640816

main91656-40816

11 parts on this diagram · 3 diagrams in section
