WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95441iLH80,YH81..RHD198708-199505

main85110-95443iLH80,YH81..LHD198708-199505

85160LINK ASSY, WINDSHIELD WIPER

main85160-95409iLH80,YH81..RHD198708-199505

main85160-95410iLH80,YH81..LHD198708-199505

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iLH80,YH81198708-199505

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95400iLH80,YH81198708-199505

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iLH80,YH81198708-199312

main90179-08209iLH80,YH81199312-199505

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95700iLH80,YH81198708-199505

85190ARM ASSY, WINDSHIELD WIPER

main85190-95417iLH80,YH81..RHD198708-199505

RH

main85190-95418iLH80,YH81..LHD198708-199505

RH

main85210-95402iLH80,YH81..RHD198708-199505

LH

main85210-95403iYH81..LHD..GEN198708-199505

LH

main85210-95404iLH80,YH81..EUR198708-199505

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95J00iLH80,YH81198708-199505

85220BLADE ASSY, WINDSHIELD WIPER

main85212-37010iLH80,YH81..RHD199002-199505

RH

sub85220-12651

main85220-12500iLH80,YH81..LHD198708-199002

LH

main85220-12501iLH80,YH81..LHD199002-199505

LH

sub85220-12500

main85220-12510iLH80,YH81..LHD198708-199002

RH

main85220-12511iLH80,YH81..LHD199002-199505

RH

sub85220-12510

main85220-12560iLH80,YH81..RHD198708-199002

LH

sub85220-12561

main85220-12561iLH80,YH81..RHD199002-199505

LH

sub85222-10220

main85220-12570iLH80,YH81..RHD198708-199002

RH

sub85212-37010

85221BLADE, WINDSHIELD WIPER

main85221-12210iLH80,YH81..LHD198708-199505

sub85214-12H90

main85221-12230iLH80,YH81..RHD198708-199505

sub85214-12H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95400iLH80,YH81..RHD198708-199505

main85269-95401iLH80,YH81..LHD198708-199505

9009900913

main90099-00913

9165640818

main91656-40818

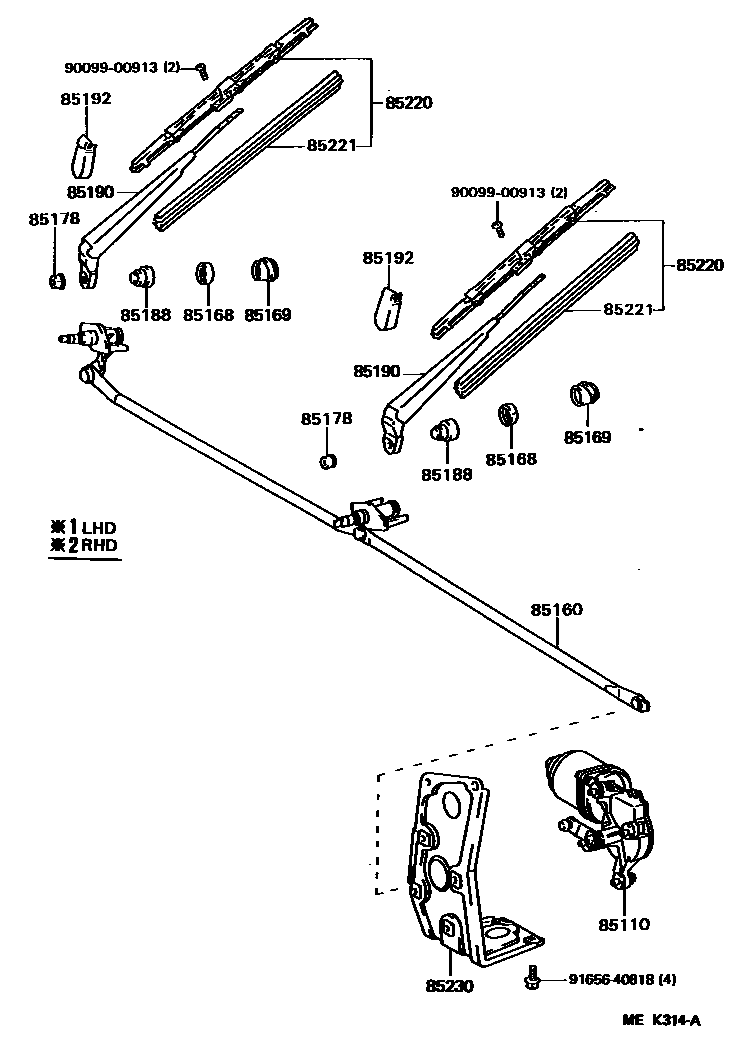

13 parts on this diagram · 1 diagram in section
