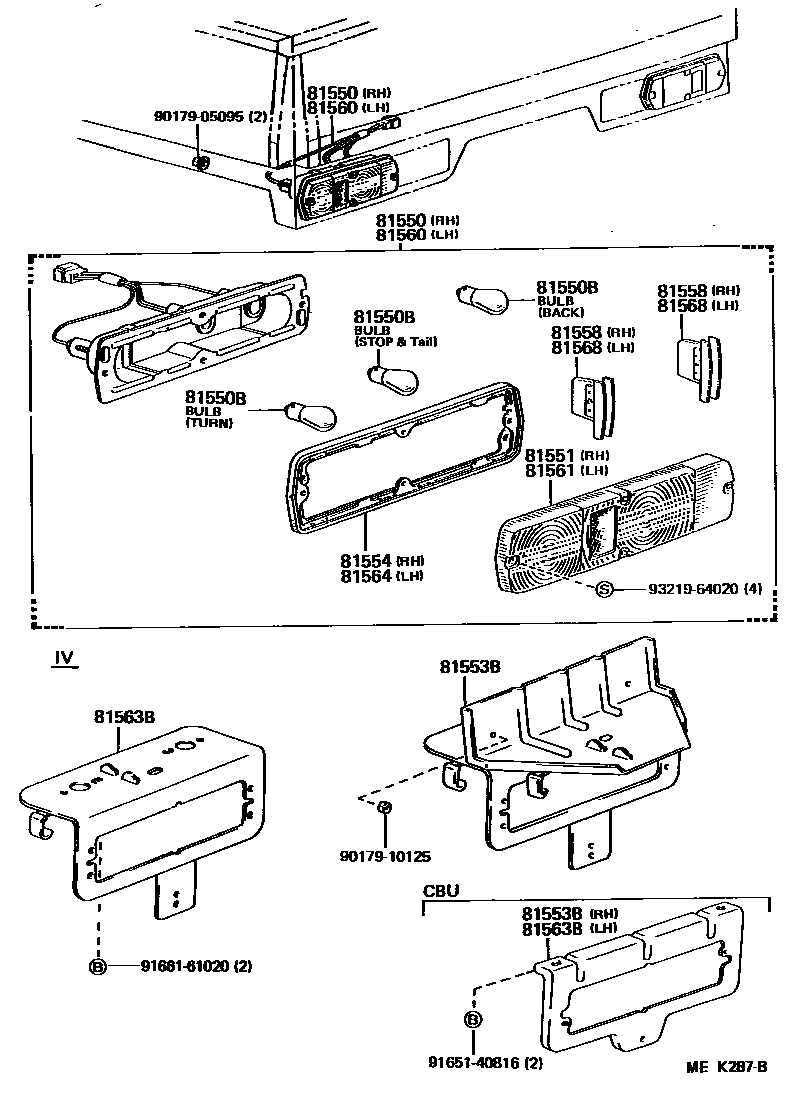

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-26120iLH80,YH81..ARL,EUR199408-199505

IRELAND SPEC

main81550-95A10iLH80,YH81..GEN198708-199505

main81550-95A11iLH80..GEN..CBU199009-199408

IRELAND SPEC

sub81550-26120

main81550-95A11iLH80,YH81..ARL,EUR198708-199408

sub81550-26120

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLH80..GEN..CBU198708-199505

12V 21W,TURN,BACK

main99132-11210iLH80..GEN..CBU199203-199505

12V 21W,IRELAND SPEC,TURN,BACK

main99132-11210iLH80,YH81..GEN199203-199505

12V 21W

main99132-21210iLH80,YH81..ARL,EUR199203-199505

12V 21/5W,IRELAND SPEC,STOP & TAIL

main99132-21210iLH80,YH81198708-199505

12V 21/5W,STOP & TAIL

main99132-21210iLH80,YH81..GEN199203-199505

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLH80,YH81..GEN198708-199505

main81551-26040iLH80,YH81..ARL,EUR198708-199505

sub81551-60180

main81551-26040iLH80..GEN..CBU199009-199505

IRELAND SPEC

sub81551-60180

81553BBRACKET SUB-ASSY, RR COMB LAMP, RH

main75103-25011iLH80,YH81..IV198708-199505

main75135-95A00iLH80,YH81..T3..EUR..CBU198708-199505

main75135-95A00iLH80..GEN..CBU199009-199505

IRELAND SPEC

main75135-95A01iLH80,YH81..TW..EUR..CBU198708-199505

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLH80,YH81..ARL,GEN198708-199505

main81552-26040iLH80..GEN..CBU199009-199505

IRELAND SPEC

main81552-26040iLH80,YH81..EUR198708-199505

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLH80,YH81..GEN198708-199505

main81557-26040iLH80..GEN..CBU199009-199505

IRELAND SPEC

main81557-26040iLH80,YH81..ARL,EUR198708-199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-26120iLH80,YH81..ARL,EUR199408-199505

IRELAND SPEC

main81560-95A10iLH80,YH81..GEN198708-199505

main81560-95A11iLH80..GEN..CBU199009-199408

IRELAND SPEC

sub81560-26120

main81560-95A11iLH80,YH81..EUR198708-199408

sub81560-26120

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLH80,YH81..GEN198708-199505

main81561-26040iLH80,YH81..EUR198708-199505

sub81561-60080

main81561-26040iLH80..GEN..CBU199009-199505

IRELAND SPEC

sub81561-60080

81563BBRACKET SUB-ASSY, RR COMB LAMP, LH

main75104-25011iLH80,YH81..IV198708-199505

main75135-95A00iLH80..GEN..CBU199009-199505

IRELAND SPEC

main75135-95A00iLH80,YH81..T3..EUR..CBU198708-199505

main75135-95A01iLH80,YH81..TW..EUR..CBU198708-199505

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLH80,YH81..ARL,GEN198708-199505

main81562-26040iLH80,YH81..ARL,EUR198708-199505

main81562-26040iLH80..GEN..CBU199009-199505

IRELAND SPEC

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLH80,YH81..ARL,GEN198708-199505

main81557-26040iLH80,YH81..EUR198708-199505

main81557-26040iLH80..GEN..CBU199009-199505

IRELAND SPEC

9017905095

main90179-05095

9017910125

main90179-10125

9165140816

main91651-40816

9166161020

main91661-61020

9321964020

main93219-64020

16 parts on this diagram · 1 diagram in section
