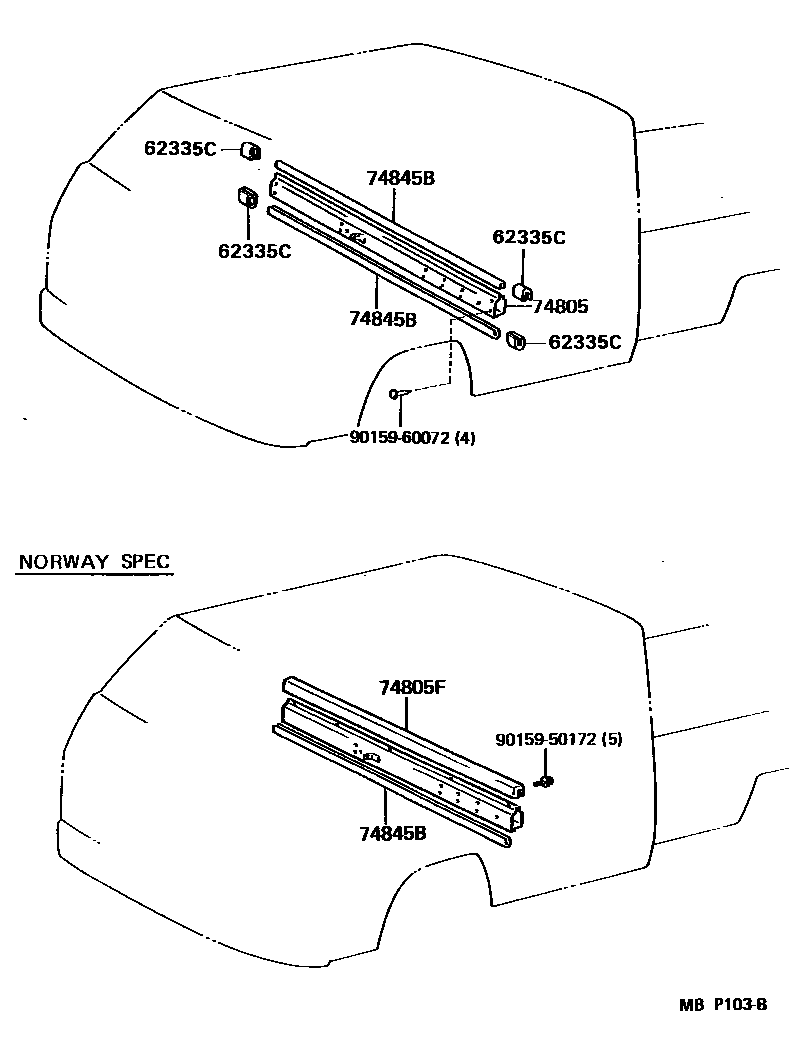

SEPARATOR & SEPARATOR CURTAIN

62335CCOVER, SEPARATOR BAR

main62335-92600-06iLH80..TW..CBU198708-199109

BROWN,TRIM4#

sub62335-92600

main62335-92600-06iLH80..TW..CBU198708-199109

NORWAY SPEC,BROWN,TRIM4#

sub62335-92600

main62335-92600-B0iLH80..TW..CBU199109-199505

GRAY,TRIM1#

sub62335-92600

main62335-92600-B0iLH80..TW..CBU199109-199505

NORWAY SPEC,GRAY,TRIM1#

sub62335-92600

74805SEPARATOR SUB-ASSY

main74805-95403iLH80,YH81..LHD..TW198708-199505

main74805-95404iYH81..ARL..CBU198708-199203

main74805-95A08iLH80..TW..CBU198708-199505

NORWAY SPEC

74805FBAR SUB-ASSY, SEPARATOR, A

main74810-95A00-06iLH80..TW..CBU198708-199109

DARK BROWN,TRIM4#

sub74810-95A00

main74810-95A00-B0iLH80..TW..CBU199109-199505

GRAY,TRIM1#

sub74810-95A00

74845BORNAMENT, FRONT SEATBACK PANEL, C

main74845-95400-06iLH80..TW..CBU198708-199109

NORWAY SPEC,BROWN,TRIM4#

main74845-95400-06iLH80..TW..CBU198708-199109

BROWN,TRIM4#

main74845-95400-B0iLH80..TW..CBU199109-199505

NORWAY SPEC,GRAY,TRIM1#

main74845-95400-B0iLH80..TW..CBU199109-199505

GRAY,TRIM1#

9015950172

main90159-50172

9015960072

main90159-60072

6 parts on this diagram · 1 diagram in section
