FRONT DOOR WINDOW REGULATOR & HINGE

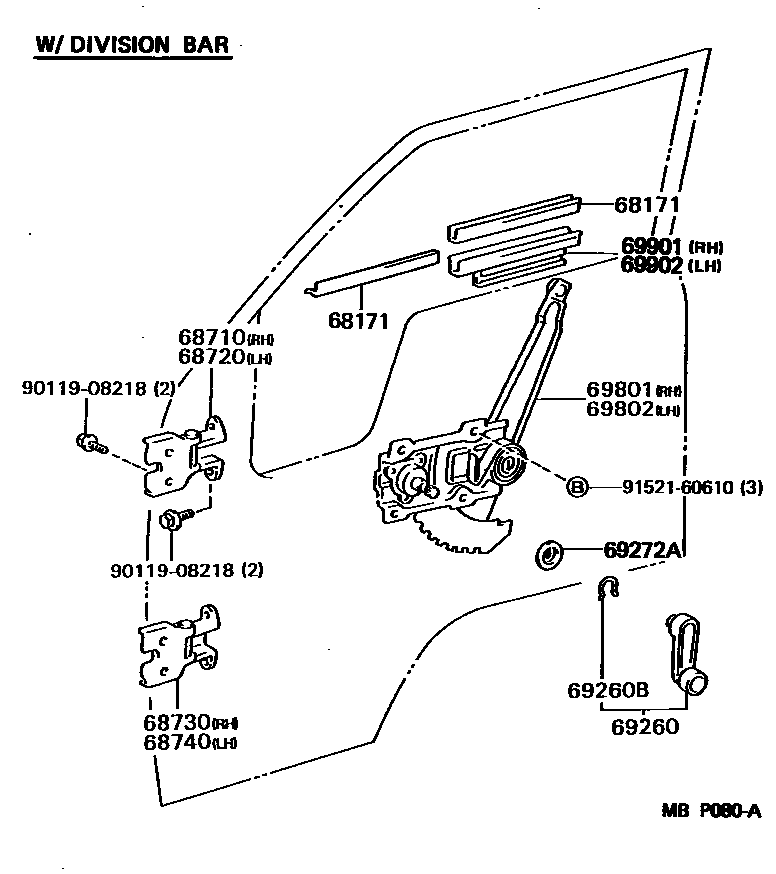

Parts diagram
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
main68173-22010i198808-199505
sub69971-95110
main68219-95400i198708-198808
RR
main68219-95400i198808-199505
W(DIVISION BAR),RR
main68221-95401i198708-198808
FR
main68221-95401i198808-199505
W(DIVISION BAR),FR
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-95702i198708-199505
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68710-95702i198708-199505
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68710-95702i198708-199505
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68710-95702i198708-199505
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-10040-06i198708-199109
BROWN,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-08i199109-199308
BLUISH GRAY,TRIM1#
sub69260-10040
sub69260-16010
main69260-10040-B1i199308-199505
BLUISH GRAY,TRIM1#
sub69260-10040
sub69260-16010
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198708-199505
sub90520-01274
69272APLATE, DOOR WINDOW REGULATOR HANDLE
main69272-30010-08i199109-199505
NATURAL WHITE,TRIM1#
sub69272-30010
main69272-30010-08i198708-199109
NATURAL WHITE,TRIM4#
sub69272-30010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-95404i198708-198808
main69810-95404i198808-199505
W(DIVISION BAR)
main69810-95405i198708-198808
main69810-95407i198808-199505
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-95406i198708-198808
main69820-95406i198808-199505
W(DIVISION BAR)
main69820-95407i198708-198808
main69820-95409i198808-199505
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-95403i198708-198808
main69901-95403i198808-199505
W(DIVISION BAR)
main69901-95404i198808-199505
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-95403i198708-198808
main69901-95403i198808-199505
W(DIVISION BAR)
main69901-95404i198808-199505
9011908218
main90119-08218
9152160610
main91521-60610

14 parts on this diagram · 2 diagrams in section
