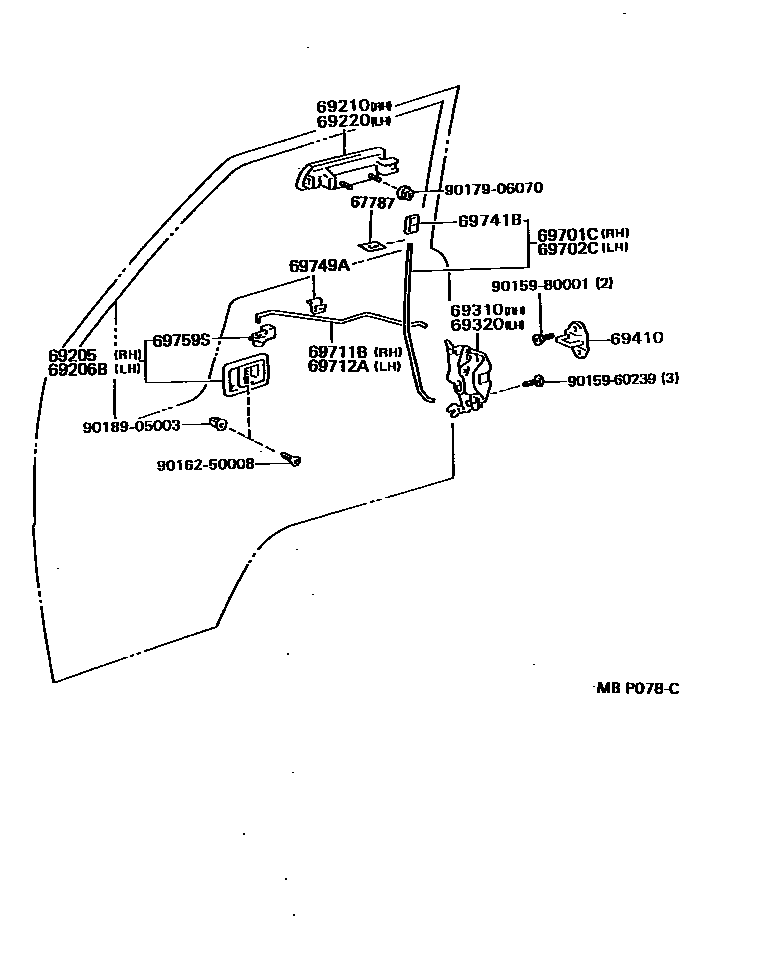

FRONT DOOR LOCK & HANDLE
67787SILENCER, FRONT DOOR LOCKING BUTTON KNOB
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69310LOCK ASSY, FRONT DOOR, RH
IRELAND SPEC & W(DIVISION BAR)
W(DIVISION BAR)
69320LOCK ASSY, FRONT DOOR, LH
IRELAND SPEC & W(DIVISION BAR)
W(DIVISION BAR)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
BLACK,TRIM4#
BLACK,TRIM1#
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
BLACK,TRIM4#
BLACK,TRIM1#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
9015960239
main90159-60239
9015980001
main90159-80001
9016250008
main90162-50008
9017906070
main90179-06070
9018905003
main90189-05003
20 parts on this diagram · 1 diagram in section
