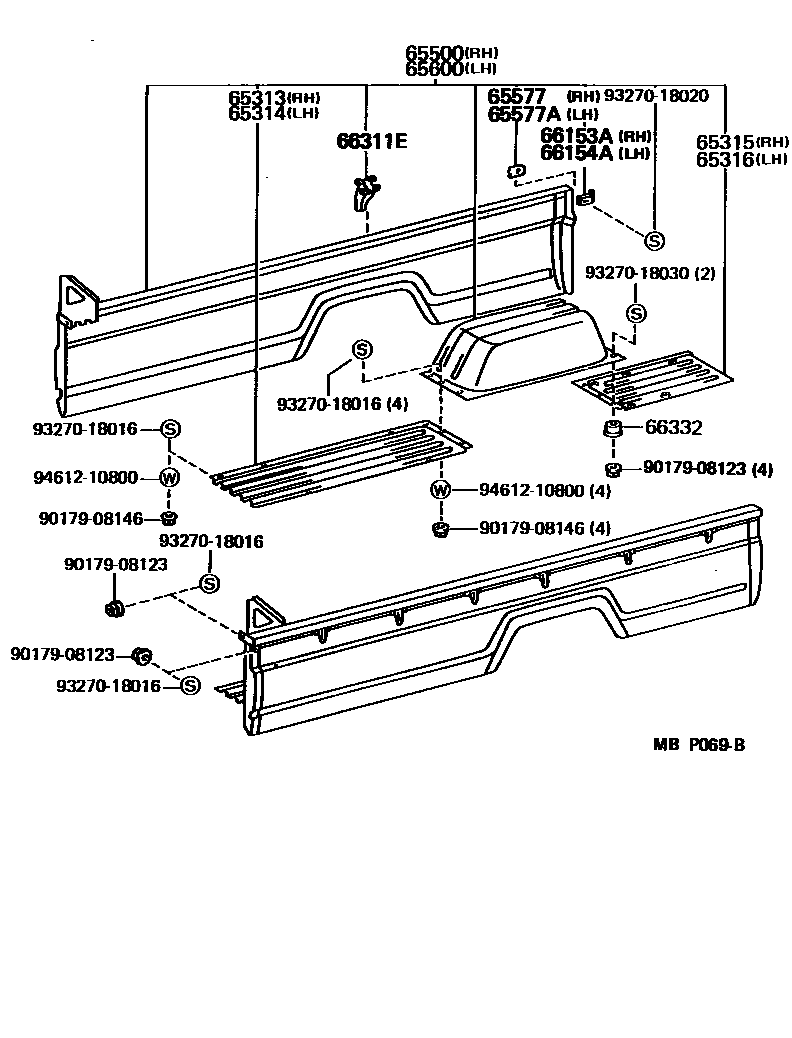

REAR BODY SIDE PANEL

0001 1 0002 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-25020iLH80..TW..CBU199210-199505

main65313-95027iLH80,YH81..TW..CBU198708-199210

sub65313-25020

65314PANEL, FLOOR FRONT CORNER, LH

main65314-25030iLH80..TW..CBU199210-199505

main65314-95027iLH80,YH81..TW..CBU198708-199210

sub65314-25030

65315PANEL, FLOOR REAR CORNER, RH

main65315-25010iLH80..TW..CBU199210-199505

main65315-95405iLH80,YH81..TW..CBU198708-199210

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-25010iLH80..TW..CBU199210-199505

main65316-95405iLH80,YH81..TW..CBU198708-199210

sub65316-25010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25050iLH80,YH81..T3..CBU199109-199505

W(SIDE GATE SUPPORT)

sub65500-25051

main65500-25080iLH80..TW..CBU199210-199505

main65500-26030iLH80,YH81..T3..CBU199008-199109

W(SIDE GATE SUPPORT)

sub65500-25030

main65500-26040iLH80,YH81..T3..CBU199008-199109

main65500-26080iLH80,YH81..T3..CBU199109-199505

main65500-95070iLH80,YH81..TW..CBU198708-199210

sub65500-25080

main65500-95A10iLH80,YH81..T3..CBU198708-199008

W(SIDE GATE SUPPORT)

sub65500-26030

main65500-95A11iLH80,YH81..T3..CBU198708-199008

sub65500-26040

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iLH80,YH81..TW..CBU198708-199505

65577ARETAINER, TAIL GATE FEMALE

main65577-95012iLH80,YH81..TW..CBU198708-199505

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-25050iLH80,YH81..T3..CBU199109-199505

W(SIDE GATE SUPPORT)

sub65600-25051

main65600-25080iLH80..TW..CBU199210-199505

main65600-26030iLH80,YH81..T3..CBU199008-199109

W(SIDE GATE SUPPORT)

sub65600-25030

main65600-26040iLH80,YH81..T3..CBU199008-199109

main65600-26080iLH80,YH81..T3..CBU199109-199505

main65600-95072iLH80,YH81..TW..CBU198708-199210

sub65600-25080

main65600-95A09iLH80,YH81..T3..CBU198708-199008

W(SIDE GATE SUPPORT)

sub65600-26030

main65600-95A10iLH80,YH81..T3..CBU198708-199008

sub65600-26040

66153ALATCH, TAIL GATE FEMALE, RH

main66153-26010iLH80,YH81..T3..CBU199109-199505

main66153-95012iLH80,YH81..TW..CBU198708-199505

main66153-95A01iLH80,YH81..T3..CBU198708-199109

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iLH80,YH81..TW..CBU198708-199505

main66154-26010iLH80,YH81..T3..CBU199109-199505

main66154-95A01iLH80,YH81..T3..CBU198708-199109

66311EHOOK, ROPE

main66311-90K00iLH80..TW..CBU199210-199505

main66311-95010iLH80,YH81..TW..CBU198708-199210

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00iLH80,YH81..TW..CBU198708-199505

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

18 parts on this diagram · 2 diagrams in section
