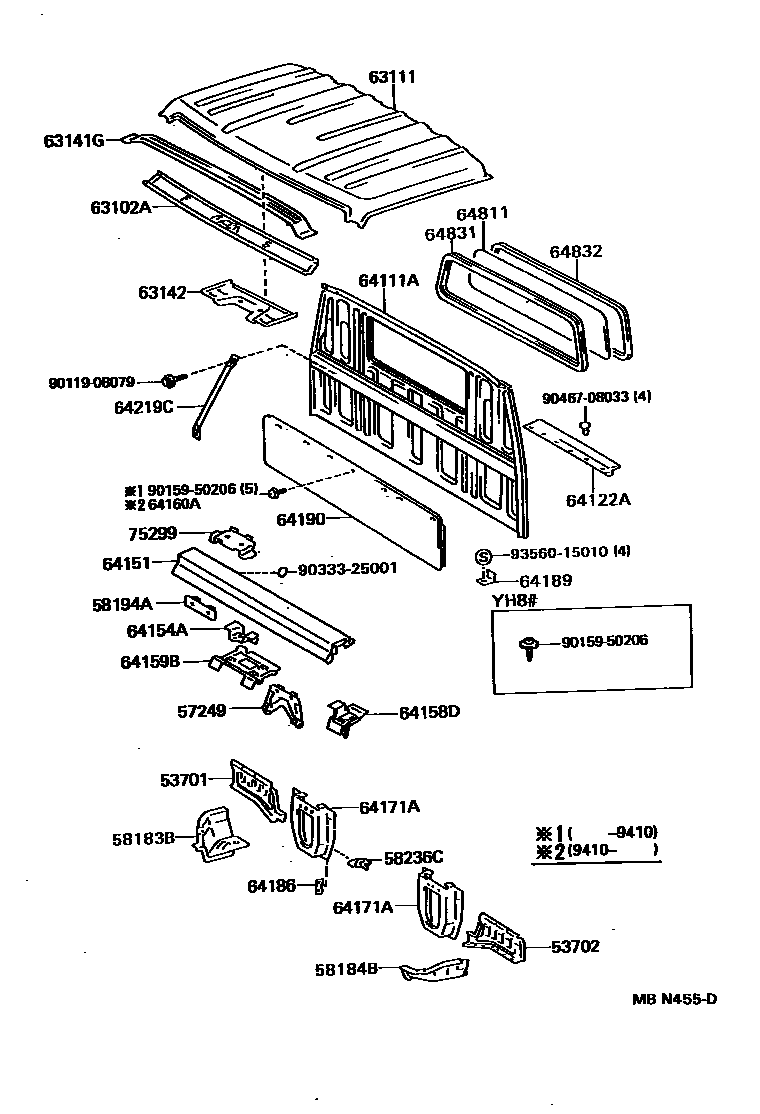

ROOF PANEL & BACK PANEL

0001 1 0002 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53717-95411iLH80,YH81..TW198708-199505

main53717-95413iYH81..TW..GEN198808-199008

sub53717-95411

main53717-95A03iLH80,YH81..T3198708-199505

main53717-95A05iLH80..5F..T3;YH81..T3..GEN198808-199008

sub53717-95A03

53702APRON SUB-ASSY, FRONT FENDER, LH

main53718-95412iLH80,YH81..TW198708-199505

main53718-95414iYH81..TW..GEN198808-199008

sub53718-95412

main53718-95A02iLH80,YH81..T3198708-199505

main53718-95A03iYH81..T3..GEN;LH80..T3..(EUR,GEN)198808-199008

IRELAND SPEC

sub53718-95A02

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95A00iYH81198912-199505

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95405iLH80,YH81198708-199505

main58183-95406iYH81..GEN;LH80..5F..T3198808-199008

sub58183-95405

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95404iLH80..TW;LH80..4FC;YH81..ARL,EUR198708-199505

main58184-95405iYH81..GEN;LH80..5F..T3198808-199008

sub58184-95404

58194ARETAINER, ENGINE COVER HINGE

main58194-95400iLH80198912-199505

58236CBRACKET, CLUTCH TUBE

main58236-95A00iLH80,YH81..5F..T3198708-199505

sub58236-25010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418iLH80,YH81198708-199505

sub63132-37010

main63132-95420iLH80,YH81198708-199505

W(ROOF VENTILATOR)

sub63132-37010

63111PANEL, ROOF

main63111-37010iLH80,YH81..T3199004-199505

main63111-37020iLH80,YH81..T3199004-199505

W(ROOF VENTILATOR)

main63111-95409iLH80,YH81..T3198708-199004

sub63111-37010

sub63141-37010

main63111-95410iLH80,YH81..T3198708-199004

W(ROOF VENTILATOR)

sub63111-37020

sub63141-37010

main63111-95416iLH80,YH81..TW198708-199505

W(ROOF VENTILATOR)

main63111-95417iLH80,YH81..TW198708-199505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iLH80,YH81..T3199004-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLH80,YH81..T3198708-199505

64111APANEL, BACK

main64100-25010iYH81..ARL199107-199505

W(HEADREST)

sub64100-25011

main64100-25020iLH80,YH81..RHD..GEN199107-199505

sub64100-25021

main64100-25040iLH80..ARL199107-199203

W(HEADREST)

sub64100-25041

main64100-25060iLH80..ARL199107-199203

sub64100-25061

main64100-95036iLH80,YH81..LHD..T3198708-199505

sub64100-25140

main64100-95037iLH80,YH81..RHD..T3198708-199107

sub64100-25150

main64100-95038iYH81..LHD..T3198708-199505

W(HEADREST)

sub64100-25160

main64100-95038iYH81..LHD..T3;LH80..T3..EUR..CBU198712-198808

FINLAND SPEC OR W(HEADREST)

sub64100-25160

main64100-95040iLH80..GEN;YH81..RHD..T3198708-199107

W(HEADREST)

sub64100-25180

main64100-95041iLH80..ARL198808-199107

W(HEADREST)

sub64100-25190

main64100-95043iLH80..ARL198808-199107

sub64100-25210

main64100-95044iLH80..T3..EUR198808-199505

sub64100-25220

main64100-95045iLH80..T3..EUR198808-199505

W(HEADREST)

sub64100-25230

main64100-95450iLH80,YH81..TW198708-199505

sub64111-95412

sub63218-95402

sub64116-95A01

sub64117-95400

sub64119-95A01

main64100-95A12iYH81..T3..EUR..CBU198901-199505

NORWAY SPEC

sub64100-26110

main64100-95A13iYH81..T3..EUR..CBU198902-199505

NORWAY SPEC & W(FABRIC SEAT)

sub64100-26120

main64100-95A13iLH80..T3..EUR..CBU198901-199505

NORWAY SPEC

sub64100-26120

64122ABAFFLE, DUST REAR BODY

main64122-25030iLH80,YH81..T3..CBU199210-199505

main64122-37060iLH80..TW199210-199505

sub64122-37061

main64122-95A03iLH80,YH81..T3198708-199210

main64122-95A06iLH80,YH81..TW198708-199210

64151FRAME, BACK

main64151-25020iLH80,YH81..RHD..T3199107-199309

sub64151-25021

sub90333-25001

main64151-25021iLH80,YH81..RHD199309-199505

main64151-25030iLH80,YH81..LHD..T3199107-199505

main64151-37010iYH81..ARL..CBU199107-199203

sub64151-37011

sub90333-25001

main64151-37050iLH80,YH81..LHD..TW199107-199505

main64151-95028iLH80,YH81..RHD..T3198912-199107

main64151-95029iLH80,YH81..LHD..T3198912-199107

main64151-95408iLH80,YH81..LHD..TW198912-199107

main64151-95409iYH81..ARL..CBU198912-199107

64154ARETAINER, BACK FRAME SHIFT CONTROL LINK

main64154-95A00iLH80,YH81..5F..T3198912-199505

64158DBRACKET, BACK FRAME SHIFT CONTROL LINK, NO.1

main64158-95A00iLH80,YH81..LHD..T3198912-199505

main64158-95A01iLH80,YH81..LHD..TW198912-199505

64159BBRACKET, BACK FRAME SHIFT CONTROL LINK

main64159-95A00iLH80,YH81..5F..T3198912-199505

main64159-95A01iLH80,YH81..TW198912-199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0iLH80..T3199410-199505

BLACK,TRIM1#

sub90467-06171

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25010iLH80,YH81..T3199107-199505

sub64025-25011

main64025-25020iLH80,YH81..TW199107-199505

main64171-95408iLH80,YH81..T3198708-199107

main64171-95410iLH80,YH81..TW198708-199107

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00iLH80..GEN..CBU198708-199505

IRELAND SPEC

64189CLAMP, BACK PANEL SILENCER

main64189-95400iLH80..T3198708-199505

64190SILENCER ASSY, BACK PANEL

main64190-95015iLH80..RHD198708-199505

main64190-95016iLH80..T3..EUR198708-199505

64219CSTAY, BACK PANEL

main64219-25010iLH80..RHD199109-199505

64811GLASS, BACK WINDOW

main64811-37020iLH80,YH81..T3..GEN199109-199505

*TEM,T=3.5,BRONZE

main64811-95409iLH80,YH81..T3198708-199505

*TEM,T=3.5

main64811-95410iLH80,YH81..TW198708-199505

*TEM,T=3.5

sub64811-37080

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95406iLH80,YH81198708-199505

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iLH80,YH81..T3198708-199206

sub64832-95013

main64832-95013iLH80,YH81..TW198708-199505

sub64832-37040

75299BASE, JACK HOLDER

main75299-95A00iLH80,YH81..T3198912-199505

9011908079

main90119-08079

9015950206

main90159-50206

9033325001

main90333-25001

9046708033

main90467-08033

9356015010

main93560-15010

32 parts on this diagram · 2 diagrams in section
