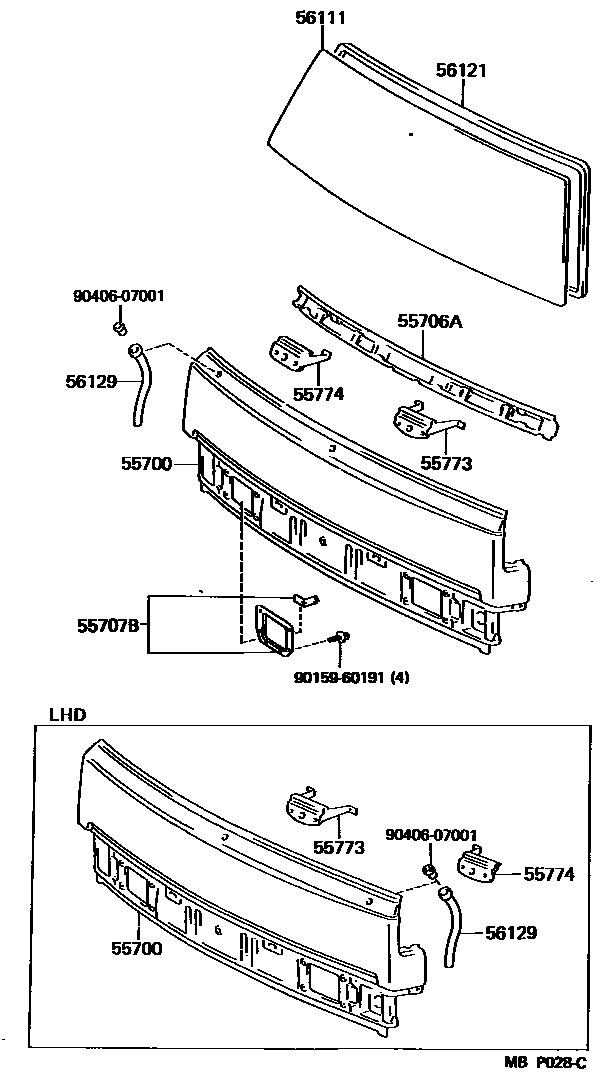

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95A37iLH80,YH81..RHD199210-199505

main55701-95A37iLH80..GEN..CBU198708-199210

IRELAND SPEC

main55701-95A38iLH80,YH81..RHD198708-199210

sub55701-95A37

main55701-95A39iYH81..LHD..GEN198708-199210

sub55701-95A40

main55701-95A40iLH80,YH81..LHD198708-199505

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iLH80,YH81..RHD198708-199505

main55706-95406iLH80,YH81..LHD198708-199505

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iYH81;LH80..IV;LH80..EUR..CBU198708-199505

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iLH80,YH81198708-199505

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iLH80,YH81..RHD198708-199505

main55774-95403iLH80,YH81..LHD198708-199505

56111GLASS, WINDSHIELD

main56111-37010iLH80,YH81..ARL199109-199505

*TL,T=5.7

main56111-37020iLH80,YH81..T3..GEN199109-199505

*LAM,T=5.7,BRONZE

main56111-95415iLH80,YH81..EUR,GEN198708-199209

*ZT,T=5.0

sub56111-95416

main56111-95416iLH80,YH81..ARL198708-199109

*LAM,T=5.3

sub56111-95417

main56111-95417iLH80,YH81..GEN198708-199109

*LAM,T=5.3,W(TOP SHADE)

56121WEATHERSTRIP, WINDSHIELD

main56121-95A06iLH80,YH81198708-199505

56129HOSE, WINDSHIELD DRAIN

main56129-95400iLH80,YH81198708-199505

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
