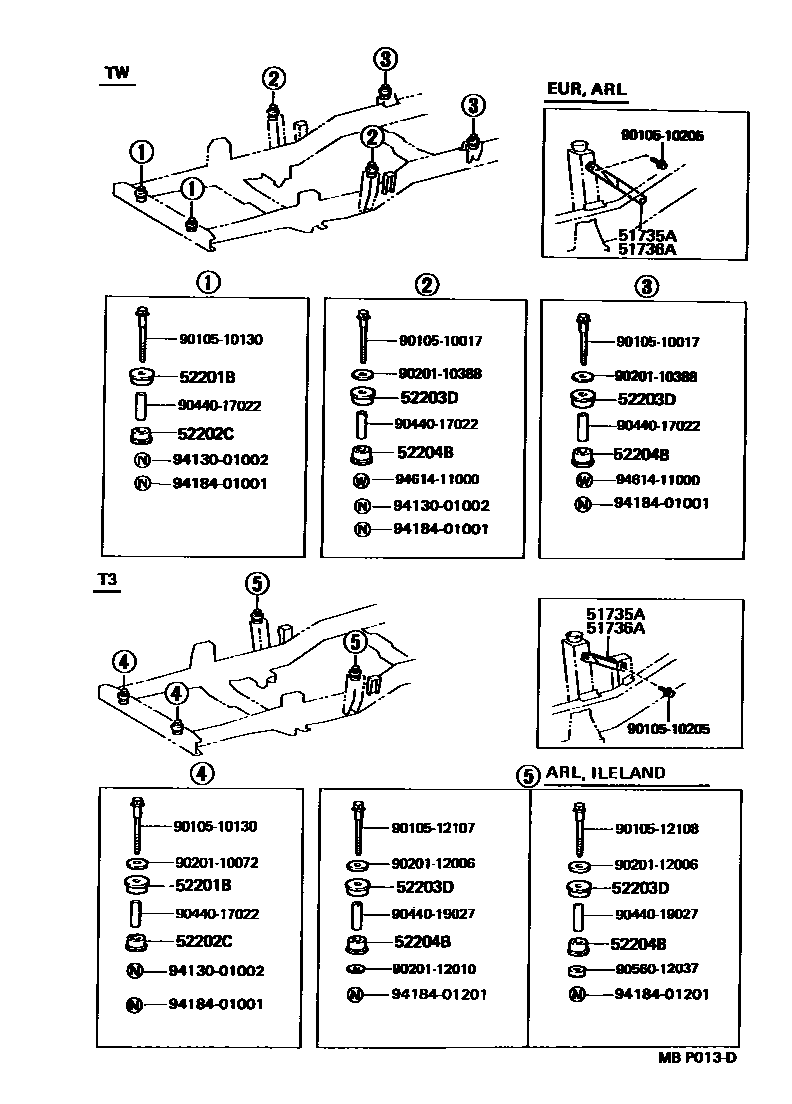

CAB MOUNTING & BODY MOUNTING

51735AREINFORCEMENT, CAB REAR MOUNTING, RH

main51735-26020iLH80,YH81..T3198708-199505

main51735-26030iLH80,YH81..TW..(ARL,EUR)198708-199505

51736AREINFORCEMENT, CAB REAR MOUNTING, LH

main51736-26020iLH80,YH81..T3198708-199505

main51736-26030iLH80,YH81..TW..(ARL,EUR)198708-199505

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-26010iLH80,YH81198708-199505

52202CCUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER

main52202-26010iLH80,YH81198708-199505

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-26010iLH80,YH81..TW198708-199505

main52203-26021iLH80,YH81..T3198708-199505

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-26011iLH80,YH81..TW198708-199505

main52204-26021iLH80,YH81..T3198708-199505

9010510017

main90105-10017

9010510130

main90105-10130

9010510205

main90105-10205

9010512107

main90105-12107

9010512108

main90105-12108

9020110072

main90201-10072

9020110388

main90201-10388

9020112006

main90201-12006

9020112010

main90201-12010

9044017022

main90440-17022

9044019027

main90440-19027

9056012037

main90560-12037

9413001002

main94130-01002

9418401001

main94184-01001

9418401201

main94184-01201

9461411000

main94614-11000

22 parts on this diagram · 1 diagram in section
