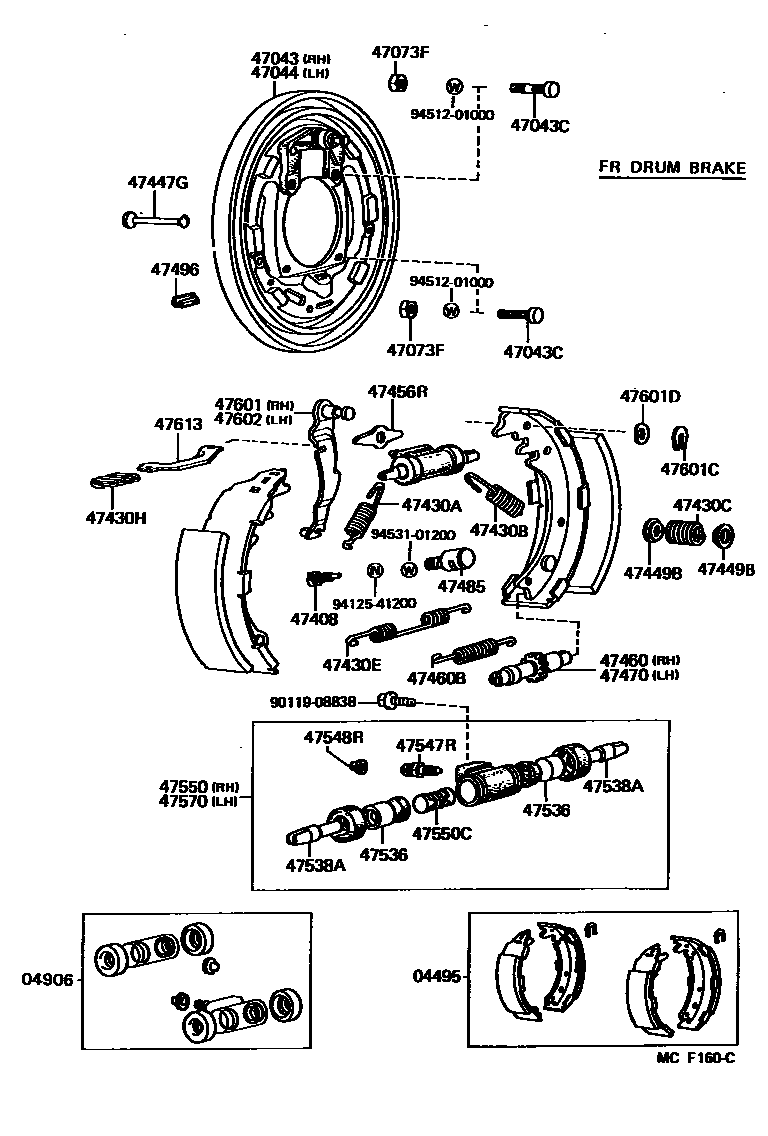

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

04495SHOE KIT, REAR BRAKE

main04495-26020iLH80,YH81..GEN198708-198809

sub04495-26021

main04495-26021iLH80,YH81..GEN198809-199309

sub04495-26200

main04495-26090iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

sub04495-26091

main04495-26090iLH80,YH81..EUR198808-198810

sub04495-26091

main04495-26091iLH80,YH81..EUR198810-199505

main04495-35051iLH80,YH81..GEN198708-198809

W(FRONT DISC BRAKE)

sub04495-35052

main04495-35052iLH80,YH81..GEN198809-199204

W(FRONT DISC BRAKE)

sub04495-35180

main04495-35100iLH80..GEN..CBU198708-198809

IRELAND SPEC & W(FRONT DISC BRAKE)

sub04495-35101

main04495-35100iLH80,YH81..ARL198708-198809

sub04495-35101

main04495-35101iLH80..GEN..CBU198809-199204

IRELAND SPEC & W(FRONT DISC BRAKE)

sub04495-35180

main04495-35122iLH80,YH81..GEN199204-199309

W(FRONT DISC BRAKE)

main04495-35122iLH80,YH81..ARL,GEN199309-199505

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iLH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main04906-30060iLH80,YH81..EUR198808-199505

main04906-31010iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main04906-31010iLH80,YH81..ARL,GEN198708-199309

main04906-31010iYH81..ARL199309-199505

IRELAND SPEC

main04906-35080iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main04906-35080iLH80,YH81..GEN199309-199505

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35042iLH80,YH81..GEN198708-199309

main47043-35051iLH80,YH81..ARL,GEN198708-199505

main47043-35051iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main47043-35060iLH80,YH81..EUR198808-199309

sub47043-35061

sub47492-28010

main47043-35060iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

sub47043-35061

sub47492-28010

main47043-35061iLH80,YH81..EUR199309-199505

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iLH80,YH81..EUR198708-199505

*10-1.25PX37-18.5

main90114-10002iYH81;LH80..IV;LH80..EUR..CBU199307-199309

*10-1.25PX37-18.5,W(10 ICHES DISC WHEEL)

main90114-10016iLH80,YH81198708-199505

*10-1.25PX41-18

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35032iLH80,YH81..GEN198708-199309

main47044-35041iLH80,YH81..ARL,GEN198708-199505

main47044-35041iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main47044-35050iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

sub47044-35051

sub47492-28010

main47044-35050iLH80,YH81..EUR198808-199309

sub47044-35051

sub47492-28010

main47044-35051iLH80,YH81..EUR199309-199505

47073FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041iLH80..GEN..CBU199307-199309

W(FR DISC BRAKE)

main90179-10041iLH80,YH81198708-199505

47408BOLT SUB-ASSY, RETRACTING SPRING CLAMP

main47408-30020iLH80,YH81..GEN198708-199309

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331iLH80,YH81..ARL,EUR198708-199505

main90506-26331iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26394iLH80,YH81..GEN198708-199309

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20225iLH80,YH81..GEN198708-199309

main90501-20604iLH80,YH81..ARL198708-199505

main90501-20604iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main90501-20756iLH80,YH81..EUR198808-199505

main90501-20756iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iLH80,YH81..EUR198808-199505

main90506-12015iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main90506-16343iLH80,YH81..ARL198708-199505

main90506-16343iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main90506-26002iLH80,YH81..GEN198708-199309

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012iLH80,YH81198708-199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLH80,YH81198708-199505

main47447-30020iLH80,YH81..EUR198808-199505

main47447-30020iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011iLH80,YH81..GEN198708-199309

main47449-30020iLH80,YH81..ARL,EUR198708-199309

W(FRONT DISC BRAKE)

main47449-30020iLH80,YH81199309-199505

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010iLH80,YH81198708-199505

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35020iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47061-35020iLH80,YH81..EUR198808-199505

main47405-30011iLH80,YH81..GEN198708-199309

main47405-30020iLH80,YH81..ARL,GEN198708-199505

main47405-30020iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)

main90506-23344iLH80,YH81..GEN198708-199309

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-35020iLH80,YH81..EUR198808-199505

main47062-35020iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47406-30011iLH80,YH81..GEN198708-199309

main47406-30020iLH80,YH81..ARL198708-199505

main47406-30020iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

main47485-35010iLH80,YH81..GEN198708-199309

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLH80,YH81..EUR198808-199505

main47491-20011iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47491-35040iLH80,YH81..ARL,GEN198708-199505

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30030iLH80,YH81..EUR198808-199505

main47051-30030iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47531-26070iLH80,YH81..GEN199309-199505

main47531-26070iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main47531-26080iLH80,YH81..ARL,GEN198708-199309

main47531-26080iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47531-26080iYH81..ARL199309-199505

IRELAND SPEC

47538ALINK, WHEEL CYLINDER CONNECTING

main47538-35010iLH80,YH81198708-199505

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLH80,YH81..EUR198808-199505

main47547-20030iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47547-26010iLH80,YH81198708-199505

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLH80,YH81198708-199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main47550-26090iLH80,YH81..GEN199309-199505

main47550-26100iLH80..GEN..CBU199309-199505

IRELAND SPEC

main47550-26100iLH80,YH81198708-199309

main47550-26100iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47550-30100iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47550-30100iLH80,YH81..EUR198808-199505

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main47509-20010iLH80,YH81..GEN199309-199505

main47509-22010iLH80..GEN..CBU199309-199505

IRELAND SPEC

main47509-22010iLH80,YH81198708-199309

main47509-22010iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47509-35020iLH80,YH81..EUR198808-199505

main47509-35020iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iLH80,YH81..GEN199309-199505

main47550-26090iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main47550-26100iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47550-26100iLH80,YH81198708-199309

main47550-26100iYH81..ARL199309-199505

IRELAND SPEC

main47550-30100iLH80,YH81..EUR198808-199505

main47550-30100iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iLH80,YH81198708-199505

main47611-35020iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47611-35020iLH80,YH81..EUR198808-199505

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iLH80,YH81..ARL,GEN198708-199505

T=1.6

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059iLH80,YH81198708-199505

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iLH80,YH81..ARL,GEN198708-199505

main47612-35020iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

main47612-35020iLH80,YH81..EUR198808-199505

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35011iLH80,YH81198708-199505

RH

main47614-35011iLH80,YH81..ARL,GEN198708-199505

LH

9011908838

main90119-08838

9412541200

main94125-41200

9451201000

main94512-01000

9453101200

main94531-01200

36 parts on this diagram · 4 diagrams in section
