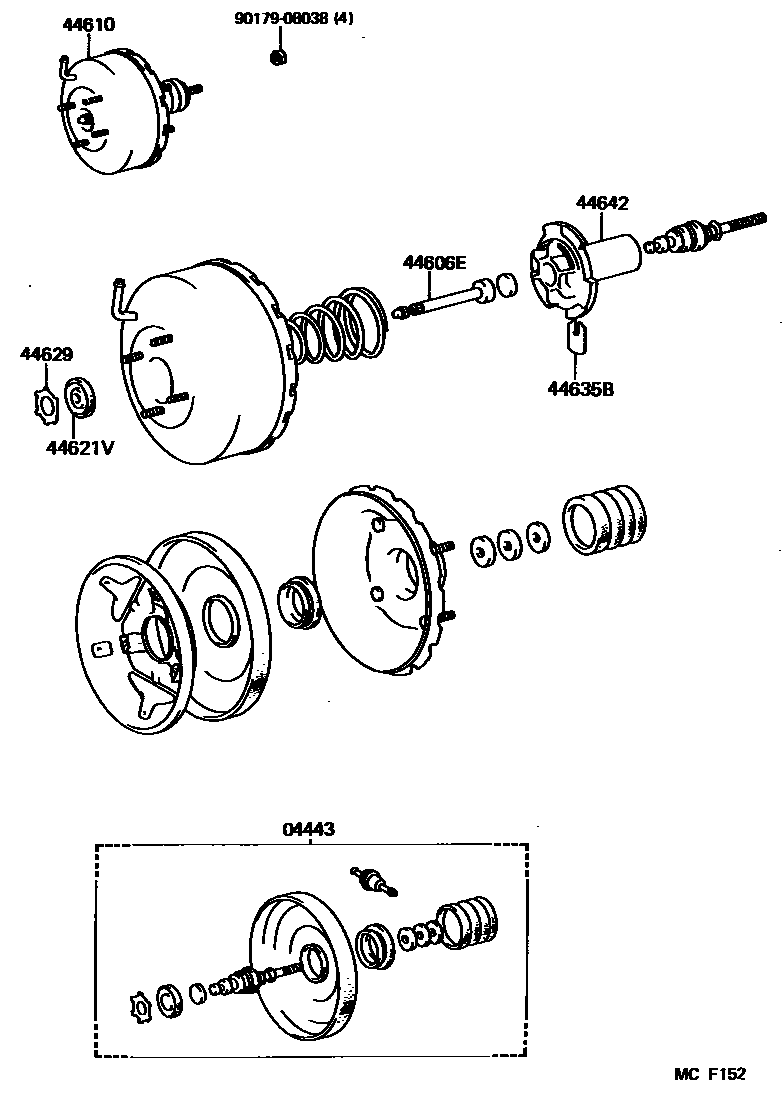

BRAKE BOOSTER & VACUUM TUBE

0001 1AISIN 0002 1JKC 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-26260iYH81..GEN198708-199505

W(FRONT DISC BRAKE & LSPV)

main04443-26270iLH80..GEN..CBU198708-199505

W(FRONT DISC BRAKE & LSPV)

main04443-26280iYH81..GEN198708-199505

main04443-26290iLH80..GEN198708-199505

main04443-26310iYH81..GEN198708-199505

W(LSPV)

main04443-26320iLH80..GEN198708-199505

W(LSPV)

main04443-26410iYH81..EUR..IV198808-199505

SWEDEN SPEC

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iLH80,YH81198708-199505

44610BOOSTER ASSY, BRAKE

main44610-26280iLH80..GEN..IV;YH81..RHD..GEN198708-199309

W(FRONT DISC BRAKE & LSPV)

main44610-26280iLH80,YH81..RHD199309-199505

main44610-26290iYH81..LHD..GEN198708-199309

W(FRONT DISC BRAKE & LSPV)

main44610-26290iLH80,YH81..LHD199309-199505

main44610-26300iLH80,YH81..RHD..GEN198708-199309

main44610-26310iYH81..LHD..GEN198708-199309

main44610-26320iLH80,YH81..RHD..GEN198708-199309

W(LSPV)

main44610-26340iYH81..LHD..GEN198708-199309

W(LSPV)

main44610-26400iYH81..EUR..IV198808-199505

SWEDEN SPEC

44621VSEAL, BOOSTER BODY

main44621-28120iLH80,YH81198708-199505

44629RING, CIRCULAR INTERNAL

main44628-28120iLH80,YH81198708-199505

44635BKEY, VALVE STOPPER

main44635-28120iLH80,YH81198708-199505

44642PISTON, BRAKE BOOSTER

main44642-16050iLH80,YH81..GEN198708-199309

W(LSPV)

main44642-27150iYH81..LHD..GEN198708-199309

main44642-32010iLH80,YH81..ARL,EUR198708-199309

W(FRONT DISC BRAKE & LSPV)

main44642-32010iLH80,YH81199309-199505

9017908038

main90179-08038

8 parts on this diagram · 6 diagrams in section
