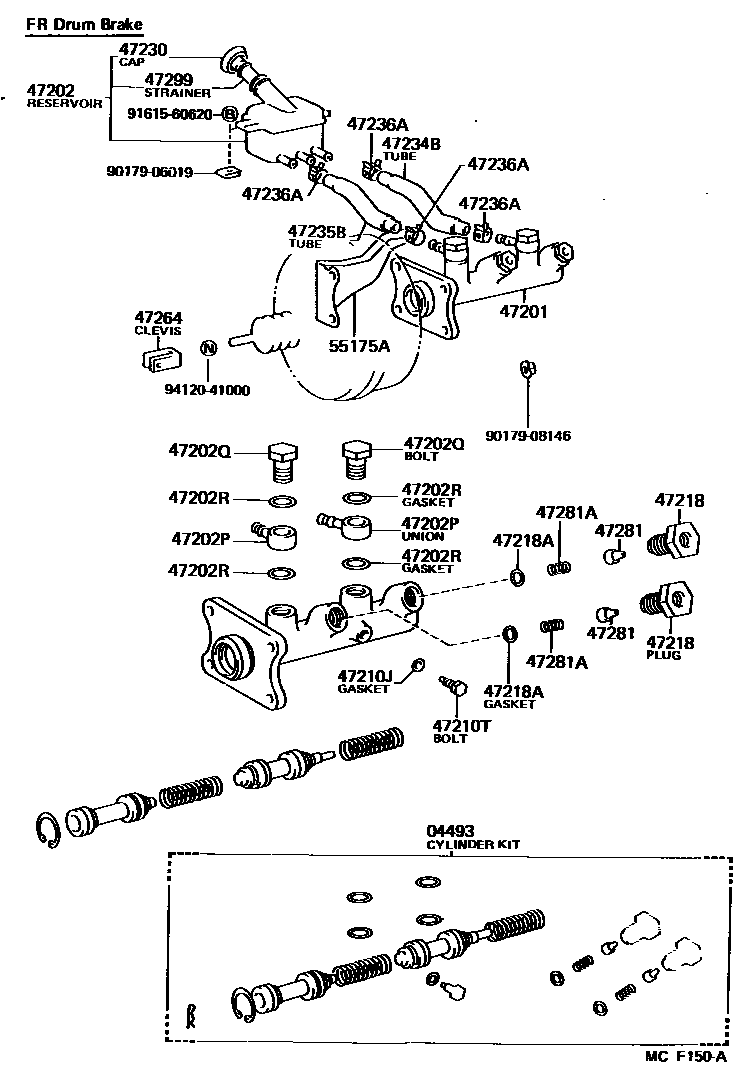

BRAKE MASTER CYLINDER
47201CYLINDER SUB-ASSY, BRAKE MASTER
W(FRONT DISC BRAKE & LSPV)
SWEDEN SPEC
W(FRONT DISC BRAKE & LSPV)
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
47210JGASKET(FOR MASTER CYLINDER)
47210TBOLT(FOR BRAKE MASTER CYLINDER)
47218PLUG, MASTER CYLINDER FLUID OUTLET
W(FRONT DISC BRAKE & LSPV)
47218AGASKET(FOR FLUID OUTLET PLUG)
W(FRONT DISC BRAKE & LSPV)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47234BTUBE, RESERVOIR, NO.1
SWEDEN SPEC
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
SWEDEN SPEC
47236ACLIP(FOR RESERVOIR TUBE)
sub96134-51500
47264CLEVIS, MASTER CYLINDER PUSH ROD
SWEDEN SPEC
47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK
47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
SWEDEN SPEC
9017906019
main90179-06019
9017908146
main90179-08146
9161560620
main91615-60620
9412041000
main94120-41000
23 parts on this diagram · 2 diagrams in section
