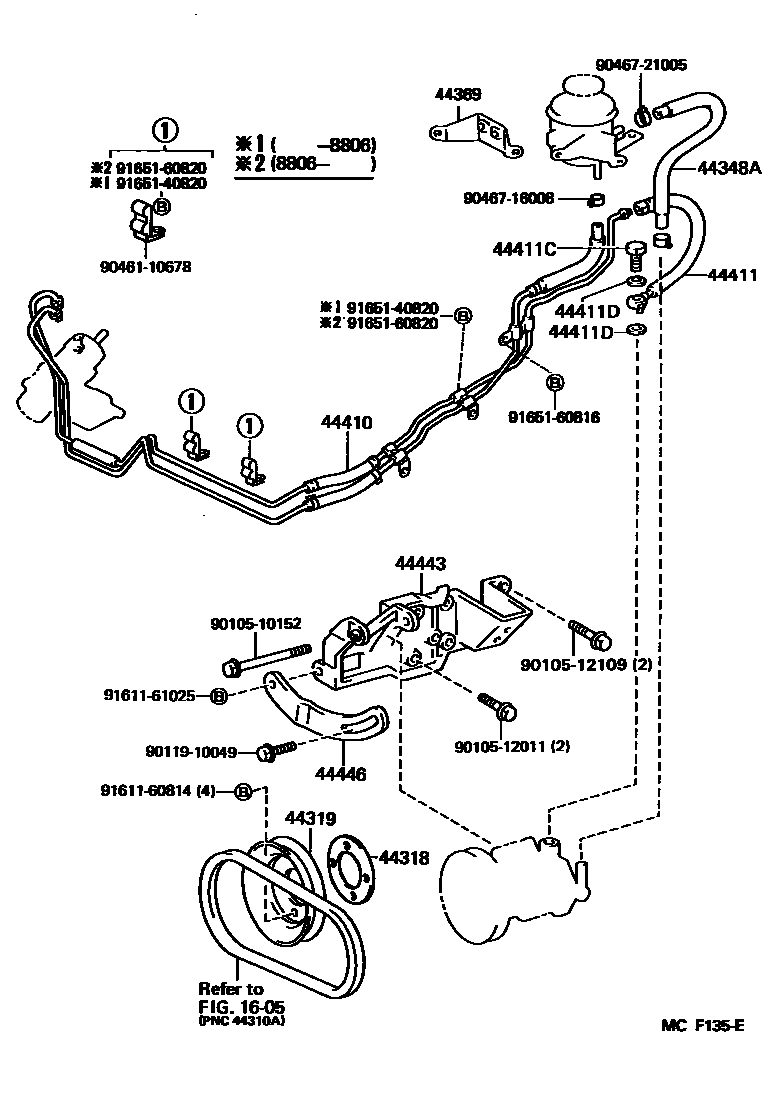

POWER STEERING TUBE

0001 1 0002 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLH80..GEN..CBU199404-199505

IRELAND SPEC

main44318-26010iLH80..ARL,EUR198808-199505

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLH80..ARL,EUR198808-199505

main44319-26010iLH80..GEN..CBU199404-199505

IRELAND SPEC

main44319-30030iLH80..ARL,EUR198708-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26030iLH80..EUR198708-199505

main44348-26060iLH80..ARL198808-199203

sub44348-26061

main44348-26060iLH80..GEN..CBU199404-199505

IRELAND SPEC

sub44348-26061

44369BRACKET, OIL RESERVOIR, NO.1

main44039-26010iLH80..ARL198808-199203

main44039-26010iLH80..GEN..CBU199404-199505

IRELAND SPEC

main44369-26020iLH80..EUR198708-199505

44410TUBE ASSY, PRESSURE FEED

main44410-26062iLH80..ARL198808-199106

main44410-26340iLH80..ARL199106-199203

main44410-26370iLH80..GEN..CBU199404-199505

IRELAND SPEC

sub44410-25070

44411HOSE, PRESSURE FEED

main44411-26021iLH80..GEN..CBU199404-199505

IRELAND SPEC

main44411-26021iLH80..ARL198808-199203

main44411-26030iLH80..EUR198708-198808

main44411-26060iLH80..EUR198808-199505

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16005iLH80..ARL,EUR198708-198808

sub90401-16008

main90401-16008iLH80..ARL,EUR198808-199209

main90401-16027iLH80..EUR199209-199505

main90401-16027iLH80..GEN..CBU199404-199505

IRELAND SPEC

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168iLH80..EUR199209-199505

main90430-16168iLH80..GEN..CBU199404-199505

IRELAND SPEC

main90430-16242iLH80..ARL,EUR198708-199209

44443BRACKET, PUMP

main44443-30080iLH80..ARL,EUR198708-199505

main44443-30080iLH80..GEN..CBU199404-199505

IRELAND SPEC

44446STRUT, ADJUSTING

main44446-30070iLH80..ARL,EUR198708-199505

main44446-30070iLH80..GEN..CBU199404-199505

IRELAND SPEC

9010510152

main90105-10152

9010512011

main90105-12011

9010512109

main90105-12109

9011910049

main90119-10049

9046110678

main90461-10678

9046716008

main90467-16008

9046721005

main90467-21005

9161160814

main91611-60814

9161161025

main91611-61025

9165140820

main91651-40820

9165160816

main91651-60816

9165160820

main91651-60820

23 parts on this diagram · 2 diagrams in section
