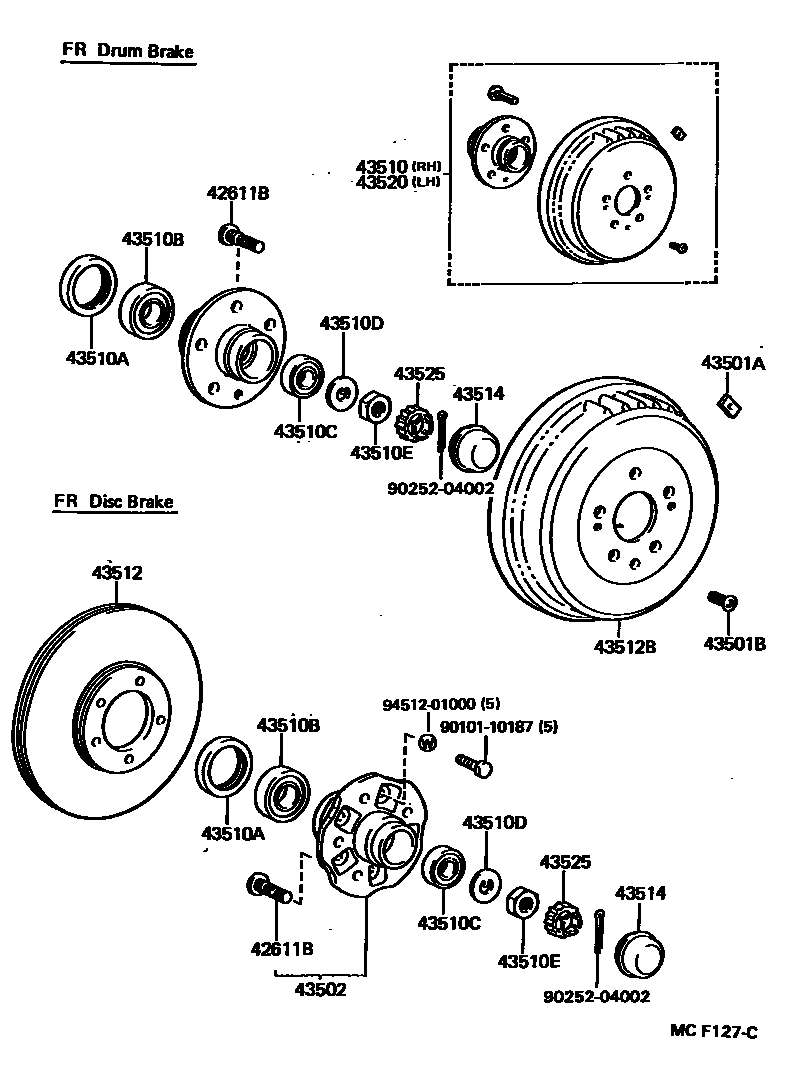

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iLH80,YH81199309-199505

main90942-02047iLH80,YH81..GEN198708-199309

W(FRONT DISC BRAKE)

main90942-02052iLH80,YH81..GEN198708-199309

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLH80,YH81..GEN198708-199309

40.5G

main90937-01117iLH80,YH81..GEN198708-199309

10G

main90937-01118iLH80,YH81..GEN198708-199309

20G

main90937-01119iLH80,YH81..GEN198708-199309

30G

main90937-01146iLH80,YH81..GEN198708-199309

25G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iLH80,YH81..GEN198708-199309

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main43502-26050iLH80,YH81199309-199505

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26060iLH80,YH81..GEN198708-199309

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLH80,YH81198708-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLH80,YH81198708-199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLH80,YH81198708-199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLH80,YH81198708-199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH80,YH81198708-199505

43512DISC, FRONT

main43512-26040iYH81;LH80..IV;LH80..EUR..CBU198708-198803

W(FRONT DISC BRAKE)

sub43512-26070

main43512-26070iYH81;LH80..IV;LH80..EUR..CBU198803-199309

W(FRONT DISC BRAKE)

sub43512-35180

main43512-26070iLH80,YH81199309-199505

sub43512-35180

43512BDRUM, BRAKE

main43512-26050iLH80,YH81..GEN198708-199309

43514CAP, FRONT HUB GREASE

main43514-35010iLH80,YH81198708-199505

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26060iLH80,YH81..GEN198708-199309

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLH80,YH81198708-199505

9010110187

main90101-10187

9025204002

main90252-04002

9451201000

main94512-01000

18 parts on this diagram · 1 diagram in section
