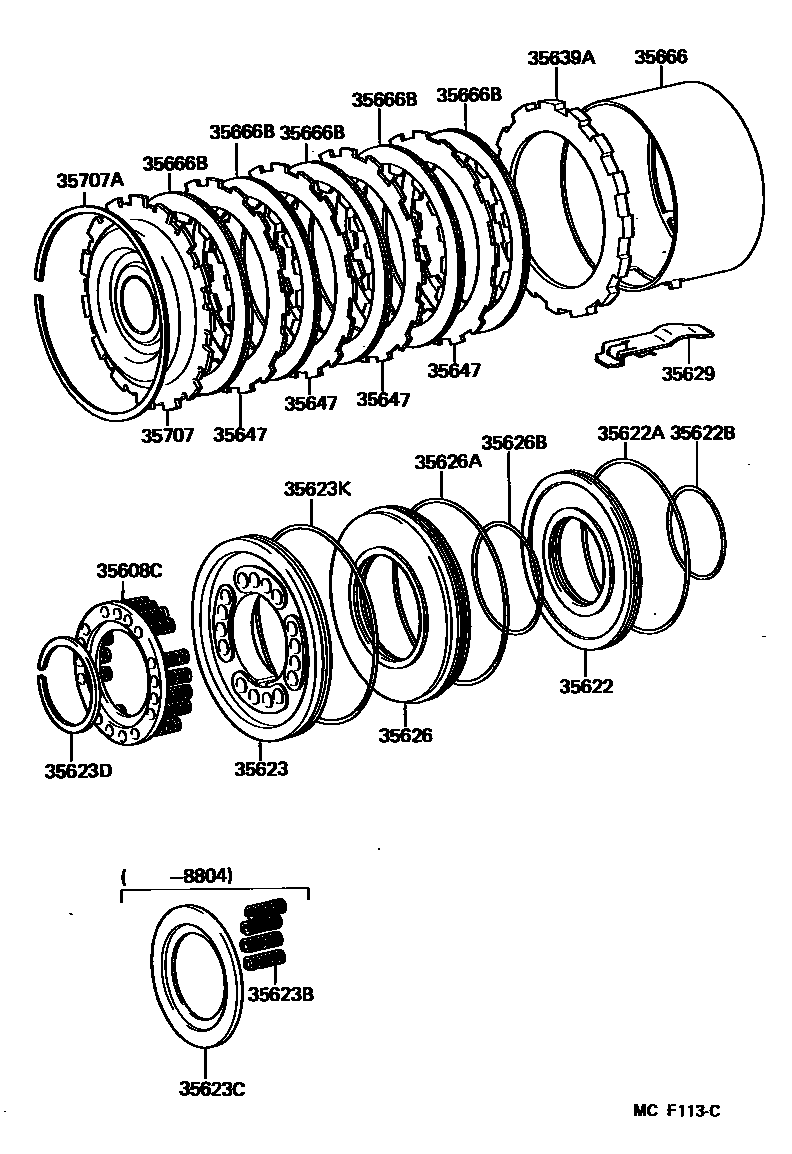

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iLH80..4FC¥1,060198804-199203

35622PISTON, BRAKE, NO.2

main35622-22010iLH80..4FC¥1,850198708-199203

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iLH80..4FC¥800198708-199203

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iLH80..4FC¥630198708-199203

35623PISTON, BRAKE, NO.3

main35623-22010iLH80..4FC¥2,330198708-199203

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iLH80..4FC¥190198708-198804

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iLH80..4FC¥530198708-198804

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iLH80..4FC¥240198708-199203

35623KRING (FOR BRAKE PISTON OUTER)

main90301-99192iLH80..4FC¥800198708-199203

35626SLEEVE, BRAKE REACTION

main35626-22010iLH80..4FC¥2,100198708-199203

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iLH80..4FC¥800198708-199203

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iLH80..4FC¥630198708-199203

sub90301-67005¥190

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iLH80..4FC¥270198906-199203

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iLH80..4FC¥3,250198708-199203

35647PLATE, CLUTCH, NO.2

main35647-22010iLH80..4FC¥1,670198708-199203

35666TUBE, BRAKE APPLY

main35666-30010iLH80..4FC¥2,460198708-199203

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iLH80..4FC¥2,640198708-199109

sub35633-30060¥2,630

main35633-30060iLH80..4FC¥2,630199109-199203

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30040iLH80..4FC¥14,400198708-199203

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iLH80..4FC¥520198708-199203

19 parts on this diagram · 1 diagram in section
