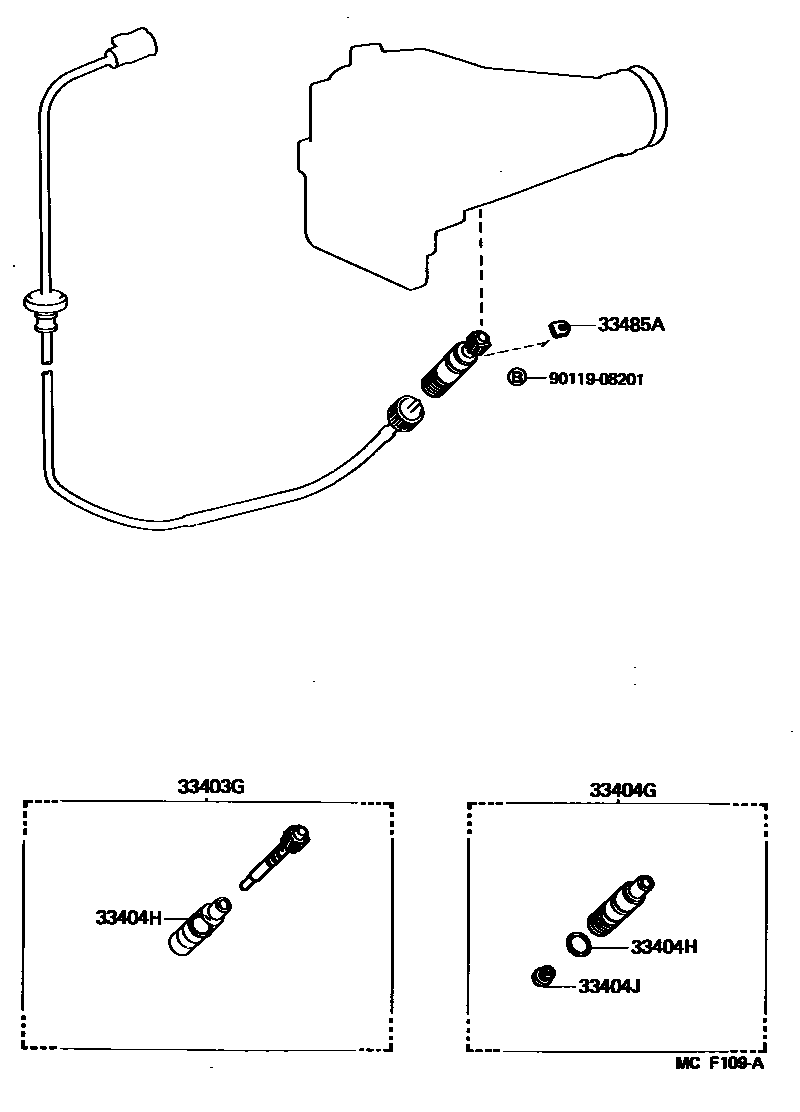

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29105iLH80..4FC198708-199203

N=22,MARK 22:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH80..4FC198708-199203

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLH80..4FC198708-199203

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH80..4FC198708-199203

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH80..4FC198708-199203

9011908201

main90119-08201

6 parts on this diagram · 1 diagram in section
