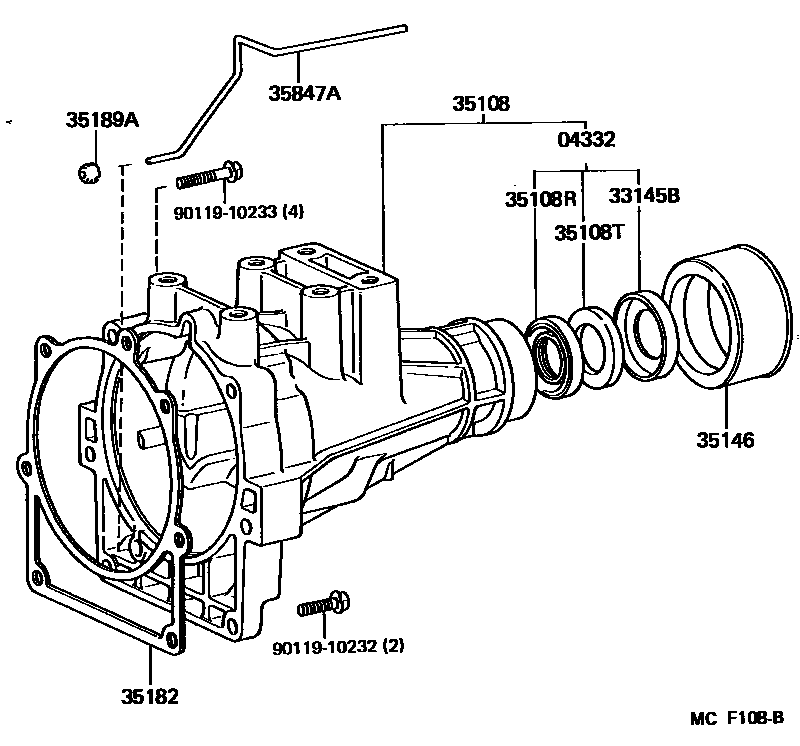

EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iLH80..4FC198708-199203

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iLH80..4FC198708-199203

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-26013iLH80..4FC198708-198807

sub35108-26014

main35108-26014iLH80..4FC198807-199203

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iLH80..4FC198804-199203

sub90311-38032

main90311-38040iLH80..4FC198708-198804

sub90311-38030

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iLH80..4FC198708-199203

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iLH80..4FC198708-199203

sub33146-30020

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iLH80..4FC198708-199012

sub35182-28010

main35182-28010iLH80..4FC199012-199203

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iLH80..4FC198708-199203

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iLH80..4FC198708-199203

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 1 diagram in section
