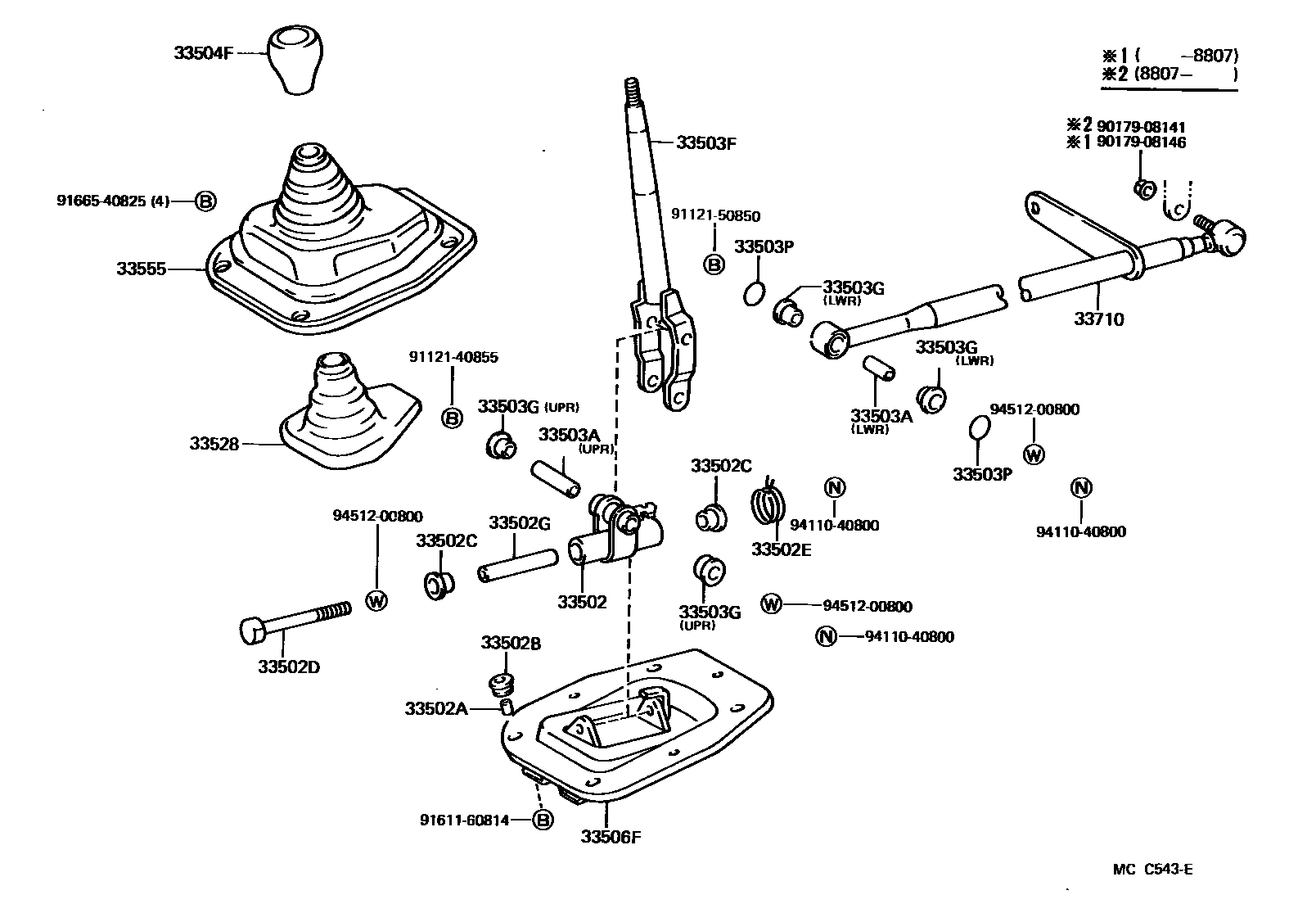

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-25010iLH80,YH81..5F198708-199505

main33502-26020iLH80..4FC198708-198808

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-10081iLH80,YH81..5F198708-199505

OD=13.8

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-17018iLH80,YH81..5F198708-199505

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13007iLH80,YH81199307-199505

main90386-13192iLH80,YH81..EUR..CBU199307-199309

NORWAY SPEC

main90386-13192iLH80,YH81..5F198708-199307

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08107iLH80,YH81..5F198708-199505

33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)

main90508-23094iLH80,YH81..5F198708-199505

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLH80,YH81..5F198708-199505

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLH80,YH81..5F198708-199505

UPR

main90387-08065iLH80,YH81..5F198708-199505

LWR

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-25010iLH80,YH81..RHD..5F198708-199505

main33503-25020iLH80,YH81..LHD198708-199505

sub33503-25010

main33503-25030iLH80..EUR..CBU;YH81..T3..EUR..CBU198708-198808

NORWAY SPEC

sub33503-25031

main33503-25031iLH80..EUR..CBU;YH81..T3..EUR..CBU198808-199309

NORWAY SPEC

main33503-36110iLH80..4FC198808-199203

33503GBUSH(FOR SHIFT LEVER)

main90386-13007iLH80,YH81199307-199505

UPR

main90386-13192iLH80,YH81..5F198708-199307

UPR

main90386-13192iLH80,YH81..EUR..CBU199307-199309

NORWAY SPEC,UPR

main90389-11002iLH80,YH81..5F198708-199505

LWR

33503PRING, O(FOR SHIFT LEVER)

main96711-24018iLH80,YH81..5F198708-199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-06iLH80,YH81..5F198708-199109

BROWN,TRIM4#

sub33504-24010

main33504-24010-48iLH80,YH81..5F199109-199308

GRAY,TRIM1#

sub33504-24010

main33504-35030-B1iLH80,YH81199308-199505

BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-36070-06iLH80..4FC198808-199109

BROWN,TRIM4#

sub33504-36070

main33504-36070-B0iLH80..4FC199109-199203

GRAY,TRIM1#

sub33504-36070

main33542-17010-01iLH80..4FC198708-198808

BLACK,TRIM4#

sub33542-17010

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-25010iLH80,YH81..RHD..5F198708-199505

main33506-25020iLH80,YH81..LHD198708-199505

main33570-26010iLH80..4FC198808-198910

main33570-26011iLH80..4FC198910-199203

33528COVER, CONTROL SHAFT

main33528-25010iLH80,YH81..5F198708-199505

33555BOOT, SHIFT LEVER

main33555-25010iLH80,YH81..5F198708-199002

sub33555-25011

main33555-25011iLH80,YH81..5F199002-199505

main33555-26010iLH80..4FC198708-198808

main33555-26020iLH80..4FC198808-199203

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-25141iLH80,YH81..RHD..5F198708-198811

main33710-25142iLH80,YH81..RHD..5F198811-199505

main33710-25150iLH80,YH81..LHD198708-199505

9017908141

main90179-08141

9017908146

main90179-08146

9112140855

main91121-40855

9112150850

main91121-50850

9161160814

main91611-60814

9166540825

main91665-40825

9411040800

main94110-40800

9451200800

main94512-00800

24 parts on this diagram · 6 diagrams in section
