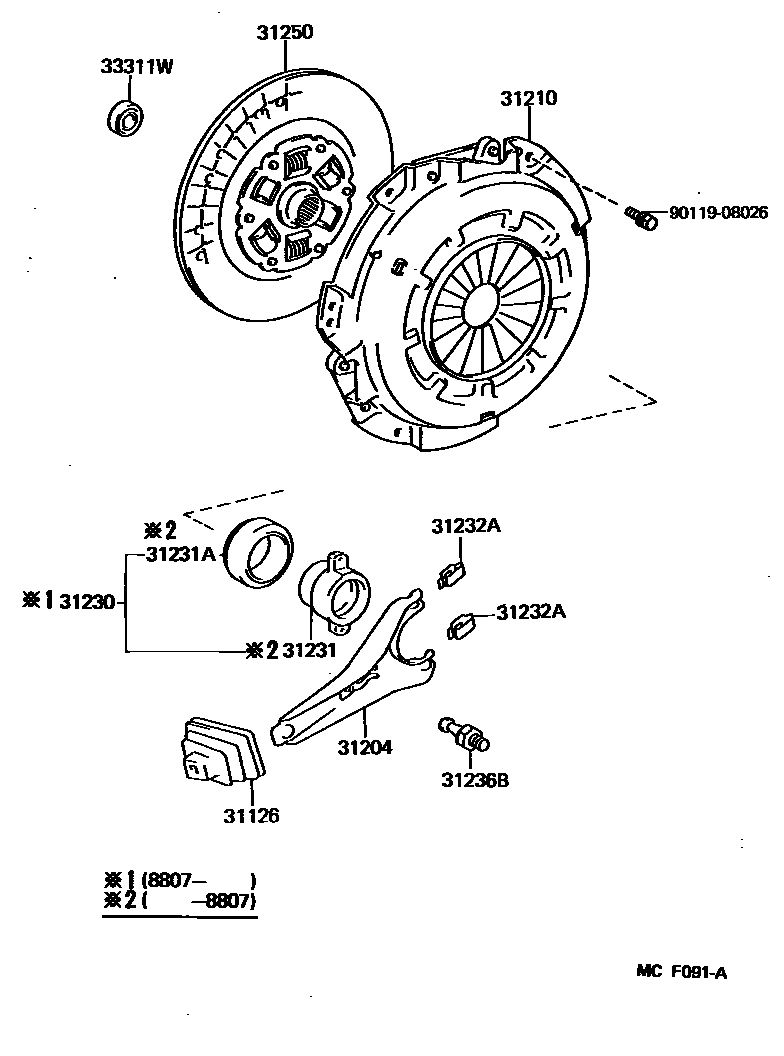

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYH81198708-199505

main31126-20070iLH80..5F198708-199505

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYH81198708-199505

main31204-20090iLH80..5F198708-198807

main31204-35050iLH80..5F198807-199505

31210COVER ASSY, CLUTCH

main31210-14130iLH80,YH81..5F198708-198808

sub31210-35090

main31210-35090iLH80,YH81..5F198808-199505

sub31210-22100

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLH80..5F198807-199505

sub31230-35071

main31230-35090iYH81198807-199505

sub31230-35091

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLH80..5F198708-198807

main31231-36070iYH81198708-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLH80,YH81..5F198708-198807

31232ACLIP, RELEASE BEARING HUB

main31232-22010iLH80,YH81..5F198708-198807

main31232-35020iLH80,YH81..5F198807-199505

main31232-35030iLH80..5F198807-199505

main31232-35040iYH81198911-199505

31236BSUPPORT, RELEASE FORK

main31236-30060iLH80,YH81..5F198708-199505

31250DISC ASSY, CLUTCH

main31250-25111iLH80..5F198708-198912

sub31250-26052

main31250-25122iYH81198708-199505

sub31250-20240

main31250-26052iLH80..GEN198912-199505

sub31250-26053

main31250-35220iLH80..5F..(ARL,EUR)198808-199505

IRELAND SPEC

sub31250-35221

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH80,YH81..5F198708-199505

sub90363-12024

9011908026

main90119-08026

11 parts on this diagram · 2 diagrams in section
