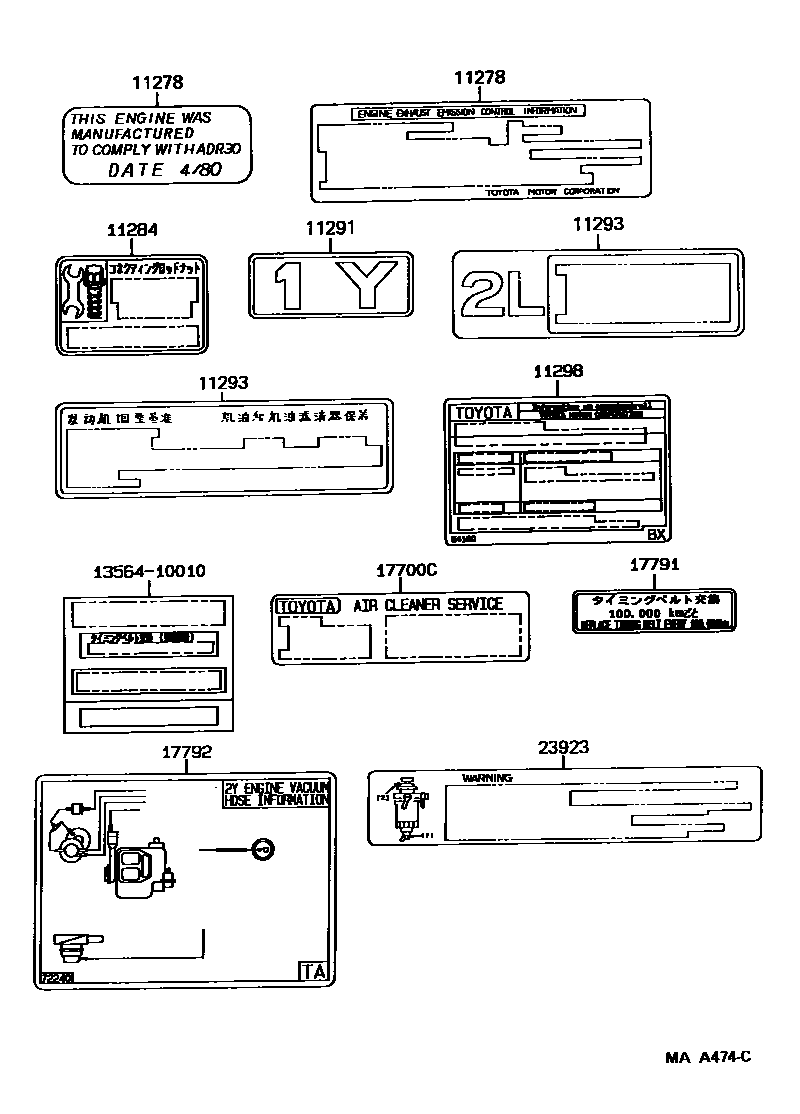

CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-54010i2L..LH80..ARL198708-198808

main11278-54020i2L..LH80..ARL198808-199203

main11278-72011i2Y..YH81..ARL198708-199109

main11298-72070i2Y..YH81..ARL199109-199505

11284PLATE, ENGINE BOLT INFORMATION

main11284-54010i2L..LH80198807-198808

main11284-54020i2L..LH80198808-198809

sub11284-54040

main11284-54040i2L..LH80198809-199403

11291PLATE, ENGINE NAME

main11291-72010i2Y..YH81198708-198808

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-54030i2L..LH80198708-198808

main11293-72040i2Y..YH81..LHD..GEN198708-199109

CHINA SPEC

main11296-72060i2Y..YH81..LHD..GEN199109-199112

CHINA SPEC

sub11296-72061

main11296-72061i2Y..YH81..LHD..GEN199112-199505

CHINA SPEC

11298PLATE, EMISSION CONTROL INFORMATION

main11298-54190i2L..LH80..T3..EUR..IV199210-199301

NORWAY SPEC

main11298-54190i2L..LH80..EUR..CBU199210-199301

FINLAND SPEC

main11298-54191i2L..LH80..EUR..CBU199301-199505

NORWAY SPEC

main11298-54191i2L..LH80..EUR..CBU199301-199505

FINLAND SPEC

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i2L,2Y..LH80,YH81198708-199505

main17791-73010i2Y..YH81..LHD..GEN198708-199505

CHINA SPEC

main90917-07108i2L..LH80..EUR198906-198912

CYCLONE TYPE

main90917-07108i2L..LH80..RHD198906-199505

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i2L..LH80199202-199505

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-72240i2Y..YH81..EUR199001-199505

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-54040i2L..LH80..RHD198708-198910

main23923-64021i2L..LH80..RHD198910-199505

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

10 parts on this diagram · 1 diagram in section
