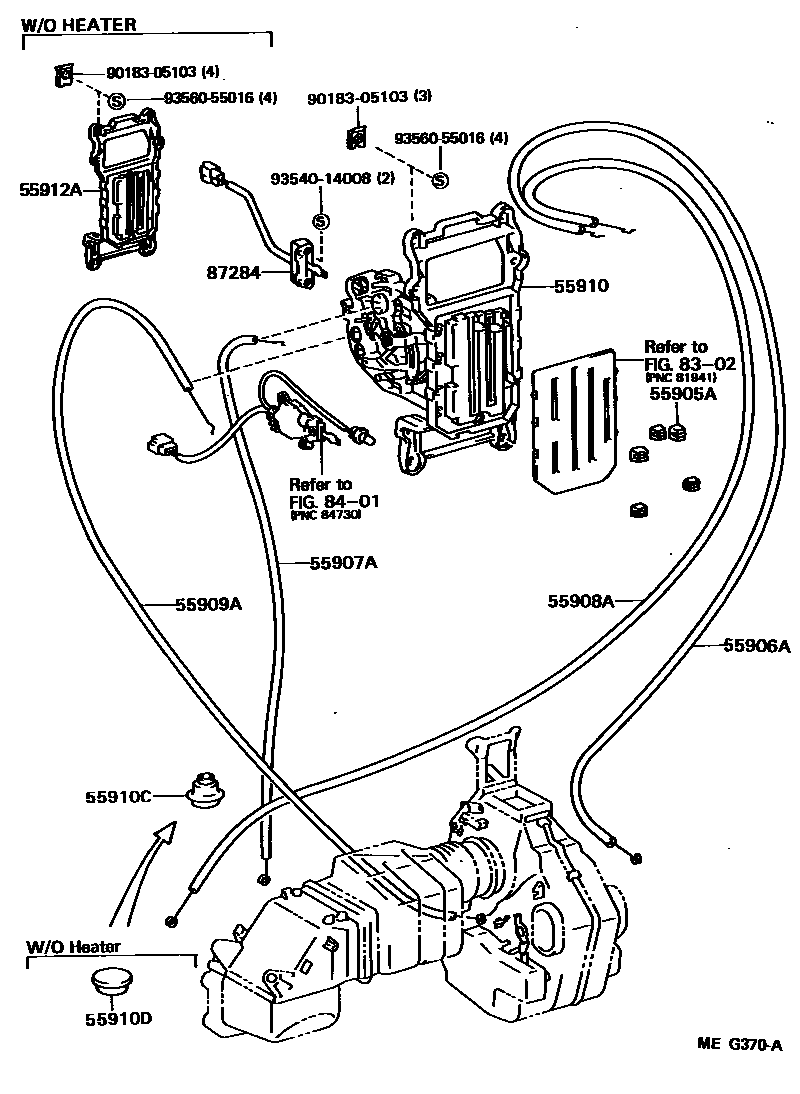

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1FOOT VENTILATOR 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-10110iLH80,YH8#198508-198708

WHITE

main55905-95707iLH80,YH8#198508-198708

BLUE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95404iLH80,YH8#..RHD198508-198708

main55906-95406iLH80,YH8#..LHD198508-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95404iLH80,YH8#..RHD198508-198708

main55907-95406iLH80,YH8#..LHD198508-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iLH80,YH8#198508-198708

main55908-95404iLH80,YH80..GEN198608-198708

W/FOOT VENTILATOR

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iLH80,YH8#..RHD198508-198708

main55909-95406iLH80,YH8#..LHD198508-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95409iLH80,YH8#198508-198708

W/HEATER

sub55910-36090

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

sub55907-36010

sub55907-36020

sub55907-36030

sub55907-36040

main55910-95410iLH80,YH8#..EUR,GEN198508-198708

W/BOOST VENTILATOR

sub55910-36100

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

main55910-95411iLH80,YH80..GEN198608-198708

W/FOOT VENTILATOR

sub55910-36110

sub55906-36090

sub55906-36100

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-24215iLH80,YH8#198508-198708

55910DPLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

main90950-01127iLH80..EUR,GEN198508-198708

55912AHOUSING, HEATER CONTROL

main55912-95404iLH80,YH80..GEN198508-198708

W/O HEATER & W/DIGITAL CLOCK

8302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iLH80,YH8#..ARL,GEN198508-198708

9018305103

main90183-05103

9354014008

main93540-14008

9356055016

main93560-55016

15 parts on this diagram · 4 diagrams in section
