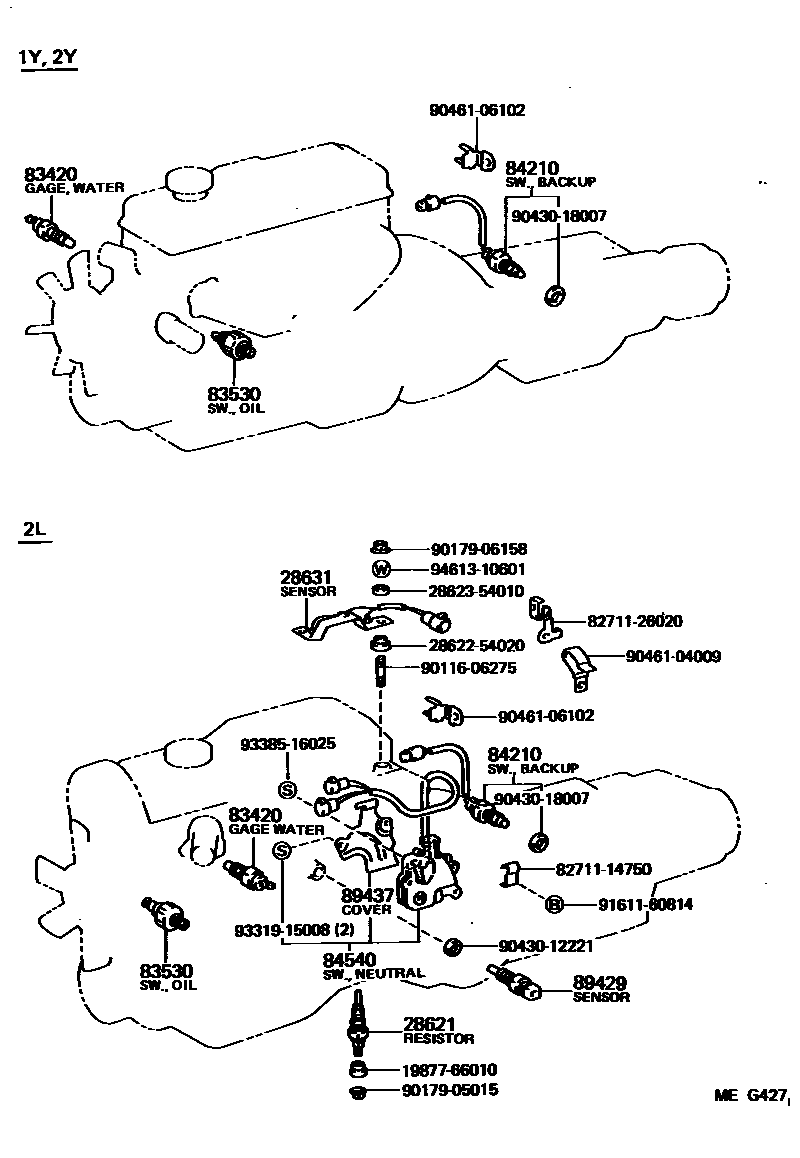

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV198508-198708

sub28621-64011

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV198508-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLH80,YH8#198508-198708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYH8#198508-198708

sub83530-28030

main83530-30060iLH80198508-198708

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iLH80,YH8#..5F198508-198708

84540SWITCH ASSY, NEUTRAL START

main84540-26010iLH80..4FC198508-198708

89429SENSOR, OIL TEMPERATURE

main89422-30020iLH80..T3..CBU;LH80..TW..EUR;LH80..(ARL,EUR)..IV198508-198708

sub89422-12010

89437COVER, SENSOR

main89437-26010iLH80..4FC198508-198708

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

9011606275

main90116-06275

9017905015

main90179-05015

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9046104009

main90461-04009

9046106102

main90461-06102

9161160814

main91611-60814

9331915008

main93319-15008

9338516025

main93385-16025

9461310601

main94613-10601

24 parts on this diagram · 4 diagrams in section
