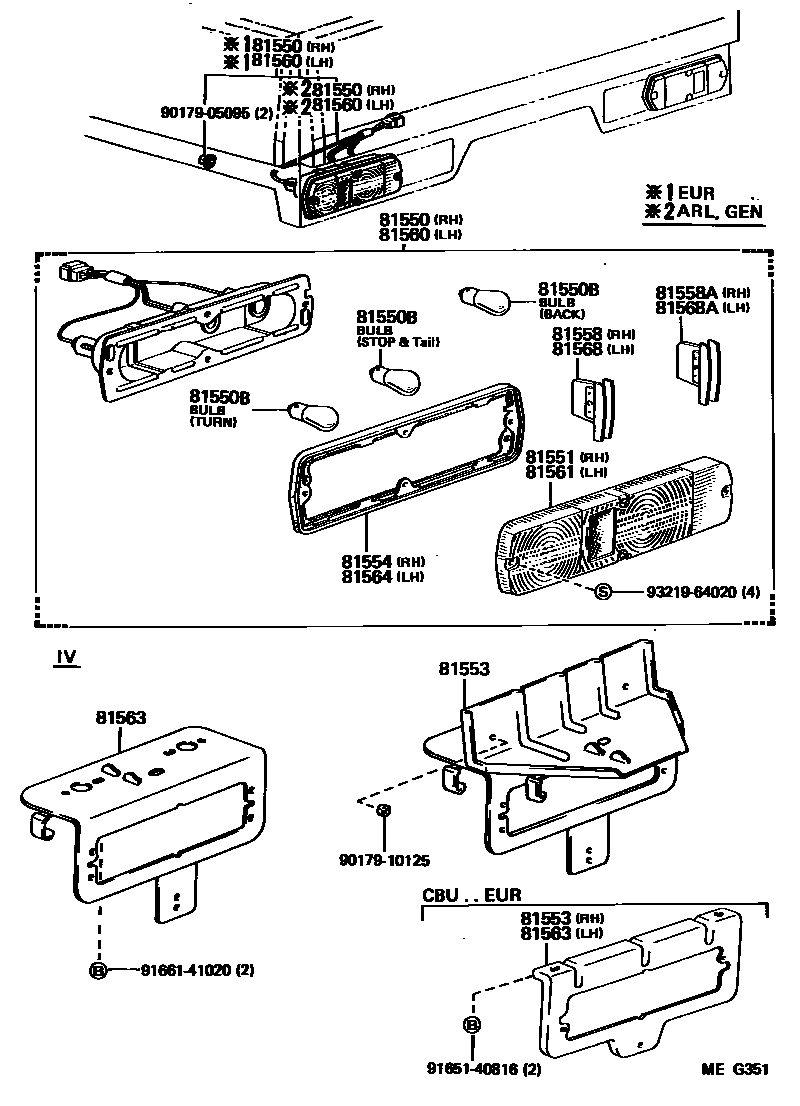

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95012iLH80,YH8#..ARL,GEN198508-198708

sub81550-95A10

main81550-95A09iLH80,YH81..EUR198508-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLH80,YH81..EUR198508-198708

12V 21W,12V 21W(TURN,BACK)

main99132-11230iLH80,YH8#..ARL,GEN198508-198708

12V 23W,12V 23W(TURN,BACK)

main99132-21210iLH80,YH8#198508-198708

12V 21/5W,12V 21/5W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLH80,YH8#..ARL,GEN198508-198708

main81551-26040iLH80,YH81..EUR198508-198708

sub81551-60180

81553BRACKET, REAR COMBINATION LAMP, NO.1 RH

main75103-25011iLH80,YH8#..ARL,GEN198508-198708

main75135-95A00iLH80,YH81..T3..EUR..CBU198508-198708

main75135-95A01iLH80,YH81..TW..EUR198508-198708

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLH80,YH8#..ARL,GEN198508-198708

main81552-26040iLH80,YH81..EUR198508-198708

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLH80,YH8#..ARL,GEN198508-198708

main81557-26040iLH80,YH81..EUR198508-198708

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iLH80,YH8#..ARL,GEN198508-198708

main81557-26040iLH80,YH81..EUR198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95012iLH80,YH8#..ARL,GEN198508-198708

sub81560-95A10

main81560-95A09iLH80,YH81..EUR198508-198708

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLH80,YH8#..ARL,GEN198508-198708

main81561-26040iLH80,YH81..EUR198508-198708

sub81561-60080

81563BRACKET, REAR COMBINATION LAMP, NO.1 LH

main75104-25011iLH80,YH8#..IV198508-198708

main75135-95A00iLH80,YH81..T3..EUR..CBU198508-198708

main75135-95A01iLH80,YH81..TW..EUR198508-198708

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLH80,YH8#..ARL,GEN198508-198708

main81562-26040iLH80,YH81..EUR198508-198708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLH80,YH8#..ARL,GEN198508-198708

main81557-26040iLH80,YH81..EUR198508-198708

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iLH80,YH8#..ARL,GEN198508-198708

main81557-26040iLH80,YH81..EUR198508-198708

9017905095

main90179-05095

9017910125

main90179-10125

9165140816

main91651-40816

9166141020

main91661-41020

9321964020

main93219-64020

18 parts on this diagram · 1 diagram in section
