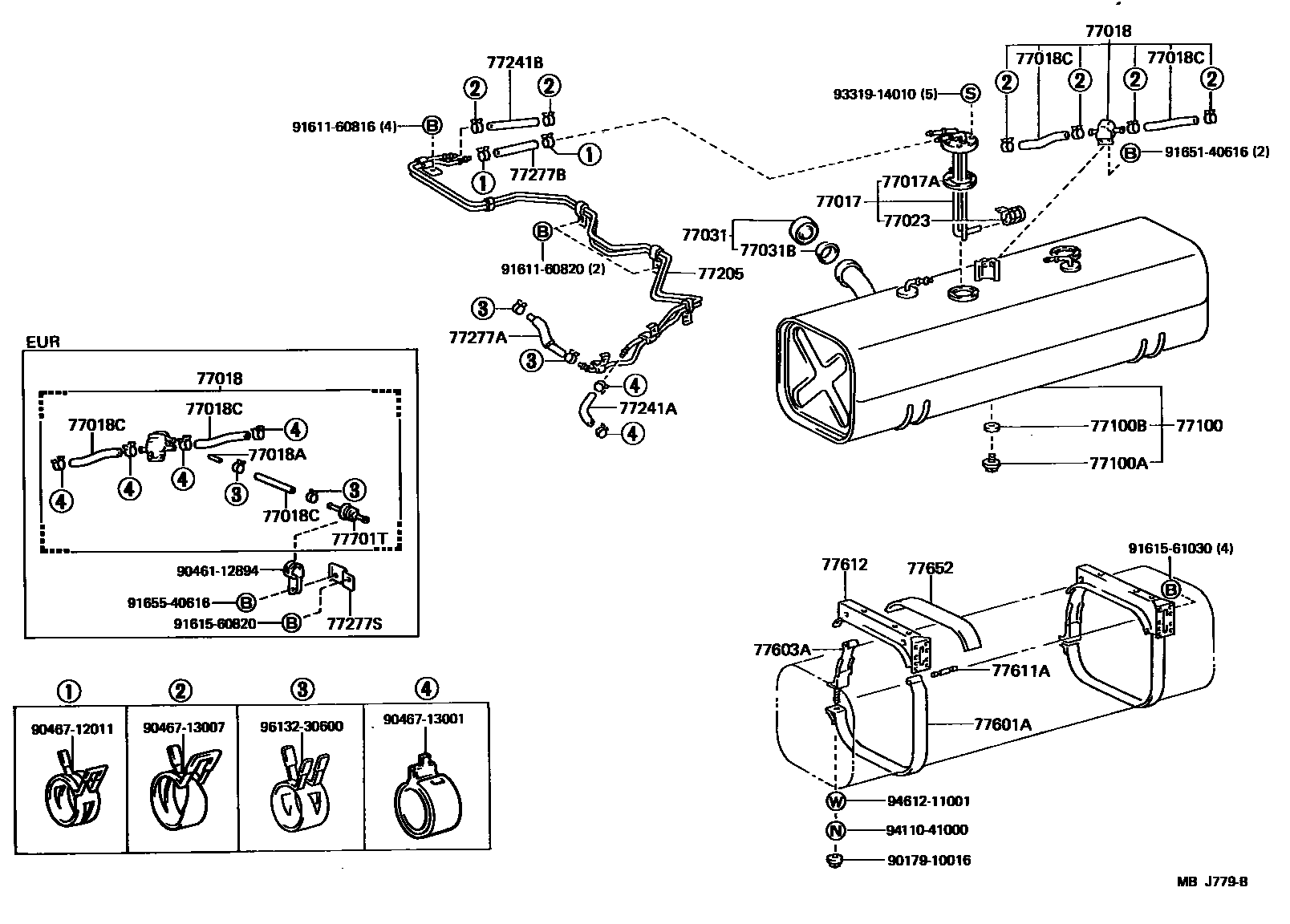

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26110iYH8#¥4,700198508-198708

main77017-26120iLH80¥4,230198508-198708

sub77017-26121¥4,780

77017AGASKET, FUEL TANK VENT

main77169-14020iLH80,YH8#¥330198508-198708

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iLH80,YH80..ARL,GEN¥2,620198508-198708

main77018-26130iYH81..ARL¥3,710198508-198708

main77018-26140iLH80,YH81..EUR¥3,710198508-198708

sub77018-37140¥2,830

77018AORIFICE, FUEL VAPOUR

main90977-02001iLH80,YH81..EUR¥300198508-198708

77018CHOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)

main95332-06030iLH80,YH81..EUR¥590198508-198708

L=300

sub95333-06030¥580

main95332-06040iYH81..ARL¥760198508-198708

L=400(*H,L=380)

sub95333-06040¥730

main95332-08020iLH80,YH81..EUR¥460198508-198708

L=200(*H,L=160)

sub95333-08020¥320

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYH8#¥1,020198508-198708

main77023-32010iLH80¥900198508-198708

77031CAP ASSY, FUEL TANK

main77310-55080iLH80¥2,320198508-198708

sub77310-60100¥1,530

main77310-60051iYH8#¥1,680198508-198708

sub77310-60090¥1,110

77031BGASKET (FOR FUEL TANK CAP)

main77316-27010iLH80,YH8#¥670198508-198708

77100TANK ASSY, FUEL

main77001-26290iYH8#..EUR,GEN¥40,200198508-198708

main77001-26300iLH80..TW¥48,200198508-198708

main77001-26310iYH81..ARL..IV¥40,200198508-198708

sub77001-26530¥42,100

main77001-26320iYH81..ARL..CBU198508-198708

77100APLUG(FOR FUEL TANK)

main90105-12116iLH80,YH8#¥110198508-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH80,YH8#¥160198508-198708

77205TUBE SUB-ASSY, FUEL MAIN

main77205-26010iLH80..T3..(ARL,GEN)¥10,800198508-198708

sub77205-26040¥11,600

main77205-26030iLH80..TW..GEN¥10,600198508-198708

sub77205-26070¥11,300

main77205-26040iLH80..T3..EUR¥11,600198508-198708

main77205-26050iYH8#..EUR,GEN¥6,200198508-198708

main77205-26060iYH81..ARL¥7,800198508-198708

sub77205-25170¥4,330

main77205-26070iLH80..TW..EUR¥11,300198508-198708

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77259-26030iYH8#¥1,060198508-198708

main95332-08030iLH80..TW¥480198508-198708

L=300(*H,L=240)

sub95333-08030¥660

main95332-08030iLH80..TW¥480198508-198708

L=300

sub95333-08030¥660

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iYH8#¥350198508-198604

L=200(*H,L=140)

sub95333-06020¥480

main95332-08020iLH80¥460198508-198708

L=200(*H,L=150)

sub95333-08020¥320

main95333-06014iYH8#¥500198604-198708

L=200(*H,L=140)

sub95333-06020¥480

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-11004iYH8#¥1,120198508-198708

L=280

main90447-12018iLH80¥880198508-198708

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iYH8#¥520198508-198701

L=200(*H,L=140)

sub95333-04020¥510

main95332-06020iLH80¥350198508-198604

L=200(*H,L=140)

sub95333-06020¥480

main95333-04014iYH8#¥520198701-198708

L=200(*H,L=140)

sub95333-04020¥510

main95333-06014iLH80¥500198604-198708

L=200(*H,L=140)

sub95333-06020¥480

77277SBRACKET, FUEL HOSE

main77277-26010iLH80,YH81..EUR¥740198508-198708

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26050iLH80,YH8#¥2,060198508-198708

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-28010iLH80,YH8#¥2,160198508-198708

77611APIN (FOR FUEL TANK BAND)

main77629-25010iLH80,YH8#¥280198508-198708

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011iLH80,YH8#¥5,500198508-198708

sub77501-25091¥3,490

77652CUSHION, FUEL TANK, NO.1

main77651-26040iLH80,YH8#¥480198508-198708

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iLH80,YH81..EUR¥900198508-198708

9017910016

main90179-10016¥130

9046112894

main90461-12894¥930

9046712011

main90467-12011¥180

9046713001

main90467-13001¥230

9046713007

main90467-13007¥180

9161160816

main91611-60816¥230

9161160820

main91611-60820¥200

9161560820

main91615-60820¥140

9161561030

main91615-61030¥180

9165140616

main91651-40616¥60

9165540616

main91655-40616¥120

9331914010

main93319-14010¥70

9411041000

main94110-41000¥160

9461211001

main94612-11001¥60

9613230600

main96132-30600¥200

38 parts on this diagram · 3 diagrams in section
